Technoton MasterCAN DAC15 Operation Manual

J1939 i/o modules
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
J1939 I/O MODULES
MasterCAN DAC15
MasterCAN DAC2113
OPERATION MANUAL
Version 2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MasterCAN DAC15 and is the answer not in the manual?

Questions and answers

Related Manuals for Technoton MasterCAN DAC15

Summary of Contents for Technoton MasterCAN DAC15

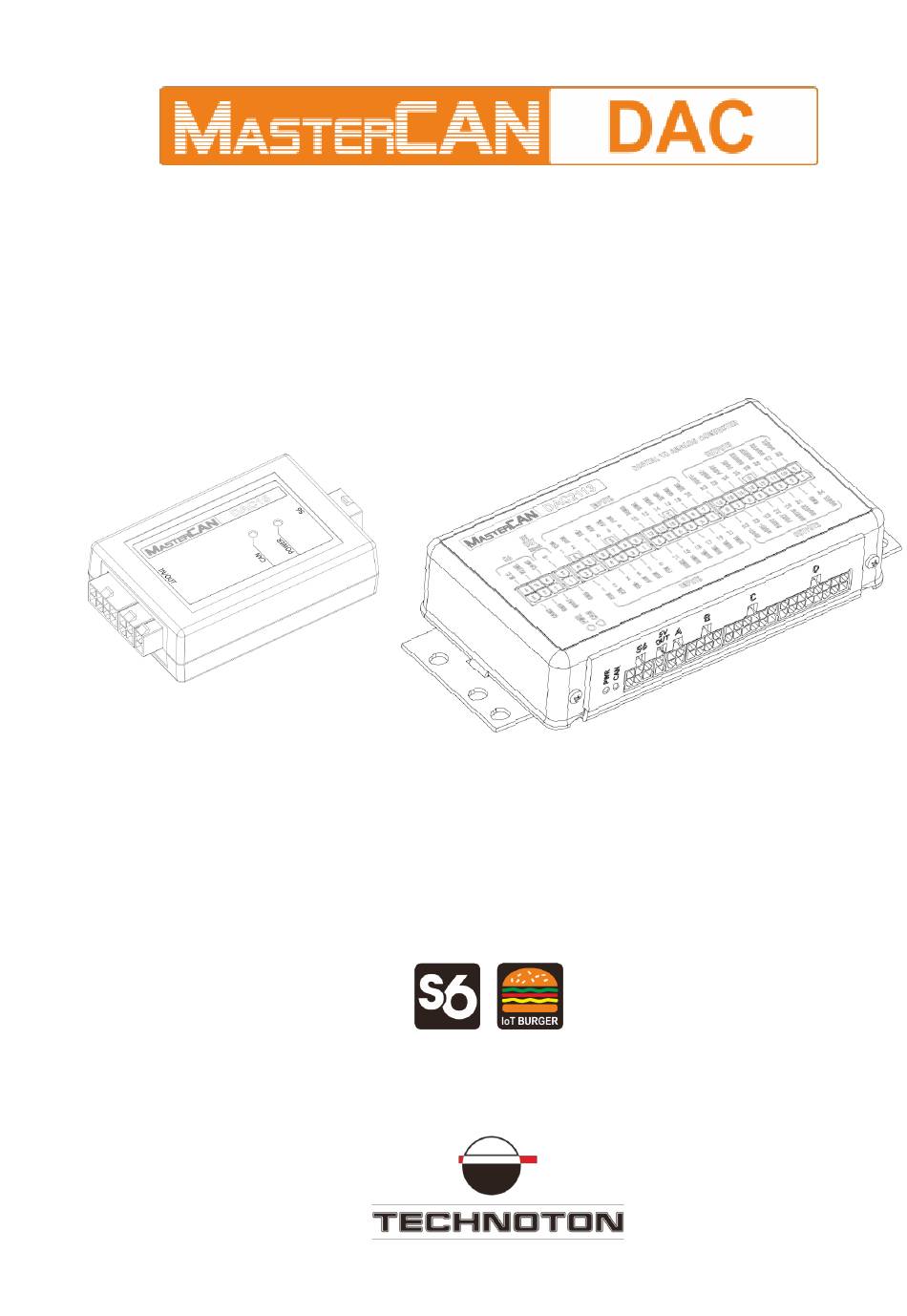

  • Page 1 J1939 I/O MODULES MasterCAN DAC15 MasterCAN DAC2113 OPERATION MANUAL Version 2.0...

  • Page 2: Table Of Contents

    A.7 Events registrator FM ..................60 Annex B Channels for configuration of MasterCAN DAC2113 .......... 61 Annex C Connection diagrams for discrete output D2+ of MasterCAN DAC15 ....63 MasterCAN DAC J1939 i/o modules. Operation manual. Version 2.0 © Technoton, 2018...

  • Page 3: Revision History

    12.2018 • The new model of MasterCAN DAC2113 J1939 i/o module is added. • Changes in MasterCAN DAC15 delivery set are reflected. • A new functional feature of MasterCAN DAC15 added (conversion of SPN into pulse signal). • The document terminology is updated...

  • Page 4: Structure Of External Links

    Document Center Part S6 Data Base S6 Website Part S6 Functional modules Page DUT-E Page DFM Page Crocodile Page FMSCrocodile JV Technoton Website Page GNOM Page MasterCAN DAC Part Software/Firmware Part Technical support Technoton Engineering Website YouTube Technoton ORF 4 Website MasterCAN DAC J1939 i/o modules.

  • Page 5: Terms And Definitions

    When the Event occurs, a terminal unit registers the time of occurrence, which is later mentioned in a report on the event. Thus, the Event is always attached to exact time and place of occurrence. MasterCAN DAC J1939 i/o modules. Operation manual. Version 2.0 © Technoton, 2018...
  • Page 6 Uses input/output PGNs and settings PGNs. Unit is an element of vehicle on-board equipment compatible with S6 bus, which uses S6 Technology. MasterCAN DAC J1939 i/o modules. Operation manual. Version 2.0 © Technoton, 2018...

  • Page 7: Introduction

    DAC), model code: 01 (for MasterCAN DAC15), 03 (for MasterCAN DAC2113), developed and manufactured by Technoton, Minsk, Belarus. Model code of MasterCAN DAC is defined by first two digits of serial number, which is printed on nameplate placed in the lower part of back cover or printed on package label: This document contains information on the design, principle of operation, specifications, recommendations on connection, configuration and operation of MasterCAN DAC.
  • Page 8 Introduction MasterCAN DAC equipmet includes the following models: 1) MasterCAN DAC15 — the converter of signals with base functionality for trucks and buses which has: • CAN j1939/S6 configurable digital interface; • One adjustable signal input for analog voltage/frequency; • Five adjustable signal outputs: - analog voltage/frequency/pulse;...

  • Page 9: General Information And Technical Specifications

    CAN j1939/S6 digital interface is used alongside with analog On-board equipment. Figure 1 – Example of MasterCAN DAC15 employment for conversion of CAN-bus data into analog signals MasterCAN DAC J1939 i/o modules. Operation manual. Version 2.0 © Technoton, 2018...
  • Page 10 Figure 2 – Example of MasterCAN DAC15 employment for conversion of CAN j1939/S6 Telematics interface data into analog signals Figure 3 – Example of MasterCAN DAC15 employment for conversion of an analog signal into CAN j1939/S6 Telematics interface MasterCAN DAC J1939 i/o modules. Operation manual. Version 2.0...
  • Page 11 Vehicle tank on the analog dashboard. (see figure 2). MasterCAN DAC15 is convenient to use for conversion of an analog signal from GNOM axle level sensors into CAN j1939/S6 Telematics interface (see figure 3).

  • Page 12: Delivery Set

    - 1 pc.; h) wire - 17 pcs.; S6 CW plug* - 2 pcs. Figure 5 — MasterCAN DAC15 delivery set * Contains the 120 Ohms inbuilt terminal resistor. MasterCAN DAC J1939 i/o modules. Operation manual. Version 2.0 © Technoton, 2018...
  • Page 13 - 4 pcs.; o) S6 cable - 1 pc.; p) wire - 42 pcs. Figure 6 — MasterCAN 2113 delivery set * Contains the 120 Ohms inbuilt terminal resistor. MasterCAN DAC J1939 i/o modules. Operation manual. Version 2.0 © Technoton, 2018...

  • Page 14: Exterior View And Structure

    – red CAN LED indicator for data transmission via CAN j1939/S6 interface; – green POWER LED indicator to indicate the power supply in the onboard circuit. Figure 5 — MasterCAN DAC15 exterior view and design MasterCAN DAC J1939 i/o modules. Operation manual. Version 2.0 © Technoton, 2018...
  • Page 15 – C connector (discrete inputs (12 pcs.)); 10 – D connector (discrete (7 pcs.)/frequency (2 pcs.)/current (1 pc.)/ resistive (1 pc.)/analog voltage (2 pcs.) outputs). Figure 8 — MasterCAN DAC2113 exterior view and design MasterCAN DAC J1939 i/o modules. Operation manual. Version 2.0 © Technoton, 2018...

  • Page 16: Principles And Modes Of Operation

    (SPN) which it transmits in generated messages (PGN) into CAN/S6 Telematics interface. 3) Combined mode. MasterCAN DAC can simultaneously operate in Digital-analog gateway and Analog signal collector-converter modes. MasterCAN DAC J1939 i/o modules. Operation manual. Version 2.0 © Technoton, 2018...

  • Page 17: Technical Specifications

    Ambient operation temperature range, C -40…+85 Ingress protection rating IP40 Overall dimensions, mm, not more than figure 9 figure 10 Weight, kg, not more than 0.08 0.32 MasterCAN DAC J1939 i/o modules. Operation manual. Version 2.0 © Technoton, 2018...

  • Page 18: Can J1939/S6 Digital Interface Specifications And Protocols

    Configuration of MasterCAN DAC connection options via S6 Technology, as well as selection of necessary is performed via K-Line interface (ISO 14230) using Servicse S6 MasterCAN software (can be downloaded from https://www.jv-technoton.com, Software/Firmware). MasterCAN DAC receives/transmits data automatically (default mode) or on request.

  • Page 19: Analog Signals Specifications

    General information and technical specifications / Technical specifications / Analogue signals specifications 1.5.3 Analog signals specifications 1) Analog signals of MasterCAN DAC15 Table 2 — Specifications of signals for MasterCAN DAC15 analog inputs Signal type, measurement units Value Voltage, V 0.5…9...
  • Page 20 The selection of the required type of analog input/output signals and configuration of their values conversion into SPN is performed using Service S6 MasterCAN service software (the current version can be downloaded at https://www.jv-technoton.com, Software/Firmware). MasterCAN DAC J1939 i/o modules. Operation manual. Version 2.0...

  • Page 21: Overall Dimensions

    General information and technical specifications / Technical specifications / Overall dimensions 1.5.4 Overall dimensions Figure 9 — MasterCAN DAC15 overall dimensions Figure 10 — MasterCAN DAC2113 overall dimensions MasterCAN DAC J1939 i/o modules. Operation manual. Version 2.0 © Technoton, 2018...

  • Page 22: Mastercan Dac Connection

    Contact the supplier if any defects are detected. MasterCAN DAC J1939 i/o modules. Operation manual. Version 2.0 © Technoton, 2018...

  • Page 23: Operational Restrictions

    (e.g. the climate control system). We also do not recommend to install MasterCAN DAC close to the vehicle power electric circuits. A suitable location to mount MasterCAN DAC is inside driver’s cabin. MasterCAN DAC J1939 i/o modules. Operation manual. Version 2.0 © Technoton, 2018...

  • Page 24: Power Supply Connection

    (see figure 11). Figure 11 — Terminals 1) Power supply for MasterCAN DAC15 is connected according to the designation of contacts of POWER connector and the colour of wires, in accordance with table 6. During the operation of MasterCAN DAC15 using Technology, its the power supply is provided through S6 connector (see 2.4).

  • Page 25: Connection Using S6 Technology

    ISO 14230 Standard * To provide power supply for CANCrocodile (only in case of CANCrocodile connection to MasterCAN DAC15). ** For MasterCAN DAC configuration and firmware update. ATTENTION: 1) To ensure correct data transmission via CAN (J1939) communication line in case...

  • Page 26: Connecting Analog Input

    1) MasterCAN DAC15 analog input is connected to signal wires of analog voltage/frequency in compliance with the designation of contacts of IN/OUT connector and the colour of the wires (see table 9). Table 9 — Connection of MasterCAN DAC15 analog inputs (IN/OUT connector) Connector Connector Wire...
  • Page 27 DinH Violet DinH We recommend to purchase and use connectors to connect MasterCAN DAC to the corresponding wires of the vehicle (see figure 13). Figure 13 — Connectors MasterCAN DAC J1939 i/o modules. Operation manual. Version 2.0 © Technoton, 2018...

  • Page 28: Connecting Analog Outputs

    (see table 11); • Current/discrete/resistive signal wires, in compliance with the colour of the wires and the designation of contacts of OUT connector (see table 12). Table 11 — Connection of MasterCAN DAC15 analog output (IN/OUT connector) Connector Connector Wire...
  • Page 29 DoutH DoutH Fout Frequency Yellow output 1.5.3 Fout (table 5) Aout Analog Green output Aout Rout- Brown Resistive output Rout+ White Iout- Brown Current output Iout+ Pink MasterCAN DAC J1939 i/o modules. Operation manual. Version 2.0 © Technoton, 2018...

  • Page 30: Connection Scheme Examples

    Figure 15 — Connecting MasterCAN DAC15 for CAN j1939/S6 Telematics interface data conversion to analog inputs of Telematics terminal MasterCAN DAC J1939 i/o modules. Operation manual. Version 2.0...
  • Page 31 DUT-E CAN fuel level sensor data conversion to analog inputs of dashboard* Figure 17 — Connection of MasterCAN DAC15 to convert the analog output signal of GNOM DDE axle load sensor into CAN/S6-input of the Telematics terminal * MAZ 8099 electromechanical automobile dashboard is taken as an example, with the...
  • Page 32 MasterCAN DAC connection / Connection scheme examples Figure 18 — Connection of MasterCAN DAC15 to convert: 1) data of CAN j1939/S6 Telematics interface and DUT-E CAN fuel level sensor into analog inputs of the dashboard*. the analog signal of GNOM DDE axle load sensor into CAN j1939/S6-input of the Telematics terminal.
  • Page 33 It is allowed to connect dashboards of any models that have inputs which correspond to specifications of MasterCAN DAC2113 output signals (see 1.5.3). MasterCAN DAC J1939 i/o modules. Operation manual. Version 2.0 © Technoton, 2018...

  • Page 34: Mastercan Dac15 Configuration

    CAN j1939/S6 Telematics interface. This address is also used during the Unit configuration using K-line interface. For MasterCAN DAC15 it is allowed to use the addresses 126 or 146 (126 by default), while for MasterCAN DAC2113 — 127 or 147 (127 by default).
  • Page 35 MasterCAN DAC configuration / Configuration of connection via CAN j1939/S6 interface Figure 20 — Configuration of MasterCAN DAC connection parameters using CAN j1939/S6 interface MasterCAN DAC J1939 i/o modules. Operation manual. Version 2.0 © Technoton, 2018...

  • Page 36: Functional Modules Configuration

    SPN list of Functional modules of MasterCAN DAC, which can be configured and/or seen in the software can be found annex MasterCAN DAC J1939 i/o modules. Operation manual. Version 2.0 © Technoton, 2018...

  • Page 37: Serviceability Check

    1) Transmit request to receive PGN (in digital-analog gateway mode) 2) Transmit PGN as response to request (in analog signal collector-converter mode) Connection error Normal functioning of connected No signal CAN j1939/S6 interface MasterCAN DAC J1939 i/o modules. Operation manual. Version 2.0 © Technoton, 2018...

  • Page 38: Analog Signal Converter Of The Vehicle Standard Fuel Level Sensor

    Vehicle performance using the only CAN input of the terminal without using expensive additional equipment (e.g. fuel level sensors and fuel flow meters) (see figure 21). Figure 21 — Using MasterCAN DAC15 for conversion of an analog signal from the Vehicle standard fuel level sensor into CAN j1939/S6 Telematics interface MasterCAN DAC J1939 i/o modules.
  • Page 39 CAN j1939/S6 digital interface (connector S6) of MasterCAN DAC15 to CAN j1939/S6 Telematics interface (see 2.5). 2) Using S6 SK service adapter connect MasterCAN DAC15 to the PC. Establish a communication session between the Unit and PC in Service S6 MasterCAN service software...

  • Page 40: Packaging

    Quality Control stamp and QR code is placed on two sides of the MasterCAN DAC15 box (see figure 23). a) MasterCAN DAC15 b) MasterCAN DAC2113 Figure 23 — Packaging label Note — label design and contents can be modified by the manufacturer.

  • Page 41: Storage

    Do not store MasterCAN DAC in the same room with substances that cause metal corrosion and/or contain aggressive impurities. MasterCAN DAC shelf life must not exceed 12 months. MasterCAN DAC J1939 i/o modules. Operation manual. Version 2.0 © Technoton, 2018...

  • Page 42: Transportation

    When transporting by air, MasterCAN DAC must be stored in heated pressurized compartments. Air environment in transportation compartments should not contain acid, alkaline and other aggressive impurities. Shipping containers with packed MasterCAN DAC should be sealed. MasterCAN DAC J1939 i/o modules. Operation manual. Version 2.0 © Technoton, 2018...

  • Page 43: Utilization/Re-Cycling

    MasterCAN DAC does not contain precious metals in amount that should be recorded. MasterCAN DAC J1939 i/o modules. Operation manual. Version 2.0 © Technoton, 2018...

  • Page 44: Contacts

    Contacts Contacts Manufacturer Tel/Fax: +375 17 240-39-73 https://www.jv-technoton.com/ http://s6.jv-technoton.com/ E-mail: marketing@technoton.by Technical support E-mail: support@technoton.by MasterCAN DAC J1939 i/o modules. Operation manual. Version 2.0 © Technoton, 2018...

  • Page 45: Annex A Spn Of Mastercan Dac Functional Modules

    On the fact Serial number is a set of numbers that is used for identification of specific Unit. Serial number MasterCAN DAC15 has the following format: AABBB C DDDDD, where: AA – code of MasterCAN model; BBB – digits that reflect changes product changes;...
  • Page 46 Network MasterCAN DAC address at CAN j1939/S6 Telematics (SA) interface. Network address value can be selected by user in range: 126 or 146 (for MasterCAN DAC15) and 127 or 147 (for MasterCAN DAC2113). Unit work counters PGN 62994 521116 Unit hours of...

  • Page 47: Digital-To-Analog Gate Dac15 Fm

    (voltage, frequency, pulse, current, discrete, resistive) and transmit them to the respective Unit outputs. * This FM is created only for MasterCAN DAC15 model. Figure A.2 — Window of settings of Digital-to-analog gate DAC15 FM in Service S6 MasterCAN software Figure A.3 —...
  • Page 48 PGN request 0…4294970000 Specifying period for requesting PGN from CAN j1939/S6 period Telematics interface (CAN bus). If PGN is sent automatically, period is not needed, select 0 ms. MasterCAN DAC J1939 i/o modules. Operation manual. Version 2.0 © Technoton, 2018...
  • Page 49 SPN values in correspondence with calibration table. Outputs settings (PGN 63092) (contact group O4, see 2.6) 521352 Output 0…255 Choosing Unit’s contact group O4 of discrete physical number output. MasterCAN DAC J1939 i/o modules. Operation manual. Version 2.0 © Technoton, 2018...
  • Page 50 0…4294970000 Specifying period for requesting PGN from CAN j1939/S6 period Telematics interface (CAN bus). If PGN is sent automatically, no request is required, select a period of 0 ms. MasterCAN DAC J1939 i/o modules. Operation manual. Version 2.0 © Technoton, 2018...
  • Page 51 Software depicts a chart of output resistive signal dependence on SPN values in correspondence with calibration table. * Factory values may differ from those provided in this table. MasterCAN DAC J1939 i/o modules. Operation manual. Version 2.0 © Technoton, 2018...

  • Page 52: Collector Dac15 Fm

    CAN j1939/S6 Telematics interface. * This FM is created only for MasterCAN DAC15 model. Figure A.4 — Window of settings of Collector DAC15 FM in Service S6 MasterCAN software Table A.3 — Collector DAC15 FM.
  • Page 53 Software depicts a chart of output analog signal dependence on SPN values in correspondence with calibration table. * Factory values may differ from those provided in this table. MasterCAN DAC J1939 i/o modules. Operation manual. Version 2.0 © Technoton, 2018...

  • Page 54: Onboard Clock Fm

    * By default, time is set in UTC format (Coordinated Universal Time standard) and displayed according to local displacement. Present time is available for user for editing manually or synchronizing of date/time with computer clock. MasterCAN DAC J1939 i/o modules. Operation manual. Version 2.0 © Technoton, 2018...

  • Page 55: Vehicle Power Supply Fm

    ** Preparation for release. Figure A.6 — Operation modes on onboard network (ON) voltage level Figure A.7 — Window of settings of Vehicle power supply FM in Service S6 MasterCAN software MasterCAN DAC J1939 i/o modules. Operation manual. Version 2.0 © Technoton, 2018...
  • Page 56 Counter of total operating time of Vehicle’s engine since hours of sensor installation to the Vehicle. User cannot reset the operation value of this counter*. * Counter can be reset by the Manufacturer of RSC. MasterCAN DAC J1939 i/o modules. Operation manual. Version 2.0 © Technoton, 2018...

  • Page 57: Analog Gateway Fm

    - channels numbered from 1 to 21 are physical inputs (designated - channels numbered from 22 to 34 are physical outputs (designated 2) Input/output connector and numbers of contacts for electrical connection. MasterCAN DAC J1939 i/o modules. Operation manual. Version 2.0 © Technoton, 2018...
  • Page 58 This setting enables to exclude any dependence of MasterCAN voltage supported DAC2113 input analog signal on the voltage fluctuations in dependence the Vehicle circuit. This setting is available only for input analog channels (UinA). MasterCAN DAC J1939 i/o modules. Operation manual. Version 2.0 © Technoton, 2018...
  • Page 59 You may enter 10 calibration points at a maximum. The software displays the diagram of dependence of the output signal on SPN values, in accordance with the calibration table. MasterCAN DAC J1939 i/o modules. Operation manual. Version 2.0 © Technoton, 2018...

  • Page 60: Events Registrator Fm

    The user may clear the list of informative Events. Detailed description of SPN, composition and contents of FM MasterCAN DAC provided at https://www.jv-technoton.com/ (for access to S6 Database you need to get registered). MasterCAN DAC J1939 i/o modules. Operation manual. Version 2.0 © Technoton, 2018...

  • Page 61: Annex B Channels For Configuration Of Mastercan Dac2113

    ≤0.5 A, U =48 V max_load Output current (load on GND), working range (4…20) mA, Current Output (4…20 mA) IoutA Working range R =1.5 kOhm, load_max =40 V MasterCAN DAC J1939 i/o modules. Operation manual. Version 2.0 © Technoton, 2018...
  • Page 62 8 V, R =3.3 kOhm Working range (10 Hz…10 kHz), conversion Frequency Output (10...10 kHz, U FoutD error no more than 5 %, amplitude (0.8…1) U =3.3 kOhm MasterCAN DAC J1939 i/o modules. Operation manual. Version 2.0 © Technoton, 2018...

  • Page 63: Annex C Connection Diagrams For Discrete Output D2+ Of Mastercan Dac15

    Annex C Connection diagrams for discrete output D2+ of MasterCAN DAC15 Annex C Connection diagrams for discrete output D2+ of MasterCAN DAC15 Discrete output D2+ is an inverted output. In case of using this output as signal output, the high voltage level is 10V (see figure C.1).
