  • Page 1 OWNER'S MANUAL...

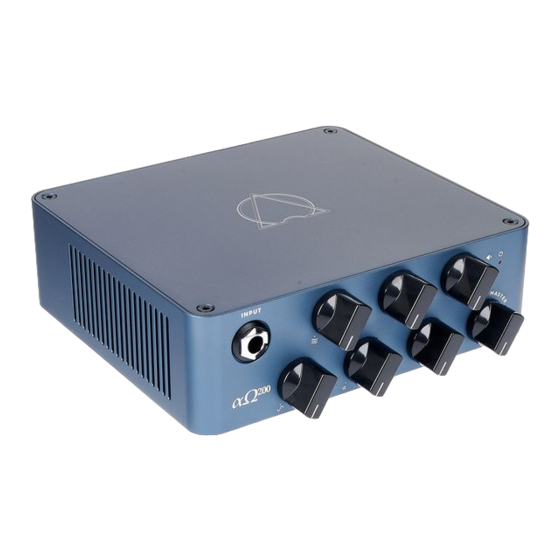

  • Page 2 Alpha • Omega 200 Front Panel Features INPUT : Use this jack to connect your instrument via a standard ¼” mono cable. ALPHA•OMEGA: The Alpha • Omega Engine is fully operational amplifier based and has two distinct distortion circuits (Alpha and Omega) which can be selected or blended using our Mod knob.
  • Page 3 BLEND : Use this knob to mix between the Clean signal and the Distortion signal (Alpha • Omega Engine). BASS : +-12dB at 80Hz. Use this knob to change the low-end content of the signal. MIDS: +-12dB at 1kHz. This knob controls the mid content of the signal.
  • Page 4 GROUND LIFT : Use this control to lift the ground of the DI XLR output. If you are experiencing ground noise in your DI signal try changing the setting of this control. DI OUTPUT: Use this connector to send your bypass signal to the console, mic preamp, interface, etc.
  • Page 5 Warning · There are no user-serviceable parts inside the amplifier. Do not open the amp. · Never use the amp in a high moisture environment or near liquids. · The Alpha • Omega 200 can deliver more than 100 dB of power.
  • Page 6 Specifications Input Impedance: 2.2MΩ Load Impedance: 3Ω Minimum Aux In Input Impedance: 10kΩ Power Output: 200 W RMS @ 4Ω @ 1 % THD+N, 1 kHz sine 100 W RMS @ 8Ω @ 1 % THD+N, 1 kHz sine Maximum Power Consumption: approx. 250VA AC Input Power: 100-120/210-250 VAC Cycles: 50/60 Hz Dimensions Unpacked: Width 150 mm (5.9 in) Height 52...
  • Page 7 You are responsible for all shipping charges. The unit must be shipped to us freight prepaid. We will return the unit freight collect. Darkglass Electronics Oy is not responsible for shipping damage either to or from our service center. Claims must be filed with the carrier.
