Safco Poise 6302 Assembly Instructions

an LDI Company
New Hope, MN 55428
Visit us on the web:
www.safcoproducts.com
PRODUCT WARRANTY REGISTRATION is available online at: www.safcoproducts.com
PARTS LIST
CODE DESCRIPTION
A
Base
B
Seat Cushion
C
Cushioned Backrest
D
Right Arm (marked "R")
E
Left Arm (marked "L")
HARDWARE PACK 6302-19BL
F
Long Screw
G
Short Screw
H
Screw Cover
H
6302-37MP: 1 of 3; Rev. 1; 2/06

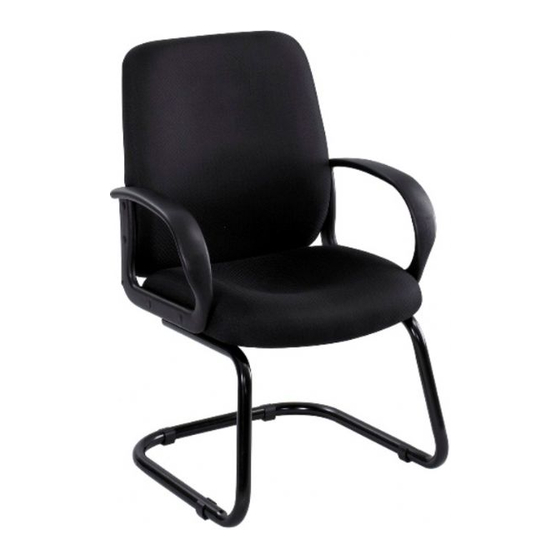

Poise™ Guest Chair
A S S E M B L A S A S A S A S S E M B L S E M B L S E M B L S E M B L Y Y Y Y Y
TOOLS REQUIRED: Phillips Screwdriver
QTY.
PART NO.
1 6302-04BL
1 6302-01§
1 6301-02§
1 6300-09BL
1 6300-08BL
4 6302-27NC
8 6300-23NC
8 6300-22BL
C
D
G
For questions or concerns, please call the
I N S T R U C T I O N S I N S T R U C T I O N S I N S T R U C T I O N S I N S T R U C T I O N S I N S T R U C T I O N S
§ Note: When corresponding about parts, be sure to state color:
Burgundy (BG), Black (BL), Charcoal (CH) or Blue (BU).
1
Place the B Seat Cushion onto the A Base and
secure with the F Long Screws
2
Mount the E Left Arm to the left side of the Seat
Cushion, using two G Short Screws and filling
the holes with two H Screw Covers. Now do the
same with the D Right Arm on the right side of
the Seat Cushion.
3
Place the C Back Rest between the Arms and
line up the holes in its sides with those in the
Arms. Secure with the G Short Screws, and
cover the Screws with the H Screw Covers.
F
Safco Consumer Hot Line
available Monday-Friday 8:00 AM to 4:30 PM (Central Time) (English-speaking operators)
E
B
A
1-800-664-0042
6302
