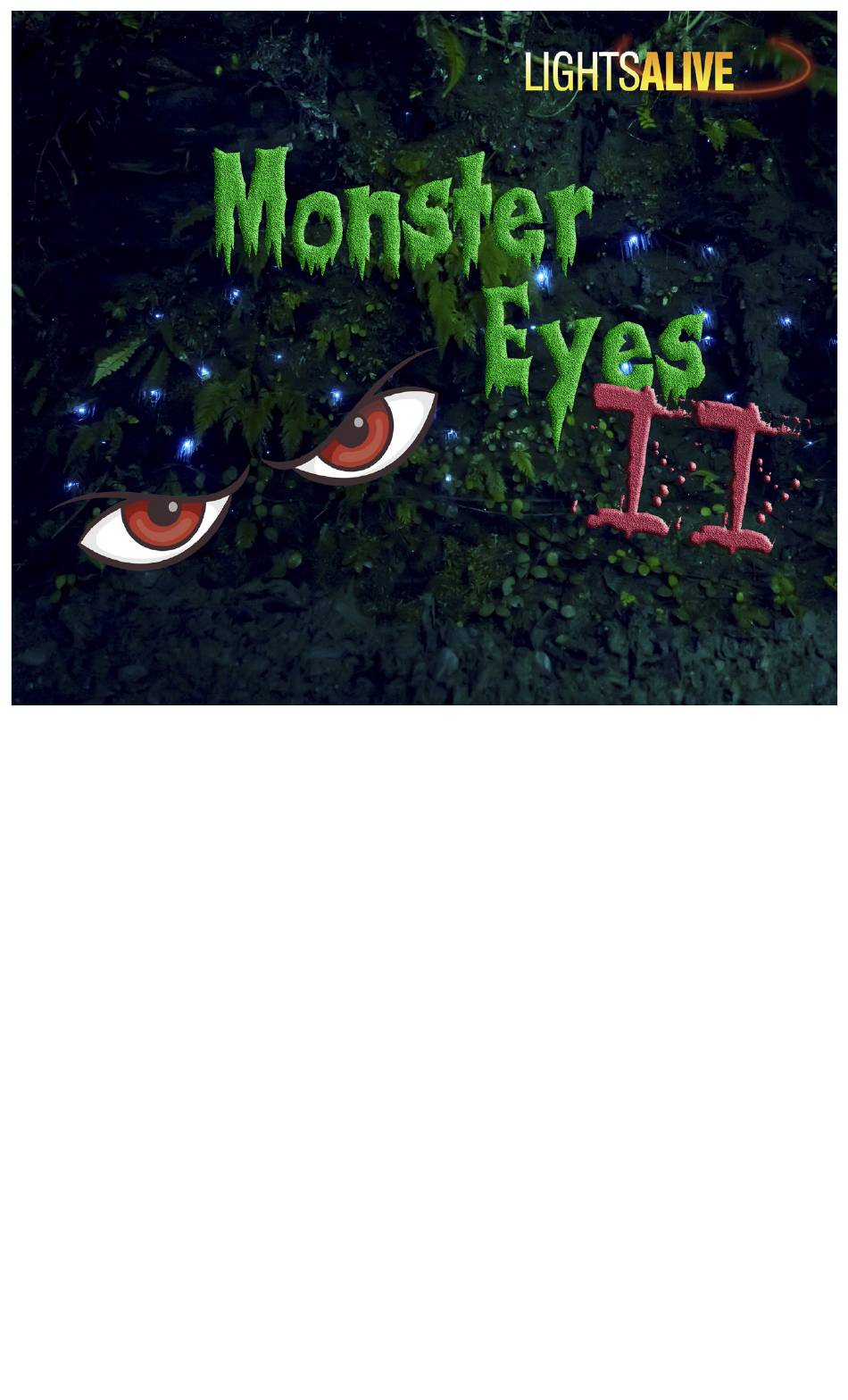

- Page 1 MonsterEyes II User Manual Lights Alive 9227 E US Highway 36 Avon IN 46123 www.lightsalive.com...
- Page 2 MonsterEyes II Quick Start Although it has many advanced features, MonsterEyes II is quite easy to set up and it is fully operational right out of the box. You will need to connect a 12 volt DC source to the power jack on the right rear side. Next, you must decide if you will be connecting passive speakers to the speaker terminals or an audio system to the RCA connectors.
- Page 3 See below for more details. POWER The green POWER indicator is on anytime appropriate power is applied to the DC power jack on the rear of MonsterEyes II STATUS The STATUS indicator will glow blue when the controller is in the normal/calm mode.
- Page 4 The TRIGGER indicator lights (red) when an external device triggers Mon- sterEyes IITM via the rear panel trigger connector. It does NOT light from the internal timer or from pressing the TEST button. MonsterEyes II Specifications EYEBALL CHANNELS 16 Independent channels (4 channels per cat-6 cable) Up to 125 mA per channel ENCLOSURE 5.25”...
- Page 5 REAR PANEL CONNECTORS 2.1mm DC power jack, 4x RJ-45 eyeball outputs, speaker spring connectors, trigger screw terminal. MonsterEyes II Q: Can MonsterEyes II be used in mobile applications like a car, truck or tractor? A: Absolutely. MonsterEyes II is designed for a nominal 12vdc, 5 amp power supply.
- Page 6 (16) channels. The exact number is dependent upon the type and power requirements of the eyeball LEDs used, but the number is huge. You may use up to five (5) pairs of Lights Alive brand eyeballs per channel. Q: Can I use my own LEDS? A: Sure.
- Page 7 is extremely important for proper operation. Simply split, then strip the wire as shown in the illustration. Make sure to twist each wire as tightly as you can with your fingers. Split wire 5/8” and strip 1/4” in- sulation for both eyeball boards and iSocket boards.
- Page 8 If you don’t have something appropriate, a ballpoint pen will do the trick. Press hard on the release and the wire should come out relatively easily. All contents Copyright © Lights Alive 2021. All Rights Reserved. 82821...
