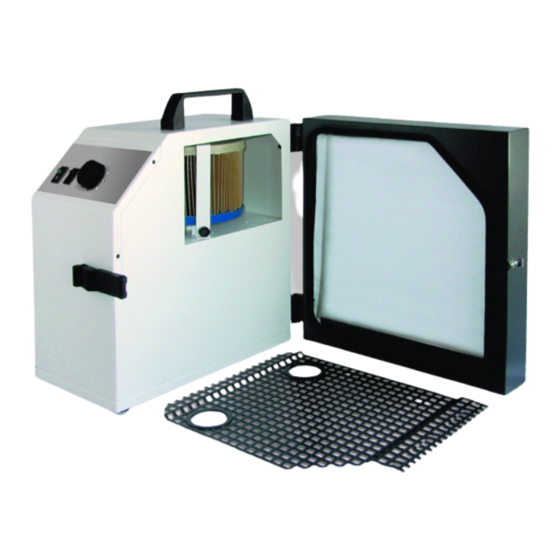

- Page 1 V4000 Portable Suction Unit Operating instructions 03-2018 www.zubler.de...
-
Page 3: Table Of Contents
Content Introduction Page 0.1 Declaration of conformity 0.2 General hints 0.3 Regular usage 0.4 Environment 0.5 Setting up Functions Page 1.1 Front panel 1.2 Starting the unit 1.3 Operation Adjustments Page 2.1 Sensitivity settings 2.2 Sensitivity adjustment 2.3 KaVo K-Control Filter change Page 3.1 Replacing the filter bag... -
Page 4: Declaration Of Conformity
Introduction Declaration of conformity Zubler GmbH Buchbrunnenweg 26 89081 Ulm-Jungingen /Germany declare that the product portable suction unit V4000 corresponds to the regulations of the following directives in regard to protective requirements 2014/30/EU EMV-Directive 2014/35/EU Low-Voltage Directive 2006/42/EG Machines Directive... -
Page 5: General Hints
The portable suction unit V4000 excels by its high suction performance and its two-stage filtering system. This filtering technology conforms with the DIN EN 60335-2-69 standard (dust class M) and provides an easy handling. -
Page 6: Environment
Environment Temperature +5°C to +40°C Air humidity max. 80% (@ 30°C) Max. load max. 1150 W Setting up The unit must not be used lying aside ■ or upside down. The exhaust, located below the ■ bottom cover, must be kept free. Do not use the unit on long haired ■... - Page 7 If your technical gear does not work ■ reliably with one of the three switch ZUBLER Gerätebau GmbH positions, an internal sensitivity Buchbrunnenweg 26 adjustment is necessary. D-89081 Ulm Tel. +49(0)731 1452-0 / www.zubler.de For sensitivity adjustment see ■ Absauganlage chapter 2. V4010 Spannung 230V Gesamtleistung max.
-
Page 8: Functions
Functions Front panel Automatic Service Filter Manual Fig. 1.1: Front panel Starting the unit 9 LED OK Switch the Automatic / Manual switch ■ 10 LED Service (11) to Manual position to use the 11 Autom. / Manual switch manual operation mode. In this mode 12 LED Filter the suction starts immediately after the suction unit is switched on. -
Page 9: Operation
Operation The green LED “OK” (9) indicates a ■ normal operation. The red LED “Service” (10) indicates ■ an electric malfunctioning (e.g. worn out carbon brushes of the motor). The red LED “Filter” (12) indicates a ■ filled up filterbag, a clogged finefilter cartridge or a clogged intake line. -
Page 10: Adjustments
2. Adjustments Sensitivity settings Plug in the power cord of the technical gear (e.g. handpiece) into the automatic socket (27) (Fig.0.2) of the suction unit. The max. load may not exceed 450W ! Use one of the three predefined sensitivity settings of the external sensi- tivity switch (25). -
Page 11: Kavo K-Control
The adjustment is performed by ■ turning rheostat B on the PC-board into the needed direction. If the suction unit does not shut off ■ although the handpiece is not actuated, the sensitivity is too high. Turn rheostat B to minus (- = CCW). If in a reversed case the suction unit ■... -
Page 12: Filter Change
Filter change Replacing the filter bag Switch off the unit with the main ■ switch (14) and open the buckle (1). Open the door (24) and remove the ■ grid (16) by pushing it upwards (I), shifting it outside (II) and pulling it downwards (III). - Page 13 Pull the gasket off the nozzle (3). Pull ■ off the adhesive foil from the gasket and close the opening with the adhesive foil. Store the filter bag immediately in a ■ dust-tight plastic bag and dispose the filter bag according to your local prescriptions.
-
Page 14: Replacing The Fine Filter
Replacing the fine filter The V4000 is additionally equipped with a fine filter cartridge. Its function is to collect fine dusts which volatilize through the main filter or are set free during the filter bag replacement. If the red LED “Filter” (12) (Fig.1.1) is still lighted although the filterbag was already replaced or if the change intervals of the filter bag get sensibly shorter, the cause is a clogged fine filter cartridge. -
Page 15: Intake System
R1200/R1250 These properties can only be achieved with an intake system especially matching the V4000 consisting of Suction funnel R1200 ■ Suction funnel R1250 (ceramics, gold) ■ Rectangular pipe R1000, R1300 ■... -
Page 16: Trouble Shooting
Trouble shooting Fehlererkennung Ursache Abhilfe Change the main LED „Filter“ illumi- Due to a filled up filter (see chapter nated filter bag and/or a "Main filter clogged fine filter change"). If the as well as a clog- indication does not ged suction line, extinguish also the minimum suc-... - Page 17 Fehlererkennung Ursache Abhilfe Check the mains Suction does not No mains supply connection. Switch start (main switch or mains switch the main switch (14) is NOT illumina- not switched on. (14) into "On" posi- ted) Fuse burnt-out tion, the main due to overchar- switch is illumina- ging.
-
Page 18: Maintenance
6. Maintenance Before cleaning and servicing the gear and also before replacing spare parts the suction unit must be separated from the mains supply ! Wipe off any outer soiling with a mere moist cloth, protect the suction unit from water penetration ! Maintenance works on electrical parts of the unit must solely be carried out by expert personnel or by persons having been trained. -
Page 19: Data
7. Data Dimensions: Fig. 7.1 Technical data: Width small / wide door 256/375 mm Height handle / mounting rail 435/415 mm Depth 400 mm Weight small / wide door 20/25 kg Tension (see number plate) 100V / 115V 230V / 240V 50-60 Hz Fusing main fuse T10 A T6,3 A... - Page 20 B00xxx / 03-2018 www.zubler.de Zubler Gerätebau GmbH Buchbrunnenweg 26 D-89081 Ulm-Jungingen...
