TRAK Airwolf 3D EVO-T Site Preparation Manual

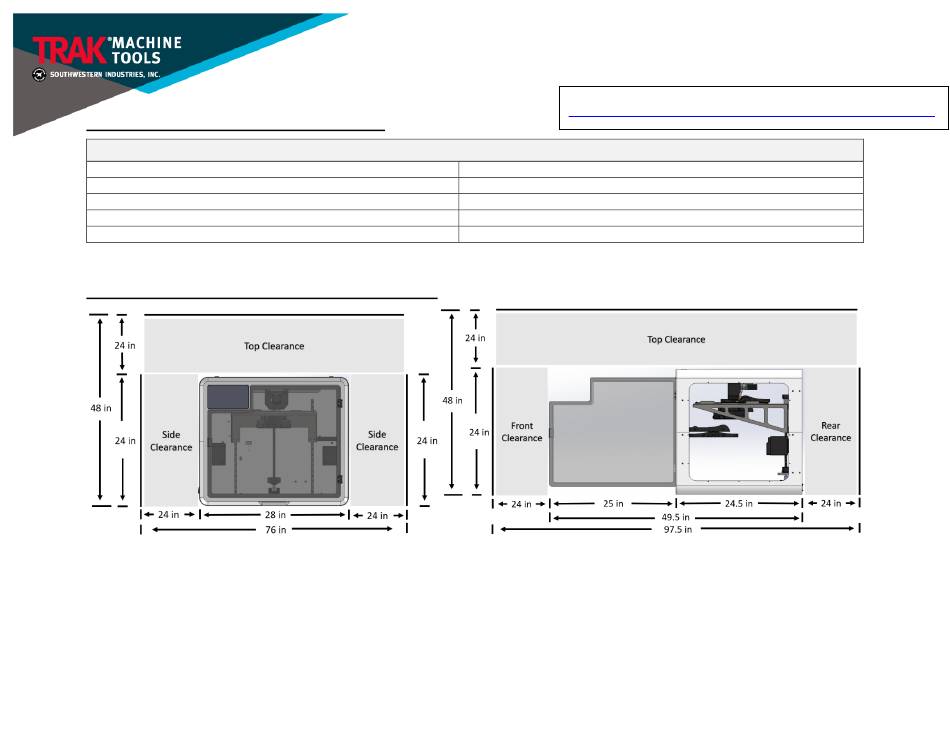

Floor Plan, Layout & Space Requirements

Printer Dimensions (with Door Closed)

Printer Dimensions (with Door Opened)

Printer Weight

Shipping Dimensions

Shipping Weight

Airwolf 3D EVO-T Additive Manufacturing Center

F-16467-57

Site Preparation Guide

Additive Manufacturing Center

Installation and Service Manual Link:

https://www.southwesternindustries.com/media/manuals/32502_manual.pdf

28" x 24.5" x 24"

28" x 49.5" x 24"

60 lbs.

48" x 42" x 35"

175 lbs.

Airwolf 3D EVO-T

Rev 10/12/2021

Table of Contents

Need help?

Do you have a question about the Airwolf 3D EVO-T and is the answer not in the manual?

Page 1 Printer Dimensions (with Door Closed) 28" x 24.5” x 24” Printer Dimensions (with Door Opened) 28" x 49.5” x 24” Printer Weight 60 lbs. Shipping Dimensions 48" x 42" x 35" Shipping Weight 175 lbs. Airwolf 3D EVO-T Additive Manufacturing Center F-16467-57 Rev 10/12/2021...
Page 2 Airwolf 3D EVO-T Additive Manufacturing Center Site Preparation Guide Electrical Requirements Power Requirements AC Input 100 – 240 VAC 4 A, 50 – 60 Hz Maximum Power Output 221 W Max. 24VDC, 9.2 A PC Requirements for Apex Requirements Windows Mac OS Mac Version 2013 or later;...
Page 3 Airwolf 3D EVO-T Additive Manufacturing Center Site Preparation Guide Lifting, Moving, Uncrating and Unpacking CAUTION! Proper equipment of sufficient capacity must be used when lifting and/or moving the printer. 1. Lifting/Moving while on a Pallet • The best option for lifting the Airwolf EVO-T 3D Printer is a pallet jack.
Page 4 Airwolf 3D EVO-T Additive Manufacturing Center Site Preparation Guide 13. Remove the two (2) zip ties around the two (2) chamber heaters inside the 3D Printer. 14. Remove both the zip ties and the white clips that are attached to the left and right belts, which are located on the upper interior surface of the 3D Printer (see image below): NOTE –...
