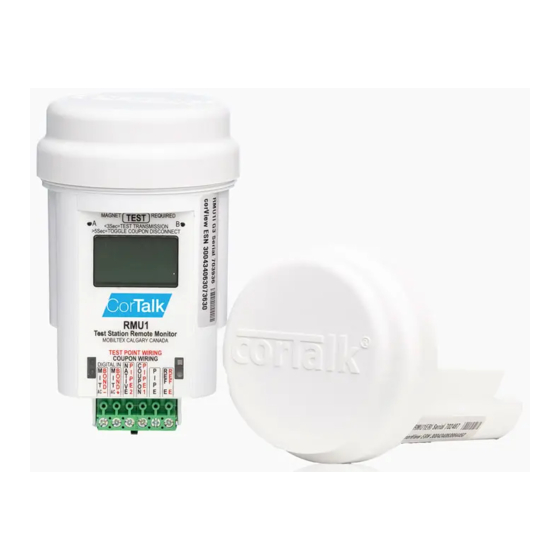

RMU1
Installation and Configuration Guide
RMU1-MAN-001, 2.01
Print Date
September 29, 2022
MOBILTEX® DATA LTD.
Calgary, Alberta
www.mobiltex.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RMU1 and is the answer not in the manual?

Questions and answers

Related Manuals for MOBILTEX RMU1

Summary of Contents for MOBILTEX RMU1

  • Page 1 RMU1 Installation and Configuration Guide RMU1-MAN-001, 2.01 Print Date September 29, 2022 MOBILTEX® DATA LTD. Calgary, Alberta www.mobiltex.com...
  • Page 2 RMU1 Installation and Configuration Guide RMU1-MAN-001, 2.01 RMU1 RMU1S/RMU1G RMU1 RMU1-LITE 2 OF 92 m o b i lt e x . c o m...
  • Page 3 The information contained in this document is subject to change without notice and should not be construed as a ® ® commitment by Mobiltex Data Ltd. unless such commitment is expressly given in a covering document. Mobiltex ® ® and CorTalk are registered trademarks of Mobiltex Data Ltd.
  • Page 4 RMU1 Installation and Configuration Guide RMU1-MAN-001, 2.01 APPROVAL START DATE DESCRIPTION PREPARED BY DATE 1.11 May 12, 2017 Added cellular information for regulatory approvals. Tony da Costa 1.12 May 25, 2017 Added RMU1PGM-BT information. Tony da Costa 1.13 Oct 4, 2017 Added test station flex information.

  • Page 5: Table Of Contents

    Accessory Installation ..........................57 5.9.1 INT1 Cap Cover ..........................57 5.9.2 INT1 Down Pipe ..........................58 Test Station Shield for RMU1 – A20100RMU11................58 5.9.3 Banana Jack Test Point Kit – A20100RMU10 ..................58 5.9.4 5.9.5 Shield Installation with Banana Jack Test Point Kit ................59 Configuration Using a PC ............................
  • Page 6 Figure 30 Interruption Detection with On/Off Flex Connections (TP40) ..............53 Figure 31 Isolated Digital Input Connection Example ....................54 Figure 32 RMU1 Segment LCD and LED Status Indicators ..................55 Figure 33 LCD Enable Magnet Location ........................56 6 OF 92...
  • Page 7 Figure 55 RMU1/2/3 Programming Interface with RMU1ADP ................. 79 Figure 56 RMU1PGM-BT USB Battery Pack Charging ..................... 80 Figure 57 RMU1PGM-BT Connected To Battery Pack and RMU1 ................81 Figure 58 iOS App Sample Screenshots ........................82 Figure 59 RMU1S (RMU1G similar) Transmitter Board Screws ................83 Figure 60 RMU1I Transmitter Board Screws ......................

  • Page 8: Introduction

    The INT1 is an accessory to the RMU1 Generation 4 (RMU1 G4) that allows for the interruption and monitoring of bonds and anode beds. It connects to the RMU1 via a short cable and fits within the 3” riser pipe with the RMU1.

  • Page 9: Figure 1 Rmu1 Communications Block Diagram

    GSM Cellular Network RMU1 Inside Email Alerts & Test Station Internet Reports Wireless Device Internet Device corView Web Support Support Readings Figure 1 RMU1 Communications Block Diagram 9 OF 92 m o b i lt e x . c o m...

  • Page 10: Rmu1 Generation 4

    1.1 RMU1 Generation 4 The RMU1 Generation 4 (RMU1 G4) is the latest generation of the RMU1. The RMU1 G4 maintains all the same features and capabilities as the earlier generations of RMU1 and is backward compatible in all respects. i.e. an RMU1 G4 can be used as a drop-in replacement for an earlier generation RMU1.

  • Page 11: Rmu1-Lite

    1.2 RMU1-LITE The RMU1-LITE is a cost-effective version of the RMU1 for use in monitoring test point potentials. The unit has the capability of measuring AC and DC potentials for a single structure against two separate reference cells. This allows for validation of reference cell operation.

  • Page 12: Figure 4 Rmu1-Lite In Standard Test Station

    RMU1 Installation and Configuration Guide RMU1-MAN-001, 2.01 Figure 4 RMU1-LITE in Standard Test Station 12 OF 92 m o b i lt e x . c o m...

  • Page 13: General Safety Information

    RMU1 Installation and Configuration Guide RMU1-MAN-001, 2.01 2 General Safety Information The following safety precautions must be reviewed to avoid injury and prevent damage to this product or any products connected to it. To avoid potential hazards, use this product only as specified. If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired.
  • Page 14 RMU1 Installation and Configuration Guide RMU1-MAN-001, 2.01 SYMBOL MEANING CAUTION Refer to Manual Protective Ground (Earth) Terminal Functional Ground Terminal AC or DC Input 14 OF 92 m o b i lt e x . c o m...

  • Page 15: Kit Contents

    • Mobiltex P/N A20A00RMU10 • Can only send messages to CorView, does not receive them (Simplex) • 1 pc – ½” #6-32 screw comes pre-attached to a mating nut in the RMU1 unit • Typically installed inside a test station RMU1S Kit (pre-installed unit) with Standard Test Station •...

  • Page 16: Rmu1I (Iridium Sbd Satellite) Unit And Kits

    RMU1I remote monitoring unit • Mobiltex P/N A20A00RMU11 • 1 pc – ½” #6-32 screw comes pre-attached to a mating nut in the RMU1 unit • Typically installed inside a test station. RMU1I Kit (pre-installed unit) with Standard Test Station •...

  • Page 17: Rmu1G (Lte Cellular Us/Canada/Mexico) Unit And Kits

    RMU1G remote monitoring unit • Mobiltex P/N A20A00RMU12 • 1 pc – ½” #6-32 screw comes pre-attached to a mating nut in the RMU1 unit • Typically installed inside a test station RMU1G Kit (pre-installed unit) with Standard Test Station •...

  • Page 18: Rmu1G-Lite (Lte Cellular Us/Canada/Mexico) Unit And Kits

    RMU1G-LITE remote monitoring unit • Mobiltex P/N A20A00RMU14 • 1 pc – ½” #6-32 screw comes pre-attached to a mating nut in the RMU1 unit • Typically installed inside a test station RMU1G-LITE Kit (pre-installed unit) with Standard Test Station •...

  • Page 19: Rmu1S-Lite (Globalstar Satellite) Unit And Kits

    • Mobiltex P/N A20A00RMU15 • Can only send messages to CorView, does not receive them (Simplex) • 1 pc – ½” #6-32 screw comes pre-attached to a mating nut in the RMU1 unit • Typically installed inside a test station RMU1S-LITE Kit (pre-installed unit) with Standard Test Station •...

  • Page 20: Int1 Unit And Kits

    • Add one of ARMU1CTSSxxx Test Station standard cap (see RMU1 Optional Installation Items) RMU1/INT1 Large Cap Test Station kit (Pro-Mark), fits a 3” pipe • Mobiltex P/N ARMU1A960000 (RMU1G/INT1 pre-installed) • Mobiltex P/N ARMU1A860000 (RMU1I/INT1 pre-installed) • Add one of ARMU1CTSTxxx Test Station tall cap (see...

  • Page 21: Rmu1 Optional Installation Items

    • Kit includes a carrying case and portable USB battery pack. RMU1ADP RMU2/3 Programmer Adapter • Mobiltex P/N A1506033001 • Allows an existing RMU2/3 Programming Interface to be used with RMU1 devices. 21 OF 92 m o b i lt e x . c o m...
  • Page 22 DESCRIPTION RMU1/2/3-BT Programmer Kit • Mobiltex P/N A20A0333101 • Universal programming kit for RMU1, RMU2, and RMU3 devices. Includes RMU1/2/3 base programmer (A1506033101), RMU1ADP (A1506033001), LiIon battery pack, soft case and USB stick with programming software. Capable of Bluetooth communications with a phone/tablet. Can also be used with a PC through the USB connection.
  • Page 23 RMU1 Installation and Configuration Guide RMU1-MAN-001, 2.01 PICTURE DESCRIPTION Test Station Tall Cap/Ring (15.5”) (Pro-Mark) • Mobiltex P/N ARMU1CTSTORG (Orange) • Mobiltex P/N ARMU1CTSTYEL (Yellow) • Mobiltex P/N ARMU1CTSTGRN (Green) • Mobiltex P/N ARMU1CTSTWHT (White) • Mobiltex P/N ARMU1CTSTBLU (Blue) •...
  • Page 24 Test station with RMU1 to-test-station flex PCB • Mobiltex P/N ARMU1A040000 (8 standard bolts) • Mobiltex P/N ARMU1A050000 (8 banana jack) • Connects the RMU1 6-pin connector directly to the test station bolts. • Add one of ARMU1CTSSxxx Test Station standard cap. 24 OF 92...

  • Page 25: Table 7 Rmu1 Accessories

    RMU1PGM G4 Retrofit Kit • Mobiltex P/N A20A03PGM01 • The RMU1 G4 no longer works with our previous programmers as the new communications port blocks the attachment of the programmer. The new programmer plate does a much better job of holding on to the RMU1, is compatible with previous generations of the RMU1 and is easy to retrofit to a RMU1PGM or a RMU3PGM with the RMU1 adaptors.

  • Page 26: Quick Bench Test

    If the GPS receiver is enabled in the configuration (for the RMU1S, the GPS is always enabled at power-up), the RMU1 will display the ‘GPS’ icon on the LCD display and also show a number in the format of ‘X.YY’ where X is the number of satellites being received and YY is the average signal strength of those satellites.

  • Page 27: Figure 5 Corview All Readings Page

    RMU1-MAN-001, 2.01 Figure 5 CorView All Readings Page Pressing a magnet against the area marked “TEST” on the RMU1 for 1 to 5 seconds will force an immediate analog measurement and data transmission. NOTES After the device has transmitted the measurements, CorView should display a new status of “Button Press”...

  • Page 28: Installation

    With specialized cover locking systems or for other special test station installations, it may also be possible to cut off part of the test station terminal board to make room for the RMU1; in that case the spacer ring would not be needed.

  • Page 29: Measurement Type Wiring

    Figure 8 Installation Inside NEMA4X Box 5.2 Measurement Type Wiring The RMU1 can be wired in several different pre-defined configurations for single coupon, dual coupon, separate AC and DC coupons, and bond monitoring. The diagrams in the following pages illustrate typical installations for each measurement type.
  • Page 30 The INT1 is similarly designed to be wired to monitor bonds or anode beds. It has an internal 20mOhm current shunt which makes for easy installation. The RMU1 used in conjunction with it should not be used to monitor the same bond as the INT1, but can be used to monitor coupons, test points, another bond or be disabled.

  • Page 31: Figure 9 Single Coupon Wiring Diagram (Cp33)

    RMU1 Installation and Configuration Guide RMU1-MAN-001, 2.01 RMU1 Single Coupon DATA DESCRIPTION LCD ICONS SLOT Coupon DC Potential COUPON DC V Coupon AC Potential COUPON AC V Coupon Instant Disconnect DC Potential COUPON INSTANT DISCONNECT DC V Coupon AC Current Density...

  • Page 32: Figure 10 Dual Coupon Wiring Diagram (Cp34)

    RMU1 Installation and Configuration Guide RMU1-MAN-001, 2.01 RMU1 Dual Coupon DATA DESCRIPTION LCD ICONS SLOT Cou pon DC Potential COUPON DC V Cou pon AC Potential COUPON AC V Cou pon Instant Dis conn ect DC P oten tial COUPON INSTAN T DISCONNECT DC V...

  • Page 33: Figure 11 Single Coupon With Ac Mitigation Wiring Diagram (Cp35)

    Figure 11 Single Coupon with AC Mitigation Wiring Diagram (CP35) With this type of installation, a scaling factor must be entered for the AC mitigation slot in the RMU1 configuration. The scaling factor is dependent on the transformer and the burden/divider resistors. For Mobiltex supplied transformer kits, the required slot scale factor is printed on the transformer assembly.

  • Page 34: Figure 12 Bond Wiring Diagram (Bond36)

    RMU1 Installation and Configuration Guide RMU1-MAN-001, 2.01 RMU1 Bond DATA DESCRIPTION LCD ICONS SLOT P/S1 DC Potential P/S1 DC VOLTS P/S1 AC Potential P/S1 AC VOLTS P/S2 DC Potential P/S2 DC VOLTS P/S2 AC Potential P/S2 AC VOLTS Bond DC Current...

  • Page 35: Figure 13 Test Point Wiring Diagram (Tp37)

    RMU1 Installation and Configuration Guide RMU1-MAN-001, 2.01 RMU1 Test Point DATA DESCRIPTION LCD ICONS SLOT P/S1 DC Potential P/S1 DC VOLTS P/S1 AC Potential P/S1 AC VOLTS P/S2 DC Potential P/S2 DC VOLTS P/S2 AC Potential P/S2 AC VOLTS DC Current...

  • Page 36: Figure 14 Separate Dc And Ac Coupons Wiring Diagram (Cp38)

    The shunt is a 10 ohm resistor; this shunt resistance must be used in the coupon calculator in the RMU1 configuration application to obtain correct readings.

  • Page 37: Figure 15 Single Coupon With Dc Bond Wiring Diagram (Cp39)

    RMU1 Installation and Configuration Guide RMU1-MAN-001, 2.01 RMU1 Single Coupon w/DC Bond DATA DESCRIPTION LCD ICONS SLOT Cou pon DC Potential COUPON DC V Cou pon AC Potential COUPON AC V Cou pon Instant Dis conn ect DC P oten tial...

  • Page 38: Figure 16 Interruption Detection With On/Off Measurements (Tp40)

    This measurement type is also supported on full RMU1 G2/G3/G4 devices; however, note that connection points for the structure and reference cells differ from usual wiring on the RMU1. The first 4 slots are standard P/S measurements. Slots 5 and 6 support interruption detection.
  • Page 39 RMU1 Installation and Configuration Guide RMU1-MAN-001, 2.01 • When two reference cells are installed, it is then possible to compare the measurements from the two references on CorView. If the measurements are observed to diverge over time, it is an indication that one of the reference cells may need replacement.

  • Page 40: Figure 17 Bond (Bond44)

    RMU1 Installation and Configuration Guide RMU1-MAN-001, 2.01 INT 1 Bond DATA DESCRIPTION LCD ICONS SLOT P/S1 DC Potential P/S1 DC VOLTS P/S1 AC P oten tial P/S1 AC VOLTS P/S2 DC Potential P/S2 DC VOLTS P/S2 AC P oten tial...

  • Page 41: Figure 18 Bond W/Instant Disconnect (Bond45)

    RMU1 Installation and Configuration Guide RMU1-MAN-001, 2.01 INT 1 Bond w/ Instant Disconnect DATA DESCRIPTION LCD ICONS SLOT P/S1 DC Potential P/S1 DC VOLTS P/S1 AC P oten tial P/S1 AC VOLTS P/S2 DC Potential P/S2 DC VOLTS P/S1 Instant Disconnect DC Potential...

  • Page 42: Figure 19 Rmu1 Measurement Wiring Connections

    Wire the appropriate measurement signals from the coupon or bond to the terminal block on the RMU1. ▪ The green terminal block is pluggable; it may be easier to remove it from the RMU1 while wiring. Strip ¼”(6mm) of insulation off the end of each measurement wire before inserting the wire into the terminal block.

  • Page 43: Wiring With Flex Pcb Equipped Test Station

    Transducer 1 Transducer 2 Power Supply Figure 20 RMU1 w/ 4mA-20mA Mode (G3+) Mobiltex provides a battery pack (A1506035701) that can be purchased with the RMU1 to act as a • power supply (~18 Volts nominal). • The battery packs have a small power button and the transducer measurements should be tested to ensure function before leaving the site.
  • Page 44 RMU1-MAN-001, 2.01 As an optional accessory, a standard test station equipped with a flex PCB that connects the RMU1 6-pin connector directly to the test station bolts is available. All measurement sources are then connected directly to the test station bolts.

  • Page 45: Figure 21 Kit With Flex Pcb Test Station

    Figure 21 Kit With Flex PCB Test Station Internally, the flex PCB connects the RMU1 to the test station bolts as shown here: Figure 22 Test Station Flex PCB Connections 45 OF 92 m o b i lt e x . c o m...

  • Page 46: Figure 23 Single Coupon Flex Connections (Cp33)

    RMU1 Installation and Configuration Guide RMU1-MAN-001, 2.01 The following figures illustrate the necessary connections for each RMU1 measurement type. RMU1 Single Coupon DATA DESCRIPTION LCD ICONS SLOT Coupon DC Potential COUPON DC V Coupon AC Potential COUPON AC V Coupon Instant Dis connect DC P otential...

  • Page 47: Figure 24 Dual Coupon Flex Connections (Cp34)

    RMU1 Installation and Configuration Guide RMU1-MAN-001, 2.01 RMU1 Dual Coupon DATA DESCRIPTION LCD ICONS SLOT Coupon DC Potential COUPON DC V Coupon AC Potential COUPON AC V Coupon Instant Dis connect DC P otential COUPON INSTAN T DISCONNECT DC V...

  • Page 48: Figure 25 Single Coupon W/Ac Mitigation Flex Connections (Cp35)

    RMU1 Installation and Configuration Guide RMU1-MAN-001, 2.01 RMU1 Single Coupon w/AC Mitigation DATA DESCRIPTION LCD ICONS SLOT Coupon DC Potential COUPON DC V Coupon AC Potential COUPON AC V Coupon Instant Dis connect DC P oten tial COUPON INSTAN T DISCONNECT DC V...

  • Page 49: Figure 26 Bond Flex Connections (Bond36)

    RMU1 Installation and Configuration Guide RMU1-MAN-001, 2.01 RMU1 Bond DATA DESCRIPTION LCD ICONS SLOT P/S1 DC Potential P/S1 DC VOLTS P/S1 AC P otential P/S1 AC VOLTS P/S2 DC Potential P/S2 DC VOLTS P/S2 AC P oten tial P/S2 AC VOLTS...

  • Page 50: Figure 27 Test Point Flex Connections (Tp37)

    RMU1 Installation and Configuration Guide RMU1-MAN-001, 2.01 RMU1 Test Point DATA DESCRIPTION LCD ICONS SLOT P/S1 DC Potential P/S1 DC VOLTS P/S1 AC P otential P/S1 AC VOLTS P/S2 DC Potential P/S2 DC VOLTS P/S2 AC P oten tial P/S2 AC VOLTS...

  • Page 51: Figure 28 Separate Ac/Dc Coupons Flex Connections (Cp38)

    Coupon Figure 28 Separate AC/DC Coupons Flex Connections (CP38) CPN3A (Mobiltex P/N A20A0333401) can be installed as shown in the figure above; this board contains the necessary links and resistor. Alternatively, external links between bolts 6-8 and 4-5 are needed. An external 10 ohm shunt resistor between bolts 5 and 6 is also needed.

  • Page 52: Figure 29 Single Coupon W/Dc Bond Flex Connections (Cp39)

    RMU1 Installation and Configuration Guide RMU1-MAN-001, 2.01 RMU1 Single Coupon w/DC Bond DATA DESCRIPTION LCD ICONS SLOT Cou pon DC Potential COUPON DC V Cou pon AC Potential COUPON AC V Cou pon Instant Dis conn ect DC P oten tial...

  • Page 53: Isolated Digital Input

    The digital input state may replace the NOTES transmission value for any data slot or the cap detector state by setting the appropriate options in the RMU1 configuration. When using the isolated digital  The isolated input may be used to monitor a dry set of contacts by input, the analog measurement wiring the contacts in series with an external power supply.

  • Page 54: Configuration

    After the RMU1 is powered, observe that the RMU1 “Status” LCD indicator turns on (refer to section 5.7 for detailed LCD operation descriptions). If the GPS receiver is enabled in the configuration, the RMU1 will display the ‘GPS’ icon on the LCD ▪...

  • Page 55: Status Display

    Figure 32 RMU1 Segment LCD and LED Status Indicators The RMU1 has a segmented LCD display and two LED indicators (A and B, see Figure 32) that provide status information to the user. The RMU1-LITE does not have an LCD display, only the LED indicators are present.

  • Page 56: Figure 33 Lcd Enable Magnet Location

    RMU1 Installation and Configuration Guide RMU1-MAN-001, 2.01 The LCD and LEDs function as follows: • The LED indicators are currently only used by the firmware loader function. They should remain off during normal operation. • The LCD display is used to convey measurement value data and other status information.

  • Page 57: Coupon Disconnect

    When installing to the test station, the INT1 should be on the same side as the nuts of the test station terminal board. This allows the RMU1 to be easily installed on the other side of the mounting and the connection cable to be easily routed between the two units.

  • Page 58: Int1 Down Pipe

    Kit part number A20100RMU11 consists of a custom molded shield with integral mounting screw. The test station is not included with this kit. The shield is installed on the test station securing the RMU1 using the integral Philips head screw.

  • Page 59: Shield Installation With Banana Jack Test Point Kit

    RMU1 Installation and Configuration Guide RMU1-MAN-001, 2.01 • 10 fiber washers • 10 ¼” nuts • 5 ¼” lock washers. These screws provide an electrical termination point and the center of the screw includes a receptacle that accepts a standard test lead banana plug.

  • Page 60: Figure 36 Shield Installation With Banana Jack Test Point Kit

    Drill a 3/16” (4.5mm) hole in each location that banana jack test point access is required. • The drilled shield is then installed on the test station securing the RMU1 using the Philips head screw. Internal View c/w External View c/w...

  • Page 61: Configuration Using A Pc

    RMU1ADP (Kit A20A0333101) ▪ The RMU1 programming interface is shown in Figure 37. It has one cable exiting, a USB cable that attaches to a PC. The interface is powered from the PC USB port, so an external power supply in not required.

  • Page 62: Software Installation

    Figure 39 RMU1Installer Dialog 6.2.1 Driver Installation From the RMU1 Installer screen, click the “Install RMU Programming Interface Drivers” button. Note that to install drivers, you must be logged into the PC with an account that has administrative privileges. The following screen should display.

  • Page 63: Figure 40 Driver Installation Screen

    As an alternative method, the drivers may be installed using the Windows “Found New Hardware Wizard” by plugging the RMU1 programming interface into the PC first. If the “Found New Hardware Wizard” does not appear, it is possible that drivers for the programming interface are already installed. Complete the following steps: Figure 41 Driver Installation - Found New Hardware From the three choices, select the “No, not this time”...

  • Page 64: Figure 42 Driver Installation - Install From Specific Location

    RMU1 Installation and Configuration Guide RMU1-MAN-001, 2.01 Figure 42 Driver Installation - Install From Specific Location Choose to install from a specific location since you have the installation CD, USB key or downloaded files. Click the “Next >” button. The next window will appear and ask you where to search for the drivers. The default selection is shown in Figure Figure 43 Driver Installation - Driver Location Selection Insert the CD or USB key that came with the programming interface.

  • Page 65: Configuration Application Installation

    “Finish” button to complete the driver installation. 6.2.2 Configuration Application Installation Click on the “Install RMU1 Configuration Application” button to start the application installer. A security warning dialog may appear. Click the “Run” button to continue. The following dialog should now appear: Figure 45 RMU1 Configuration Application Installation Dialog Follow the instructions presented in the installation screens, clicking “Next”...

  • Page 66: Adobe Acrobat Reader Xi

    6.2.3 Adobe Acrobat Reader XI Adobe Acrobat Reader XI is provided on the CD to allow viewing of the PDF version of the RMU1 manual. If Acrobat Reader is already installed on the PC, it is not necessary to re-install it. To install Acrobat Reader, click on the “Install Adobe Acrobat Reader XI”...

  • Page 67: Figure 47 Rmu1 Programming Interface Installation

    RMU1-MAN-001, 2.01 Figure 47 RMU1 Programming Interface Installation • Start the configuration software by clicking on “RMU1 Configuration” shortcut in Windows start menu, under the “RMU1 Configuration Application” folder. • If the programmer is not connected to one of your USB ports, you will get an error message. Simply connect the USB cable to the computer and try again.

  • Page 68: Rmu1 Communications And Status

    The first step in configuring a device is to read in the current settings from the unit. • Click on “Read Config From RMU1”. The “Link Status” field will briefly show “Busy” as the current ▪ configuration parameters are read from the RMU1.

  • Page 69: Firmware Version

    6.3.1.4 Read Config From RMU1 This is used to get the current values configured in the RMU1. Note, if you have changed the values in any of the configuration groups, the changes will be over written by pressing this button.

  • Page 70: Cap Detect Calibration

    RMU1 Installation and Configuration Guide RMU1-MAN-001, 2.01 In the event that a problem is encountered with the operation of the RMU1, Mobiltex may request a screen shot of this dialog to aid in diagnostics. The ESN shown in the comms status area is the value used by CorView to track communications with the device.

  • Page 71: Figure 51 Cap Detect Sensor Calibration Dialog

    Pressing ‘Cancel’ will revert to the prior threshold levels. ▪ ▪ Cap Detect Calibration is not supported with RMU1-LITE devices. • During normal operation, ensure that no wiring or any other objects are blocking the proximity sensor window from being able to ‘see’ the test station cap when it is installed.

  • Page 72: Extract Datalogger Mem

    The resulting file may be opened for analysis in various applications that support the CSV format. 6.3.1.12 Clear Datalogger Mem The ‘Clear Datalogger Mem’ button allows the RMU1 datalogger memory to be reset back to a blank state. This function requires the factory-enabled datalogger option be present on the RMU1.

  • Page 73: Reboot Rmu1

    ‘Readings’ area of the configuration screen. The RMU1 and INT1 slots are differentiated by tabs. Select the tab for the unit you want to configure. Both the RMU1 and INT1 configurations are sent to the RMU1 regardless of the active tab.

  • Page 74: Periodic Report Interval

    The ‘Initial Delay’ parameter sets how long, in days that the RMU1 will wait after a power-up before initiating the first depolarization cycle. When set to a value of 0, the RMU1 will wait one wakeup cycle (6 hours) before disconnecting the coupon.
  • Page 75 • The Interruption Method is specific to the unit, so the INT1 and the RMU1 can have separate interruption methods. There are 3 interruption methods: Cycle, Envelope and Ignore.

  • Page 76: Options

    Several options are available that affect the operation of the RMU1. • The ‘Enable Cap Report’ option allows the RMU1 to send an exception report to CorView whenever a transition is detected on the cap detection sensor. The cap detection sensor is an infrared proximity sensor unit that detects an installed cap by the amount of infrared light reflected by the cap.
  • Page 77 The second use would be if the RMU1 is installed in a location that does not have sufficient GPS coverage to attain a position lock. An example would be if the RMU1 is installed in a metal box or other challenging RF environment.

  • Page 78: Readings

    This mode will disable normal channel mappings and should be used only with 4-20mA transmitters. ▪ The loop warm up (in seconds) is the time the RMU1 should wait after switching on the batteries for the reading to stabilize. ▪...

  • Page 79: Mobile Device Configuration

    Bluetooth Smart (BLE) to enable a wireless connection to a compatible mobile device. The programming cable is also available as part of kit (Mobiltex P/N A20A0332701) that includes a carrying case and a USB battery pack. Note that only RMU1PGM cables with a black USB cable have Bluetooth capability; RMU1PGM cables with a white USB cable are not Bluetooth capable.

  • Page 80: Figure 56 Rmu1Pgm-Bt Usb Battery Pack Charging

    RMU1 Installation and Configuration Guide RMU1-MAN-001, 2.01 Bluetooth connection. One limitation with the mobile app is that the datalogger on the RMU1 cannot be extracted; this is due to a speed limitation over the Bluetooth Smart connection. For use with the Bluetooth connection, a portable USB battery pack is needed to power the RMU1PGM-BT interface cable or RMU1/2/3 Programming Interface.

  • Page 81: Figure 57 Rmu1Pgm-Bt Connected To Battery Pack And Rmu1

    Figure 57 RMU1PGM-BT Connected To Battery Pack and RMU1 • Once the cable is attached between the portable USB battery pack and the RMU1, the app on the mobile device is started by tapping on the appropriate app icon. ▪...

  • Page 82: Figure 58 Ios App Sample Screenshots

    RMU1 Installation and Configuration Guide RMU1-MAN-001, 2.01 Figure 58 iOS App Sample Screenshots Upon completion of configuration, disconnect the RMU1PGM-BT cable or RMU1/2/3 Programming Interface from the battery pack to conserve charge in the pack. 82 OF 92 m o b i lt e x . c o m...

  • Page 83: Battery Replacement

    Remove the old batteries by popping them out of the battery clips. Install four new AA batteries from the replacement battery kit (Mobiltex P/N B02221RMU10). The batteries are oriented according to the polarity markings shown on the main RMU1 logic circuit board.

  • Page 84: Int1

    Remove the old batteries by popping them out of the battery clips. Install eight new AA batteries from the replacement battery kit (2x Mobiltex P/N B02221RMU10). The batteries are oriented according to the polarity markings shown on the main INT1 battery board.

  • Page 85: Figure 63 Int1 Back Tightening Scheme

    Figure 63 INT1 back tightening scheme Re-install the INT1 as instructed in section 5.9. If a RMU1 is present, also replace its batteries before reconnecting the units. No other maintenance or cleaning is required. 85 OF 92...

  • Page 86: Technical Support

    RMU1 Installation and Configuration Guide RMU1-MAN-001, 2.01 9 Technical Support Technical assistance may be obtained from: Mobiltex Data Ltd. #36, 56 Freeport Cres. NE Calgary, AB, Canada T3J 0T7 Tel: (403)291-2770 Web: http://www.mobiltex.com Service Email: service1@mobiltex.com Service Website: http://service.mobiltex.com 86 OF 92...

  • Page 87: Equipment Specifications

    RMU1 Installation and Configuration Guide RMU1-MAN-001, 2.01 A. Equipment Specifications RMU1 Specifications Operating Temperature -40 to +60 C (-40 to +140 F) Storage Temperature -45 to +80 C (-49 to +176 F) Maximum Altitude 5000 meters above sea level Humidity...
  • Page 88 RMU1 Installation and Configuration Guide RMU1-MAN-001, 2.01 Cellular LTE Cat M1/NBIoT B2,4,5,12,13 (RMU1G-LTEM) GPS Receiver 72-channel u-blox M8 Datalogger Storage 1 million reading points (Factory Enabled Option) RMU1-LITE Specifications Operating Temperature -40 to +60 C (-40 to +140 F) Storage Temperature -45...
  • Page 89 RMU1 Installation and Configuration Guide RMU1-MAN-001, 2.01 +/-10ADC, 7AAC High Range AC Rejection on DC Readings >65dB @ 50/60Hz Lightning Immunity Survives multiple 20KV 10mS surges DC Measurement Accuracy Potential: +/-1% + 1mV (over operational temperature) Bond Current: +/-0.75% + 10uA Low Range +/-0.5% + 15uA...

  • Page 90: Rmu1S Globalstar Simplex Satellite Coverage Map

    RMU1 Installation and Configuration Guide RMU1-MAN-001, 2.01 B. RMU1S Globalstar Simplex Satellite Coverage Map Figure 64 Globalstar Simplex Satellite Coverage Map 90 OF 92 m o b i lt e x . c o m...

  • Page 91: Rmu1I Iridium Sbd Satellite Coverage Map

    RMU1 Installation and Configuration Guide RMU1-MAN-001, 2.01 C. RMU1I Iridium SBD Satellite Coverage Map Iridium offers complete pole-to-pole coverage in all areas of the Earth due to its cross-linked polar orbiting constellation. 91 OF 92 m o b i lt e x . c o m...

  • Page 92: Rmu1 Regulatory Statements

    RMU1 Installation and Configuration Guide RMU1-MAN-001, 2.01 D. RMU1 Regulatory Statements This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
