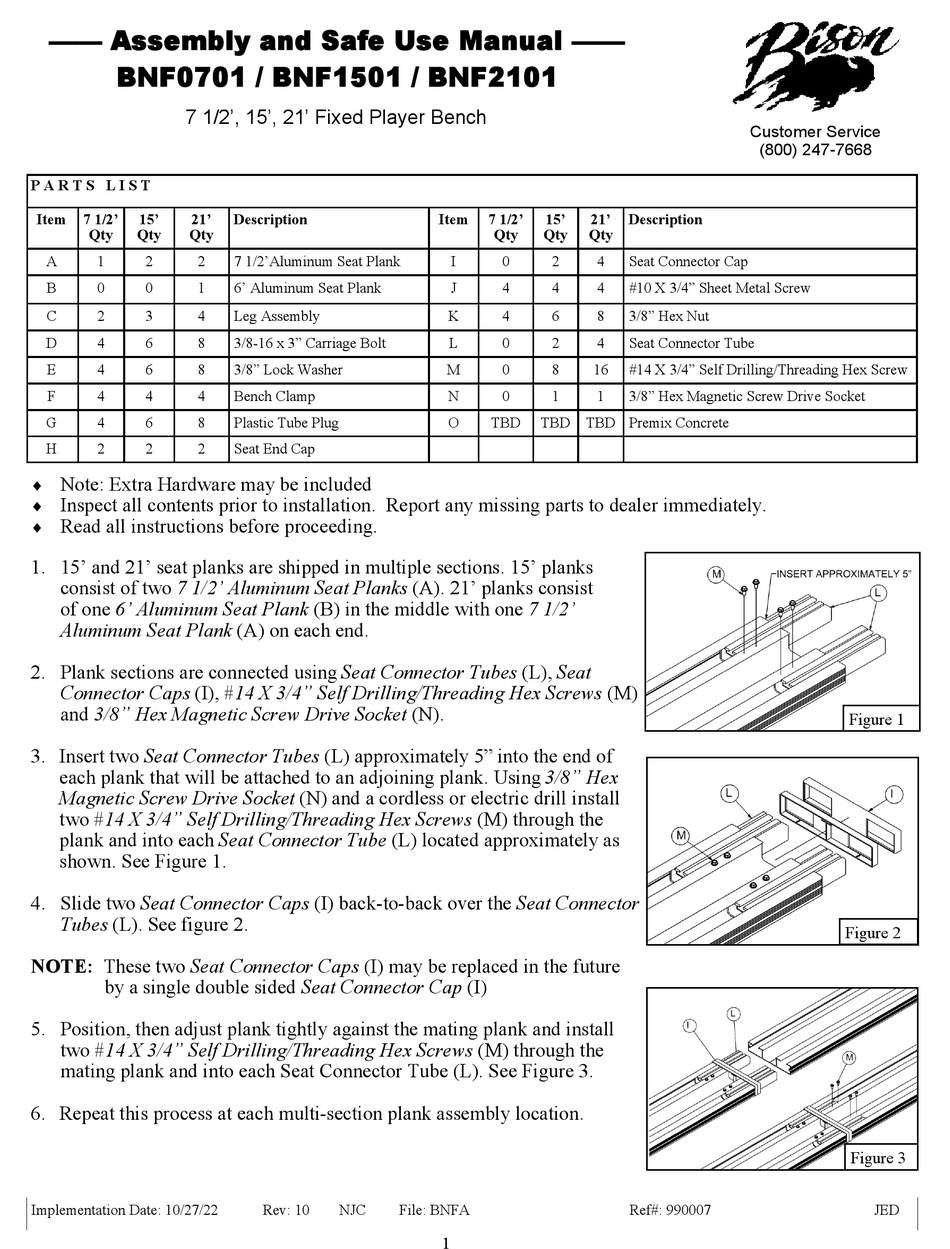

Bison BNF0701 Assembly And Safe Use Manual

—— Assembly and Safe Use Manual ——
BNF0701 / BNF1501 / BNF2101
7 1/2', 15', 21' Fixed Player Bench
P A R T S L I S T
Item 7 1/2' 15' 21'
Qty Qty Qty
A 1 2 2
B 0 0 1
C 2 3 4
D 4 6 8
E 4 6 8
F 4 4 4
G 4 6 8
H 2 2 2
Note: Extra Hardware may be included

Inspect all contents prior to installation. Report any missing parts to dealer immediately.

Read all instructions before proceeding.

1. 15' and 21' seat planks are shipped in multiple sections. 15' planks
consist of two 7 1/2' Aluminum Seat Planks (A). 21' planks consist
of one 6' Aluminum Seat Plank (B) in the middle with one 7 1/2'
Aluminum Seat Plank (A) on each end.
2. Plank sections are connected using Seat Connector Tubes (L), Seat
Connector Caps (I), #14 X 3/4" Self Drilling/Threading Hex Screws (M)
and 3/8" Hex Magnetic Screw Drive Socket (N).
3. Insert two Seat Connector Tubes (L) approximately 5" into the end of
each plank that will be attached to an adjoining plank. Using 3/8" Hex
Magnetic Screw Drive Socket (N) and a cordless or electric drill install
two #14 X 3/4" Self Drilling/Threading Hex Screws (M) through the
plank and into each Seat Connector Tube (L) located approximately as
shown. See Figure 1.
4. Slide two Seat Connector Caps (I) back-to-back over the Seat Connector
Tubes (L). See figure 2.
NOTE: These two Seat Connector Caps (I) may be replaced in the future
by a single double sided Seat Connector Cap (I)
5. Position, then adjust plank tightly against the mating plank and install
two #14 X 3/4" Self Drilling/Threading Hex Screws (M) through the
mating plank and into each Seat Connector Tube (L). See Figure 3.
6. Repeat this process at each multi-section plank assembly location.
Implementation Date: 10/27/22
Description
7 1/2'Aluminum Seat Plank
6' Aluminum Seat Plank
Leg Assembly
3/8-16 x 3" Carriage Bolt
3/8" Lock Washer
Bench Clamp
Plastic Tube Plug
Seat End Cap
Rev: 10 NJC File: BNFA
Item 7 1/2' 15' 21'
Qty Qty Qty
I 0 2 4
J 4 4 4
K 4 6 8
L 0 2 4
M 0 8 16
N 0 1 1
O TBD TBD TBD Premix Concrete
1
Customer Service
(800) 247-7668
Description
Seat Connector Cap
#10 X 3/4" Sheet Metal Screw
3/8" Hex Nut
Seat Connector Tube
#14 X 3/4" Self Drilling/Threading Hex Screw
3/8" Hex Magnetic Screw Drive Socket
Ref#: 990007
Figure 1
Figure 2
Figure 3
JED
