SOLAR-X-3NM IR QUICK START USER GUIDE
Ver1.0

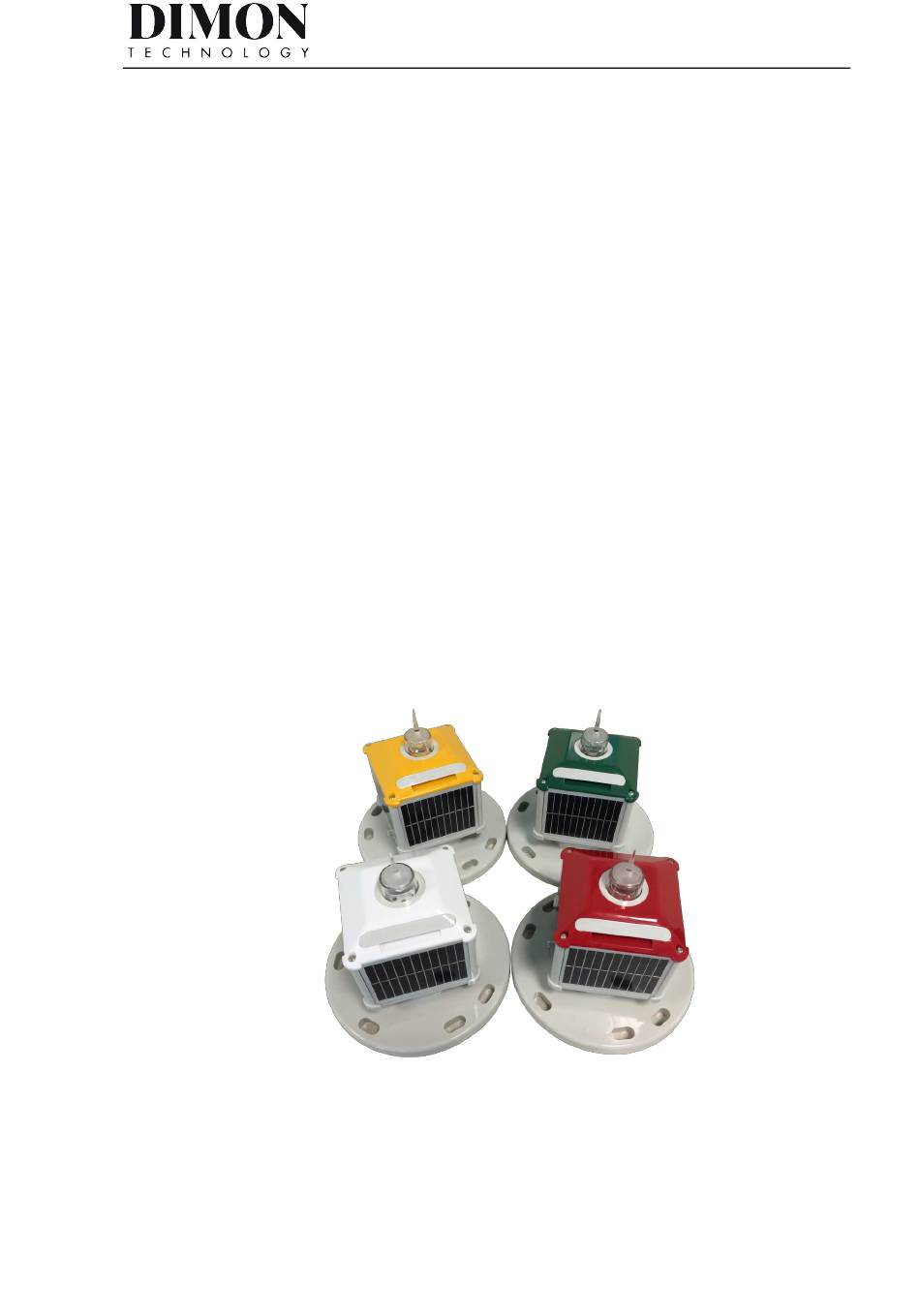

SOLAR INTEGRATED LED LIGHT
SOLAR-X-3NM
INFRARED CONTROLLER
USER GUIDE
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SOLAR-X-3NM and is the answer not in the manual?

Questions and answers

Summary of Contents for DIMON TECHNOLOGY SOLAR-X-3NM

  • Page 1 SOLAR-X-3NM IR QUICK START USER GUIDE Ver1.0 SOLAR INTEGRATED LED LIGHT SOLAR-X-3NM INFRARED CONTROLLER USER GUIDE...
  • Page 2: Packing Contents

    1. PACKING CONTENTS Infrared packaging consists of:  Infrared data controller  PC infrared receiver  DC80 data collection server software (with encryption)  DC80 software security key (USB dongle)  Mini USB cable IR TX/RX    Display Enter Power Send...
  • Page 3 2. INFRARED DATA CONTROLLER FUNCTIONS IR TX/RX Display Enter Power Send Menu Back Arrow Keys Buttons Functions Power Press to power on / off device Menu Press to enter main menu Send Press to transmit selected command Back Press to access previous screen Enter Press to access selected menu option Arrow Keys...
  • Page 4: Getting Started

    3. GETTING STARTED 3.1 Basic Operation Point infrared data controller direct to the lighting IR port for data transmission operation. “Send” is data transmit command, aim to the lighting IR port when pressing the “Send” button. Access to menu options by pressing “Direction Arrow Keys” and “OK” button accordingly, press “Back”...
  • Page 5 3.3 Light Testing Mode Testing mode is normally used during routine inspection, enter 1.2 “Test” menu and press the “Send” button, the display will then show “OK” to indicate the testing mode was executed successfully. In the testing mode, the lighting will light up and flash according to the flash code for 5 minutes, after that the lighting will shut down automatically and back to normal operation.
  • Page 6 3.5 Configuration Setting and Editing Enter 2.1“Flash codes” menu, move the cursor to “Read” and then press the “Send” button, the display will then show “OK” to indicate configuration reading successful. The display will show the lighting flash code, lux value and light intensity parameters. Move the cursor and press the left or right button to change the parameter setting accordingly, move the cursor to “Write”...
  • Page 7: Data Export

    3.6 Data Export Enter 3. “Data MGT” menu > 3.1 “Send” menu, the display screen will show the controller used and total capacity, capacity is shown in number of data. Aim the infrared data collector to the PC IR adapter TX/RX port, open PC terminal DC80 data collection software and press the “Start”...
  • Page 8: Data Deletion

    3.7 Data Deletion Enter 3.2 “Erase” menu, press the “OK” button, the screen will pop up a warning message, press the “OK” button again then the data will be deleted successfully. 4. DC80 DATA COLLECTION SERVER 4.1 PC Infrared Receiver PC infrared receiver windows driver to be installed before operation of DC80 data collection server.
  • Page 9 2) Right click on my computer>properties>device manager>double click on FT232R USB UART. 3) Click on Update Driver.
  • Page 10 4) Click on Browse my computer for driver software. 5) Click on Browse. 6) Go to the new folder created in step 1 and click on i386.
  • Page 11 7) Follow the on screen instruction and click next till installation are completed. 8) Right click on my computer>properties>device manager>double click on USB Serial Port. 9) Repeat steps 3 – 7.
  • Page 12 4.2 DC80 Data Collection Server Software Proceed only after complete installation of 4.1. 1) Double click on CD drive in My Computer. 2) Double click on DC80 Data Collection Server Setup.exe. 3) Click on next. 4) Click on next.
  • Page 13 5) Click on next. 6) Click on next.
  • Page 14 7) Click Install. 8) Click Finish.
