Summary of Contents for DIMON TECHNOLOGY LED Neon flex

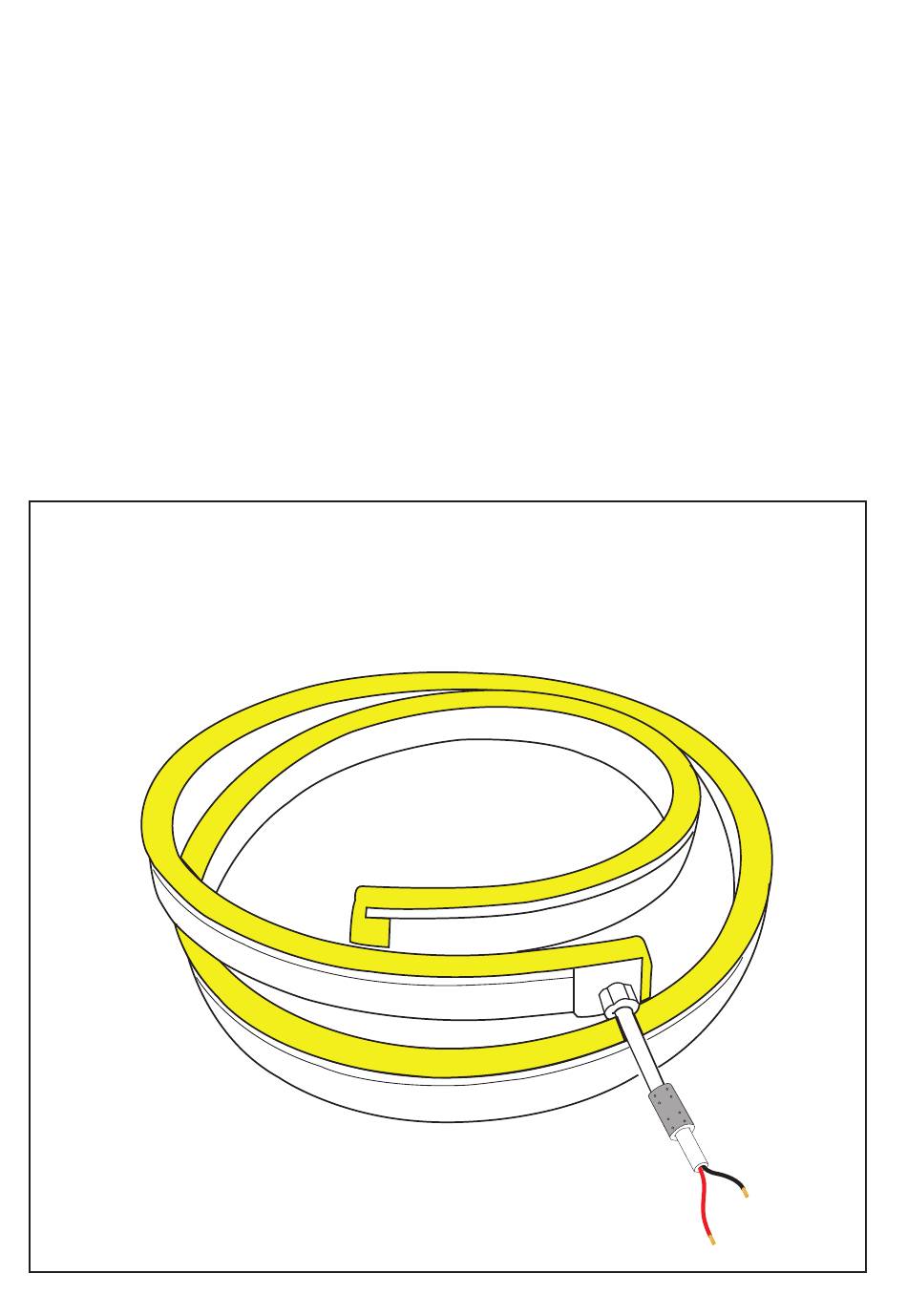

Page 1 DIMON TECHN OLO GY LED Neon flex User Manual...
Page 2: Table Of Contents
DIMON Contents TECHN OLO GY 1) Introduction..................1 2) Product Overview..............2 3) Installation Guide................ 4 4) Mounting Product..............5 5) DIY screw connector kit assembly instruction....8 6) DIY snap connector kit assembly instruction....11 7) Electrial Connection..............15 8) Connection Examples..............
Page 3: Introduction
TECHN OLO GY This user manual is intended to cover as LED Neon Flex are bendable and highly durable linear LED solutions – suitable for much detail as possible for this product, both indoor and outdoor applications. To achieve a uniform and diffused light output,...
Page 4: Product Overview
DIMON TECHN OLO GY 2. Product Overview Side flat shape Neon Flex (8*17mm) 0.31 inch -Flat retangular emission surface with 120-degree beam angle. -The mini bend diameter of 8cm, suitable for led neon sign application. -Available in static color including white in CCT ranging from 2200K-6500K. (Please refer to our datesheets specification for the exact color range) -Color opitions include green, blue, red, pink, amber, orange.
Page 5 DIMON TECHN OLO GY Side Dome shape Neon Flex (11.5*29mm) 11.5mm 0.45 inch -Dome retangular emission surface with 270-degree beam angle. -The bend diameter of 8/12cm -Available in static color including white in CCT ranging from 2200K-6500K. (Please refer to our datesheets specification for the exact color range) -Color opitions include RGB, RGBW, DW and Pixel -Dimmable with DALI, 0-10V, DMX, Triac.
Page 6: Installation Guide
DIMON TECHN OLO GY 3. Installation Guide This product left the place of manufacture in perfect condition. In order to maintain this condition and for safe operation, the user must always follow the instructions and safety warnings described in this user manual. Specific Installation Safety Warning! General...
Page 7: Mounting Product
TECHN OLO GY 4. Mounting Product Led neon flex is a highly durable product but must be installed in accordance to the pictures shown below, which indicate the minimum bending parameters as well as the correctly bending direction for each specific variant of models...
Page 8 DIMON TECHN OLO GY Led neon flex is a highly durable product but must be installed in accordance to the pictures shown below, which indicate the minimum bending parameters as well as the correctly bending direction for each specific variant of models...
Page 9 TECHN OLO GY Gerneral mounting LED neon flex can be fastened to surfaces using appropriate accessories available from distributor. Please refer to data sheets or contact technical support for a copy. The use of glues and resins as fixing agents should be avoided. Use of glues and resins may invalidate the warranty of the product, unless it’s use is agreed in writing by...
Page 10: Diy Screw Connector Kit Assembly Instruction
Apply 100% clear silicone onto the end face of led neon flex Step 4 Place the rubber gasket squarely onto the end face of led neon flex. Step 5 Srew the blank end to the aluminum Step 4 Step 5 Step 3 mounting piece.
Page 11 DIMON TECHN OLO GY Front feed connector Screw Anti-skidding clip Rubber gasket Aluminum mounting piece [x1] [x4] [x1] [x1] [x1] finished assembly view Step 1 Place the anti-skidding clip on the very end of the tubing with the 2 tiny tabs that are pointing inwards still touching the end of the material and crimp in place.
Page 12 Apply 100% clear silicone onto the end face of led neon flex Step 4 Place the rubber gasket squarely onto the end face of led neon flex. Step 5 Srew the blank end to the aluminum mounting piece. Step 3...
Page 13: Diy Snap Connector Kit Assembly Instruction
DIMON TECHN OLO GY 6. DIY Snap Connector Kit Assembly Instruction The snap kit can be easily installed than screw kit without any tool, it also has the same waterproof fuction of IP67. Linked up with power supply to light up the neon flex after you have measured the exact length in your project, this can help you easily do it by yourself below the detailed assembly instruction。...
Page 14 DIMON TECHN OLO GY Polycarbonate Front feed connector Rubber gasket Anti-skidding clip outer sleeve Joiner bracket finished assembly view [x1] [x1] [x1] [x1] [x1] Step 1 Step 2 Step 3 Step 1 Let neon flex goes through polycarbonate outer sleeve, printed instruction aligns with the ‘Snap End’ arrow points in the direction of the front feed connector.
Page 15 DIMON TECHN OLO GY Polycarbonate Front feed connector Rubber gasket Anti-skidding clip Joiner bracket outer sleeve finished assembly view [x1] [x1] [x1] [x1] [x1] Step 1 Let neon flex goes through polycarbonate outer Step 1 Step 2 Step 3 sleeve, printed instruction aligns with the ‘Snap End’ arrow points in the direction of the front feed connector.
Page 16 DIMON TECHN OLO GY Rubber gasket Interlink board Anti-skidding clip Steel Joiner bracket finished assembly view [x2] [x1] [x2] [x1] Step 1 Place anti-skidding clip onto both end of the neon flex, pay attention to its direction. Step 2 Put rubber gasket on both side of interlink board, then insert interlink board into the gap created behind the FPCB.
Page 17: Electrial Connection
Note that custom feed cable lengths are available upon special request. LED neon flex is a high-powered product, which requires a detailed electrical design to ensure equal balancing of loads across drivers and power supplies. Reference can be...
