Supplemental Lighting-
VQ-GLCP Series THCMax Bloom Light
Manufacturer：Shenzhen VANQ Technology Co., Ltd.
Address：3#, BLDG B, Debaoli lndustrial park, NO.312, Jihua Road, Longgang, Shenzhen China
Telephone：+86 755 29042099
Fax：29042092
Email：vanqled@vanqled.com
Web：www.vanqled.com
Version：2022.10
Advertisement
Table of Contents
Related Manuals for VANQ VQ-GLCP Series
Summary of Contents for VANQ VQ-GLCP Series
- Page 1 Shenzhen VANQ Technology Co., Ltd. Supplemental Lighting- VQ-GLCP Series THCMax Bloom Light Manufacturer：Shenzhen VANQ Technology Co., Ltd. Address：3#, BLDG B, Debaoli lndustrial park, NO.312, Jihua Road, Longgang, Shenzhen China Telephone：+86 755 29042099 Fax：29042092 Email：vanqled@vanqled.com Web：www.vanqled.com Version：2022.10...
-
Page 2: Table Of Contents
Shenzhen VANQ Technology Co., Ltd VQ-GLCP Series THCMax Bloom Light CATALOG LAMP INTRODUCTION ..............................3 THCMAX BLOOM LIGHT INFORMATION AND SPECIFICATION ................3 THCMAX BLOOM LIGHT TIME SWITCH INTRODUCTION ..................5 SIZE AND PACKAGE: .................................6 LAMP CONNECTION PRINCIPLE ........................... 8 PRECAUTIONS ..................................9... -
Page 3: Lamp Introduction
Brief Introduction Thank you for purchasing VQ-GLCP series lamps. VQ-GLCP series lamps are specially designed for horticultural auxiliary lighting, in conjunction with VANQ other series grow lighting , aiming to increase THC content of industrial hemp flowers for indoor planting. - Page 4 Shenzhen VANQ Technology Co., Ltd VQ-GLCP Series THCMax Bloom Light Parameter Model VQ-GLCP-044UF-L VQ-GLCP-044UF-S Electric Rated input voltage 110VAC 50/60HZ 220VAC 50/60HZ parameter Total Power 44w±5% Light Source Specification 3535SMD Far-red light LED QTY 28PCS Light Power 28*1=28W Source Light Source...
-
Page 5: Thcmax Bloom Light Time Switch Introduction
VQ-GLCP -016UN：Power 16W included UV,without IR light -S：220-240VAC For example: VQ-GLCP-044UF-S refers to the VQ-GLCP series THCMax bloom light, total power 44W, including UV and Far-red, input voltage 220-240VAC. THCMax bloom light time switch introduction !THCMax bloom light needs to be connected with the time switch for using, a separate purchase of lamps or time switch will be unable to work normally. -
Page 6: Size And Package
Shenzhen VANQ Technology Co., Ltd VQ-GLCP Series THCMax Bloom Light series lamps, two channels switches, single 8A output, CHINA plug. Size and Package !THCMax bloom light and THCMax bloom light time switch are separately packaged。 Lamp 1、Lamp size L =445mm... - Page 7 Shenzhen VANQ Technology Co., Ltd VQ-GLCP Series THCMax Bloom Light 3、Inner Package (A) packing list Item Name Specification M3 Screws PWM-M3*6，round head cross screwed with medium thread ST4.0Screws PA-ST4*8， Self tapping screws with round head and cross point tail Mounting bracket Size：472mm*26mm*3.2mm，Stainless steel material...
-
Page 8: Lamp Connection Principle
Shenzhen VANQ Technology Co., Ltd VQ-GLCP Series THCMax Bloom Light 2、Time switch package Time controlled switch package:1pcs/box Gross weight: 1.1kg Net weight: 0.85kg Size:220L x 170W x 110H(mm) Package material:Carton 3、Packing List Name specification Quantities PA-ST4*8，Self tapping screws with round head ST4.0 screw... -
Page 9: Precautions
Shenzhen VANQ Technology Co., Ltd VQ-GLCP Series THCMax Bloom Light connected with a number of lamps N ≤20, 1 set time switch can be connected with different types of lamps(UV/FR/UV+FR). internal connection principle of THCMax Bloom light and its time switch is shown in the below photo. -
Page 10: Installation
Shenzhen VANQ Technology Co., Ltd VQ-GLCP Series THCMax Bloom Light he working temperature cannot exceed the specified range, the working temperature of lights is -20°C ~ 40°C, and the working temperature of time switches is -10°C ~ 40°C; Do not use lights and time switches in environments with serious dust pollution;... - Page 11 Shenzhen VANQ Technology Co., Ltd VQ-GLCP Series THCMax Bloom Light Fix the bloom lights Fix the M3(c) screws on the slots of mounting bracket, and lock it to the nuts of groove on the back of THCMax bloom light, and then the THCMax bloom light and mounting bracket are fixed together.

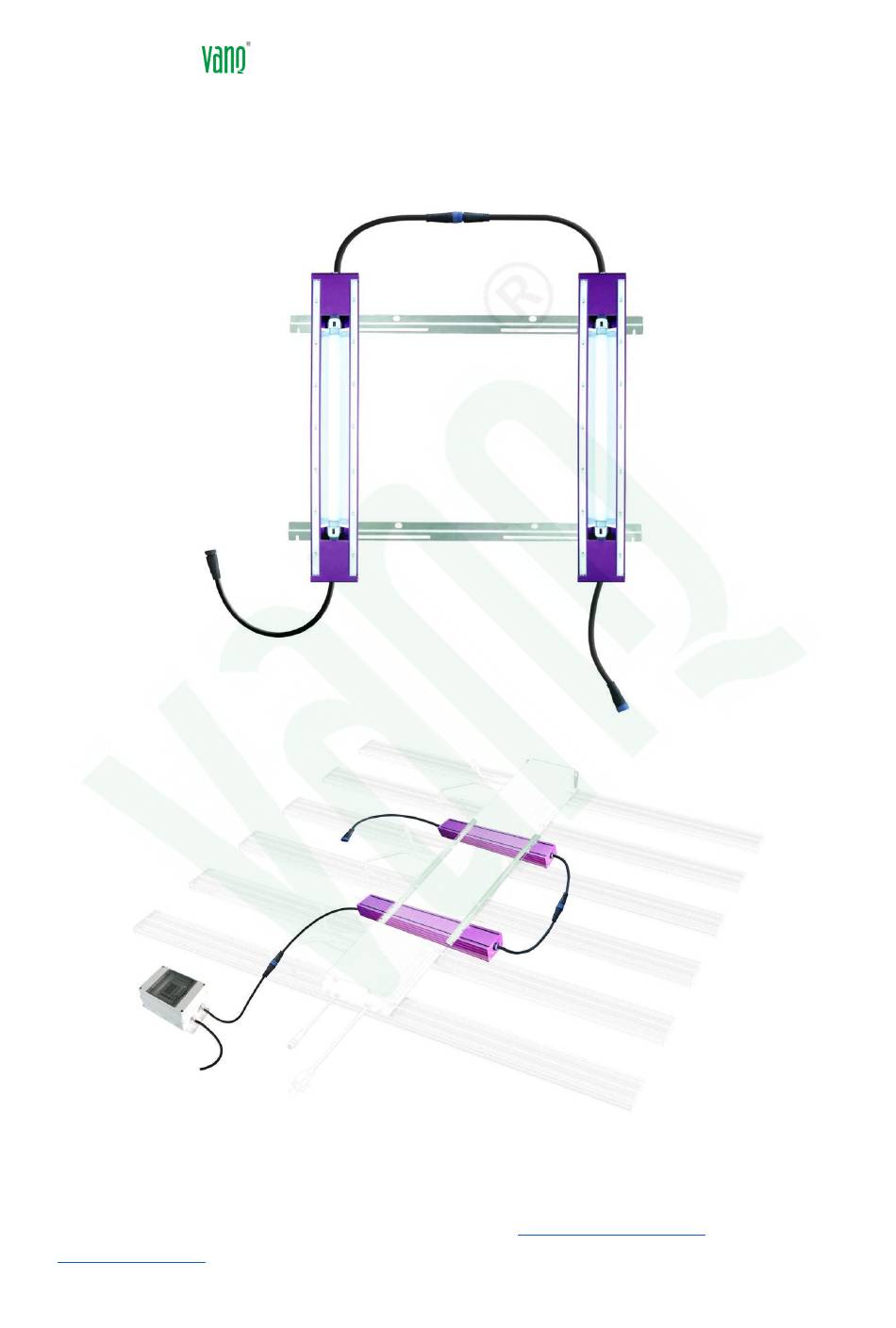

- Page 12 Shenzhen VANQ Technology Co., Ltd VQ-GLCP Series THCMax Bloom Light Installation to time switch of THCMax bloom light Fix the time switch next to the bloom light, make sure the distance can’t exceed 2 meters. Cords connection Connect the waterproof connectors of time switch and bloom light, and connect the waterproof connectors of bloom light and VQ-GLMX series lights, finally tighten the threaded cap.The waterproof cords should be...
- Page 13 Shenzhen VANQ Technology Co., Ltd VQ-GLCP Series THCMax Bloom Light Connection to multi VQ-GLMX series lights Each time switch can connect to max 20 units VQ-GLMX series lights.The distance of Time switch and main VQ-GLMX series light can’t exceed 2 meters. The distance of VQ-GLMX series light to next one can’t exceed 0.5 meters.
- Page 14 Shenzhen VANQ Technology Co., Ltd VQ-GLCP Series THCMax Bloom Light Install the THCMax bloom light. Disassemble the power supply from MG-Octopus640/800. Put the Bloom light on the middle of the MG-Octopus640/800 and fix it tightly by screws. Re-assemble the power supply to MG-Octopus640/800, and fix it tightly by screws.
- Page 15 Shenzhen VANQ Technology Co., Ltd VQ-GLCP Series THCMax Bloom Light Installation time switch of THCMax bloom light. Same to installation of time switch to VQ-GLMX series.Please refer to 3 sector in Item 7.1. Cords connection Connect the waterproof connectors of time switch and bloom light, and connect the waterproof connectors of bloom light and MG-Octopus640/800 lights, finally tighten the threaded cap.The waterproof cords should be...
-
Page 16: Operation Guides To Time Switch Of Thcmax Bloom Light
Shenzhen VANQ Technology Co., Ltd VQ-GLCP Series THCMax Bloom Light Operation guides to time switch of THCMax bloom light User manual Chinese & English display and button names comparison 星期 Chinese 开 自动 关 上午 下午 一 二 三 四... - Page 17 Shenzhen VANQ Technology Co., Ltd VQ-GLCP Series THCMax Bloom Light Instructions 1、Operating Instructions Procedure Function Note Press“Cancel”Key Press the "Cancel" Key four times to unlock ① Press“Prog”Key Enter the Timer 1“ON” setting Note 1 ② Press“Hour”、“Min”Key Set the specific ON time [hour, minute] ③...
- Page 18 Shenzhen VANQ Technology Co., Ltd VQ-GLCP Series THCMax Bloom Light 2、Examples Example 1：THCMax Bloom Light Far red and UV should be ON during 19:00-08:00 everyday. 1） Follow procedure ①~⑤，make sure Timer 1 setting as below figure 1a show. 2） Follow procedure ⑥~⑨，make sure Timer 1 setting as below figure 1b show.
-
Page 19: Thc Max Bloom Light -Uvb Band Light Radiation Distribution Test
Shenzhen VANQ Technology Co., Ltd VQ-GLCP Series THCMax Bloom Light Time Switch Internal Circuit THC Max Bloom Light -UVB band light radiation distribution test Unit：μW/cm²... -
Page 20: Use，Storage And Disposal
The method to be adopted is at the discretion of VANQ. If repair is required, please send the product and invoice back to VANQ.Even VANQ provide warranty service for the product, the remaining warranty period is still one year from the date of purchase of the original product 2、Warranty services are not provided in the following cases...
