Chassis

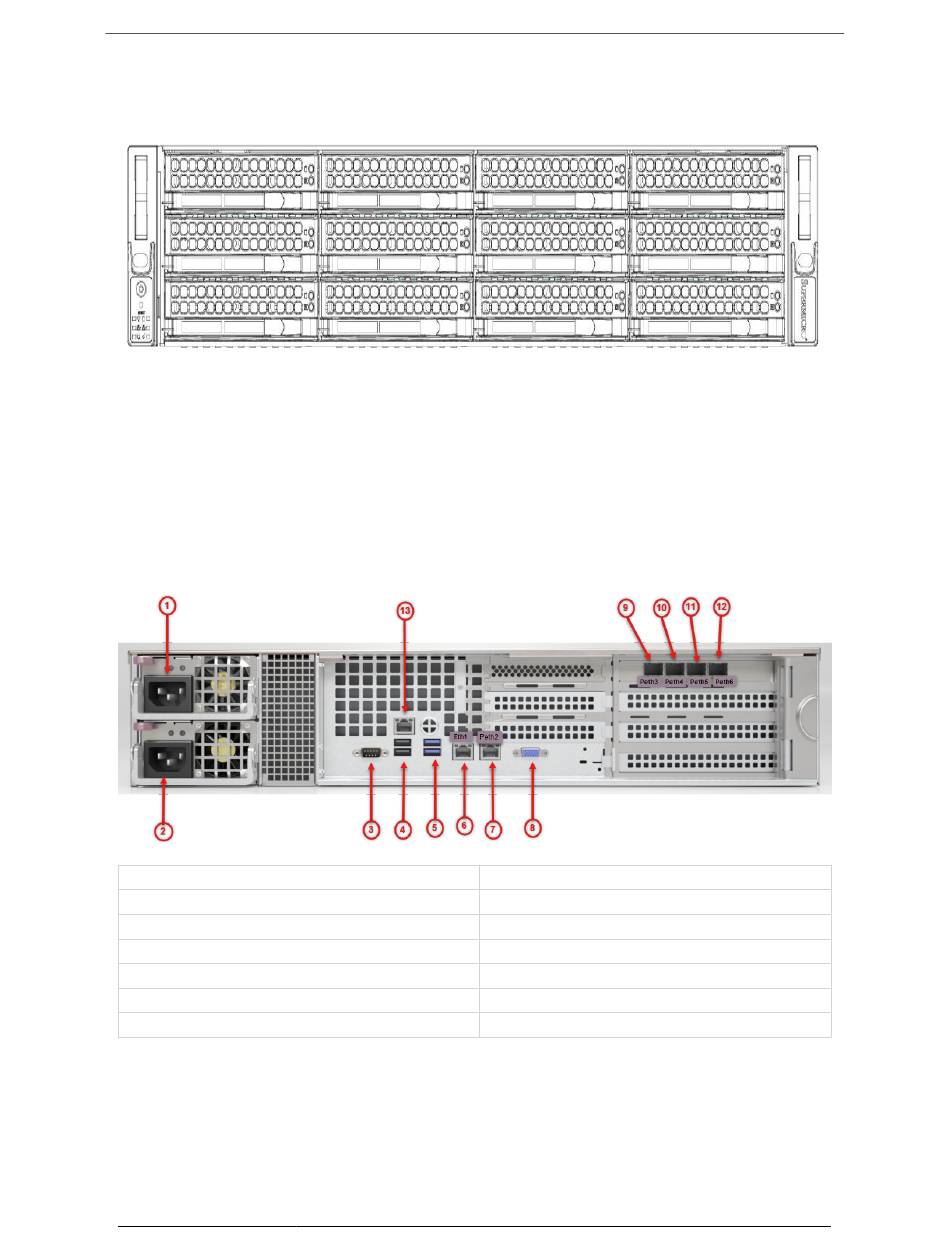

1. Disk Drive Carrier: Each carrier can house a hot-swappable disk drive. A drive
slot map displays the disk slot numbers on top of the appliance.
2. Handle Release: Press this tab to release the handle. Use the handle to pull the
disk drive carrier from the chassis.

The Rear View

1) Power Supply 1
2) Power Supply 2
3) Serial Console Port
4) USB 2.0 Port
5) USB 3.2 Port
6) ether1 (RJ45) Management 1 Port
7) pether2 (RJ45) live mode analysis 2 Port
Power
• Power: Connect your power source to this port to provide power to the appliance.
The appliance comes with one redundant power supply unit for use if the primary
unit fails.
Page 6
8) VGA Connector
9) pether3 (SFP+) SMTP interface 3 Port
10) pether4 (SFP+) SMTP interface 4 Port
11) pether5 (SFP+) SMTP interface 5 Port
12) pether6 (SFP+) SMTP interface 6 Port
13) IPMI Port
