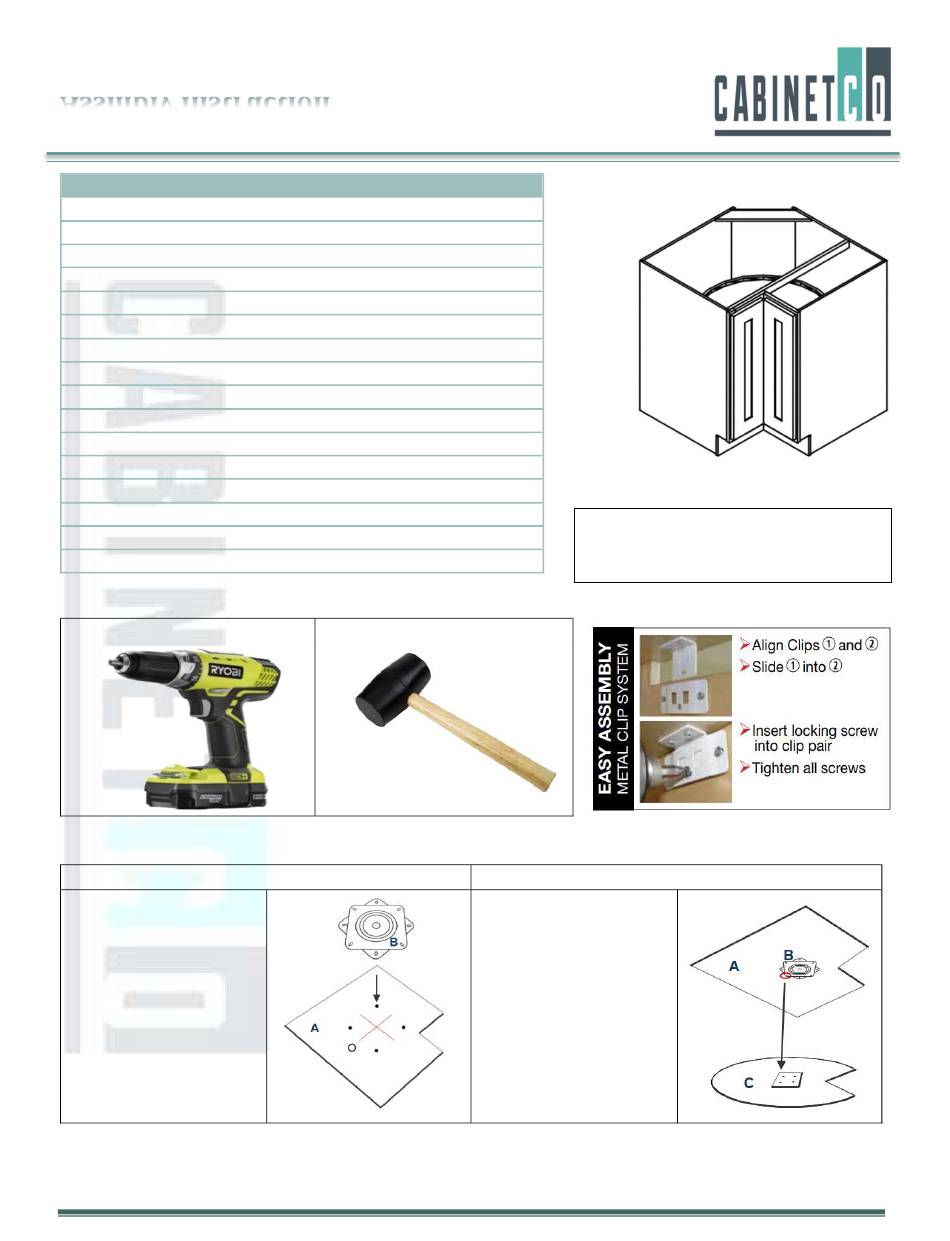

CABINETCO Lazy Susan Assembly Instructions

Assmbly Instruction
Lazy Susan
Code
A
B
C Bottom Tunetable, and squre wood board
D Middle Panel with Tunetalbe Attached
E
F
Front Side Panel (L/R)
G Front Frame Long Sticker
H
I
J
K Milldle Turntable Sticker
L
M
N
O
P
Required Tools:
Power Drill
Step-by-Step Instruction:
Step 1
Lay A flat, finished side facing
upward, find the middle point
by using pensil to draw out 2
crossing lines.
Open B (as picture) and lay it
on A , secure B on A with
screws.
**Create a larger hole for
securing screws purpose for
Step 2**
This assembly instruction is for reference only.
Description
Bottom Panel
Lazy Susan Hardware
Rear Side Panel (L/R)
Front Frame
Back Panel
Toe Kick
Front Door
Hinges Door to Door
Hinges Door to Frame
Door Magnet
Back Panel Support
Rubber Hammer
Qty.
1
1
1 + 1
1
2
2
1
2
1
2
2
2
2
2
2 (1set)
Modern Gray/Frenso Gray Shaker/Anaheim
1
Step 2
Lay C flat facing downward,
attach square board on the
middle of C
Attach A on C, using the
larger hole created from
Step 1 to secure the screws
on the C. Using the same
method to secure 4 screws
For Product lines:
Gray/Beech Espresso
Page 1
