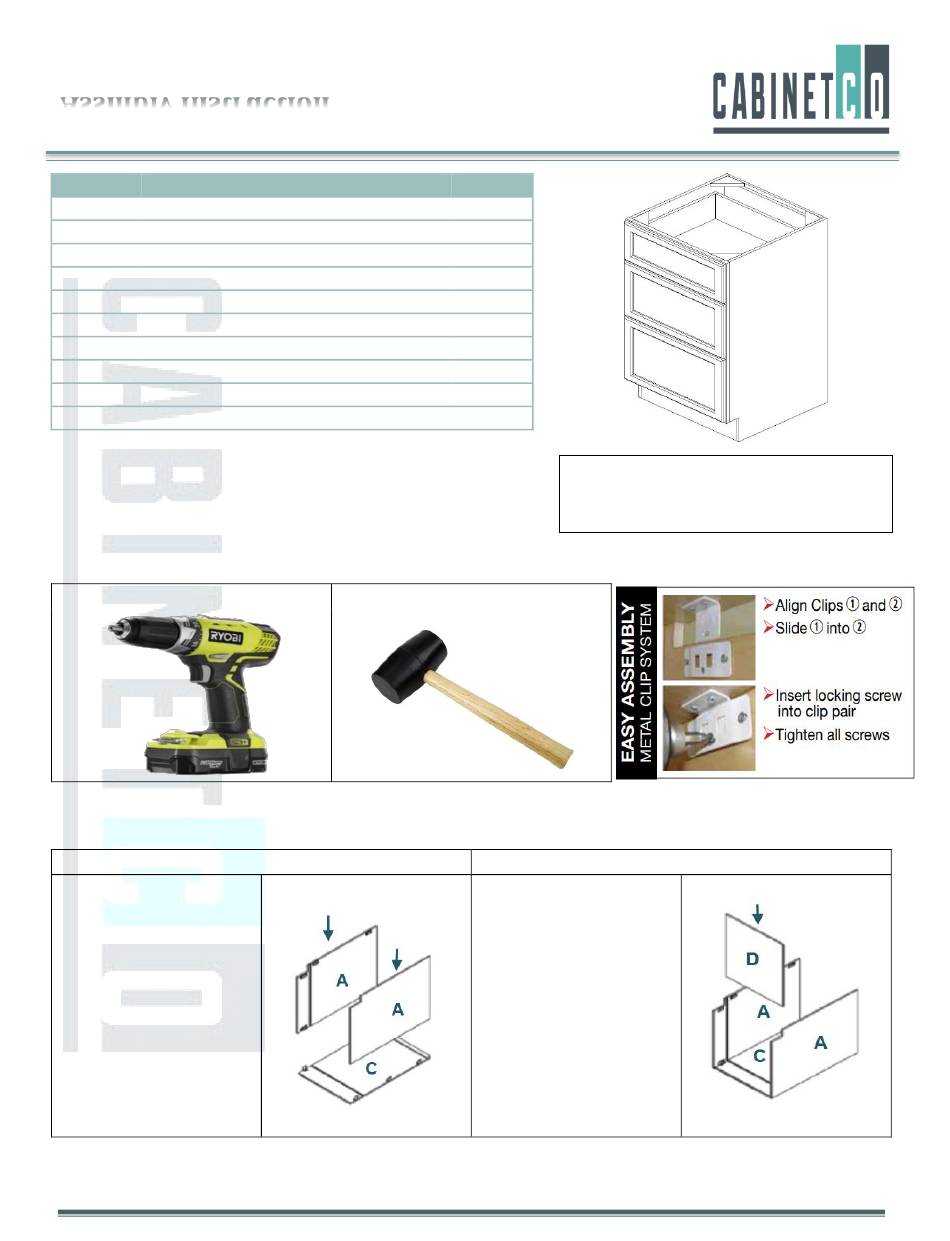

Assmbly Instruction
Drawer Base
Code
A
B
C
D
E
F
Drawer Box (Side/bottom panels)
G
H
I
Plastic Slider holder
J
Support Bracket (wooden)
Required Tools:
Power Drill
Step-by-Step Instruction:
Step 1
Lay back panel (C) flat,
grooves facing upward
Insert Side panel (A) on (C)
and secure with metal clips
(Refer to Metal clip system
above)
This assembly instruction is for reference only.
Description
Side Panel (L/R)
Face Frame
Back Panel
Bottom Panel
Toe Kick
Drawer Face
Sliders & Adapter
Rubber Hammer
Qty.
2
1
1
1
1
3 sets
3
3 sets
6
4
Modern Gray/Frenso Gray Shaker/Anaheim
Gray/Beech Espresso/Cinnamon Shaker
Step 2
Slide bottom panel (D) into
grooves of (A) and (C)
For Product lines:
Page 1
Advertisement
Related Manuals for CABINETCO Modern Gray Series
Summary of Contents for CABINETCO Modern Gray Series
- Page 1 Assmbly Instruction Drawer Base Code Description Qty. Side Panel (L/R) Face Frame Back Panel Bottom Panel Toe Kick Drawer Box (Side/bottom panels) 3 sets Drawer Face Sliders & Adapter 3 sets Plastic Slider holder Support Bracket (wooden) For Product lines: Modern Gray/Frenso Gray Shaker/Anaheim Gray/Beech Espresso/Cinnamon Shaker Required Tools:...
- Page 2 Assmbly Instruction Drawer Base Step 3 Step 4 Attach Front frame (B) onto Attach Toe kick (E) onto bottom front of (A) (Referal to metal clip (Referal to metal clip system above) system above) Step 5 Step 6 Assemble the drawer box by Screw both rear slider using Rubber Hammer holder brackets (I) into pre-...
- Page 3 Assmbly Instruction Drawer Base Step 9 Attach Drawer face (G) onto drawer front Place Wooden support brackets (J) into corners of A, B, C This assembly instruction is for reference only. Page 3...
