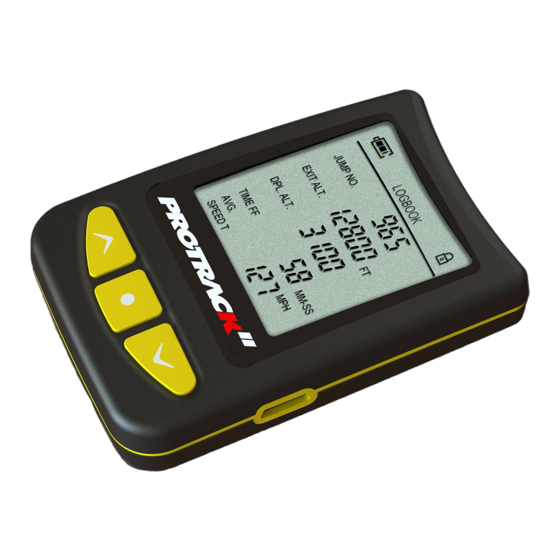

Altimeters PROTRACKII Quick Manual

QUICK GUIDE
Power OFF
REV. 02, OCTOBER 2022
To avoid any unintentional changes, all settings
are "locked" behind an ACCESS procedure.
ACCESS is required to unlock and change any
settings.
and clock while in
ACCESS
1 Press and release the mode
button – the lock icon turns off
2 When the lock icon reappears,
immediately press and hold the ■ Change altitude
mode button – the lock icon
turns off again
3 When the lock icon reappears,
release the mode button .
- The PROTRACK II™ is now in
ACCESS.
Note: The PROTRACK II™ exits ACCESS and returns
to the Main Window if no button has been pressed
within 30 seconds. ALL functions (except Power ON)
can be performed ONLY when the PROTRACK II™ is in
ACCESS mode.
In main window In main window In main window
toggle left perform ACCESS toggle right
In sub-menu In sub-menu In sub-menu
increase value set/next menu decrease value
WARNING
This Road Map does not replace the
PROTRACK II™ Manual nor releases the
user from the obligation to comply with the
contents of the PROTRACK II™ Manual.
USB Mode
If a USB host device is connected to the PROTACK II™ USB port, the
PROTRACK II™ will act as a USB slave and show "USB" on the LCD display.
Visit www.lbaltimeters.com for applications that support PROTRACK II™.
Error Mode
When the PROTRACK II™ detects a fault, an error ("ERR") sign, number, and
code is displayed. At the same time the unit beeps once every minute.
All faults indicate that the PROTRACK II™ is defective.
Remedy: Replace batteries or perform reset.
If the unit does not function correctly even after replacing the batteries and
pressing reset, please contact your local dealer or LB Altimeters.
Visit lbaltimeters.com Instructional videos
for manual and YouTube
and support channel
In "Ground Mode" and if "ECO Mode" is enabled, The PROTRACK II™
automatically switches off 14 hours after the last jump or 14 hours after
pressing any button, whichever comes last.
The PROTRACK II™ can also be manually powered off from the Setup
Window, to further extend the battery life when not in use.
Note: When switched off, the PROTRACK II™ can not be used for jumping.
Customer settings are not lost when the unit is switched off.
Climb to Altitude High Speed Warnings
Flight Mode Warnings (CL) (HI)
MM-DD
HH-MM
Displays altitude 4 "climb to warning" banks. 4 "high speed warning" banks.
Each bank supports up to 4 Each bank supports up to 4
flight mode warning altitudes warning altitudes
ACCESS ACCESS ACCESS
Altitude Offset Climb to altitude High speed
warning options warning options
■ Select bank ■ Select bank
■ Set or disable ■ Set or disable
warnings warnings
■ Set volume ■ Set volume
■ Set pitch ■ Set pitch
■ Hear selected ■ Hear selected
warnings, volume warnings, volume
and pitch and pitch
Power ON
The PROTRACK II™ has been turned
off prior to shipping from our factory.
To turn the power on, press and hold
any key until the unit beeps, then
release the key.
Device Info
When starting up, the PROTRACK II™
Battery capacity in mVolt
runs a self-test and beeps three times
Barometric pressure in mBar (hPa)
while flashing the screen twice.
Temperature (Celcius or Fahrenheit)
It then displays device info.
Free logbook storage in percent
Firmware version
Low Speed
Decent Warnings (LO) Logbook
4 "low speed warning" banks. Displays all stored
Each bank supports up to 4 jumps
warning altitudes
ACCESS ACCESS
Low speed Logbook options
warning options
■ Select bank Logbook screen 1
■ Set or disable ■ Jump number
warnings ■ Exit altitude
■ Set volume ■ Deployment altitude
■ Set pitch ■ Freefall time
■ Hear selected ■ Speeds (scrolls
warnings, volume through AVG, MAX,
and pitch 1st, and 2nd half)
Logbook screen 2
■ Jump number
■ Year for the jump
■ Month and date for
the jump
■ Hours and minutes
for the jump
■ Dive type
Logbook screen 3
■ Jump number
■ Altitude at time
■ Freefall and canopy
status
■ Time after exit in
seconds
■ Speed at time
Press to "Delete
last jump" window
Press to view
"Remaining logbook
storage" window
Error number
Error code
Ground Mode
To save battery power, after power up and shortly after landing the PROTRACK II™ enters "Ground
Mode". In this mode, 60 seconds after last button pressed, the display will switch off. However, the
PROTRACK II™ is still ready for jumping.
Flight Mode
Shortly after takeoff the PROTRACK II™ switches to "Flight Mode" and displays the "Flight Mode"
window. At the lowest preset "Climb to altitude" (factory preset to 1,000 feet), the PROTRACK II™
sounds a sequence of beeps. These beeps have two functions:
1. The beeps indicate that the PROTRACK II™ has calibrated itself to the local ground elevation and
is ready to jump.
2. The number of beeps indicate the altitude at which the high speed warning is set; for example: If
set to 4,500 feet, the sequence will be beep-beep-beep-beep (pause) beep. The number of rapid-
sequence beeps indicate the highest warning altitude in thousands of feet. The beep after the pause
(if any) signifies a 500-foot increment.
Should the battery voltage of the PROTRACK II™ be low, the beep sequence is followed by 5 short
beeps. This indicates that the battery should be replaced.
Logbook Total Clock
Displays any stored Date and time in Setup options
logbook totals device. Displays in
either 12 or 24 Hrs
ACCESS ACCESS ACCESS
Logbook total Clock options Setup options
options ( is factory defaults)
■ Set total number of ■ Set year ■ Power OFF
jumps ■ Set month ■ AUT / ECO
■ Set total hours ■ Set day ■ Beep on / off
■ Set total minutes ■ Set 12/24 hr clock ■ Dive type*
■ Set total seconds ■ Set hour ■ TAS / SAS
■ Delete complete ■ Set minutes ■ Feet / Meters
logbook ■ MPH / KM/H
■ Celcius / Fahrenheit
Caution ■ Reset to factory
Once the logbook is default
deleted there is no
way to restore the
information.
*Dive types:
■ ----- (Normal)
Press to view
■ 3-SEC
"Remaining logbook
In 3-SEC mode the descent rate parameters are more sensitive, allowing
storage" window
detection of short freefall (>3 sec. freefall) for logbook exit generation.
See manual for important notes.
■ SLO (Slow)
In SLO mode the deployment parameters are more sensitive. Supports slow
falling types of dives, like normal wing suit dives etc.
■ S-SLO (Super slow)
In S-SLO mode the exit and deployment parameters are more sensitive. This
mode is for very slow wing suit dives, fast canopy descents, extreme relative
work (XWR) etc. All "high speed warnings" are enabled regardless of the
vertical air speed at the preset altitude. See manual for important notes.
Firmware version
Setup
and serial number
Press and
hold
> 5 seconds
