Summary of Contents for Babytone S1
- Page 1 制作工艺： 80g书写纸；骑马钉，黑白印刷 尺寸: 95*147mm 此页不印刷...
- Page 2 Baby Sleep Monitor Contact us: service@getbabytone.com Website: www.getbabytone.com User Manual...
-
Page 3: Table Of Contents
Contents NOTICE ................1 Tips for Safe Sleep ............1 Warnings and Cautions ..........1 Unpacking ..............2 Using the device and App ..........2 Maintenance ..............7 Troubleshooting ............8 Specifications ..............9 Symbols............... 10... -
Page 4: Notice
NOTICE This product is not a medical device. It is not intended for use as a medical device or to replace a medical device. It does not and is not intended to diagnose, cure, treat, alleviate or prevent any disease or health condition or investigate, replace or modify anatomy or any physiological process. -
Page 5: Unpacking
without consulting your doctor. In particular, do not start taking any new medication or change the type and/or dosage of any existing medication without prior approval. Use only cables, sensors and other accessories specified in this manual. Prolonged using may increase the risk of undesirable changes in skin ... - Page 6 Press the side button for 2 seconds. POWER OFF: 3 ways: Press the side button for 2 seconds. Unplug the sensor cable, it will power off automatically if not connected to phone for 2 minutes. Even with sensor cable connected, it will power off ...
- Page 7 A. Place the foot wrap on the foot (either foot works), with the sensor part running on the outside edge of the foot. The device should be oriented to the baby’s leg. Put the foot wrap around the foot and attach the velcro securely with no gap between the foot wrap and the baby’s skin.
- Page 8 Start working After the placement, press the side button for 2 seconds to power on. There should be red light inside the soft wrap. After a few seconds, readings will be displayed on the screen. If the screen display “poor signal”, please check if the sensor has been positioned and secured properly.
- Page 9 Stop working Unplug the sensor cable, the countdown on the screen will begin. During the countdown, if you plug the sensor cable again, the record will be resumed. Notice: If the working time is less than 2 minutes, there will be ...
-
Page 10: Maintenance
Add a new device For the initial use, you need to add a new device. Turn on device, run App, select <Baby Sleep Monitor>. Follow the App instruction to add the new device. 4.10 App Offline Mode | Multiple Devices If you enter App Offline Mode, you can view history data, in App Settings->Select Device, you can select device if you have multiple devices. -
Page 11: Troubleshooting
Troubleshooting Problem Possible Cause Possible Solution the sensor is not check if the sensor has been positioned and positioned and secured secured properly properly No readings on screen Baby is moving It will recover when at rest frequently Charge battery and try Battery may be low. -
Page 12: Specifications
Specifications Environmental Operating Storage Temperature 5 to 40°C -25 to 70°C Relative humidity 10% to 95% 10% to 95% (noncondensing) Barometric 700 to 1060hPa 700 to 1060hPa Degree of dust & IP22 water resistance Weight 31g (main unit with band and sensor) Size 49×27×14 mm (main unit) Battery... -
Page 13: Symbols
Symbols Symbol Description Manufacturer Date of manufacture Serial number Indicates a device that is not to be disposed of as unsorted municipal waste. Follow Instructions for Use. MRI unsafe. Presents hazards in all MR environments as device contains strongly ferromagnetic materials. IP22 Resistant to liquid ingress This product complies with the rules and regulations of... - Page 14 FCC Statement FCC Warning: FCC ID: 2ADXK-1661 Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including...
- Page 15 ViHealth Shenzhen Viatom Technology Co., Ltd 4E, Building 3, Tingwei Industrial Park, No.6 Liufang Road, Block 67, Xin'an Street, Baoan District, Shenzhen, 518101, Guangdong, China Product name: Baby sleep monitor Model: S1 PN: 255-05170-00 Version: A Date: May. 2022...
Need help?
Do you have a question about the S1 and is the answer not in the manual?
Questions and answers

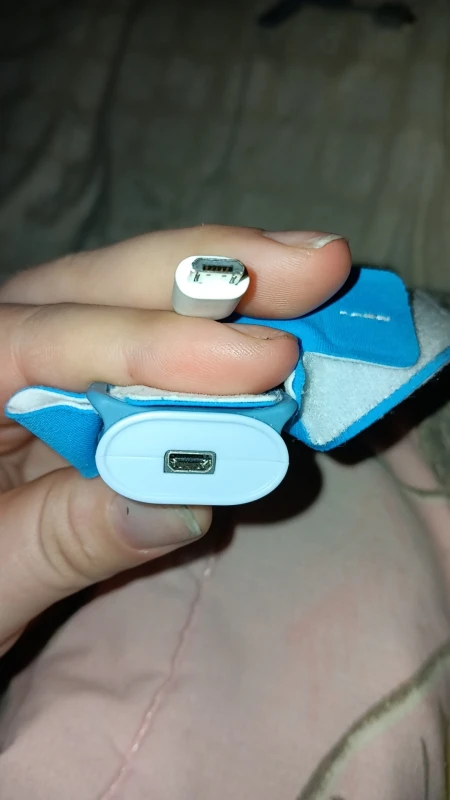

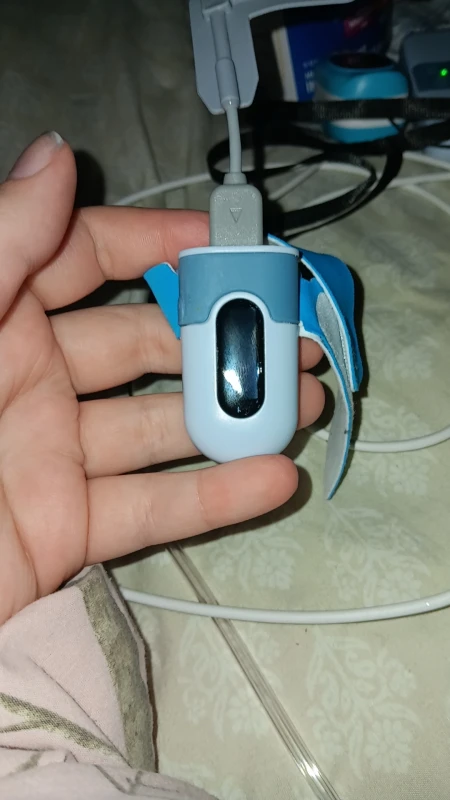

Neither cables I received fit into the monitor to charge it???????? How do I charge it, I can charge the base no problem but not the monitor??
To charge the Babytone S1 monitor, connect the D-Type USB charge data cable to your computer's USB port or to a USB power adapter plugged into a wall outlet.
This answer is automatically generated
@Mr. Anderson I've tried. This is the cord that doesn't even fit into it. The other cord that came with was a type C and so that doesn't fit either. I'm so lost.
