ecoey FJ156A-H14 User Manual

Model: FJ156A-H14
WiFi Water Detector & Alarm
User Manual
• Power Supply : DC 2 x 1.5v AA Alkaline battery
• Standby Current : <10µA
• Alarm Current : <100mA
• Waterproof Grade : IP65
• Communication Protocol : 2.4GHz 802.11 b/g/n
• Wireless Distance : >100 meters
• Alarm Volume : ≥85dB (A) at 1 meter
• Operation Ambient Condtion: 4 – 38 °C, <80% RH
• Alarm Volume : ≥85dB (A) at 1 mete
• Alarm Sound Pattern: 3 short beeps, pause 5s, with red LED flash
PRODUCT DESCRIPTION
The WiFi Water Detector and Alarm works on all surface types, hard and soft , such
as carpet, tiles, vinyl, timber etc. When water causes the 2 sensing probes to be
short circuited, the water alarm will sound.
You can use the water alarm as a standalone device, or as part of a greater network
of ECOEY Sensors and Automstion products (when paired to the Tuya smart APP).
For example, when paired with a ECOEY Valve if the water alarm is activated, it
could automatically turn off the main water supply valve and send an alert to the
registered mobile device.
Through the Smart Phone APP you can also view live status updates such as battery
level and signal strength.
Note: This is a water detector only, it will provide early warning. It can not shut off
the water flow.
INSTALLATION

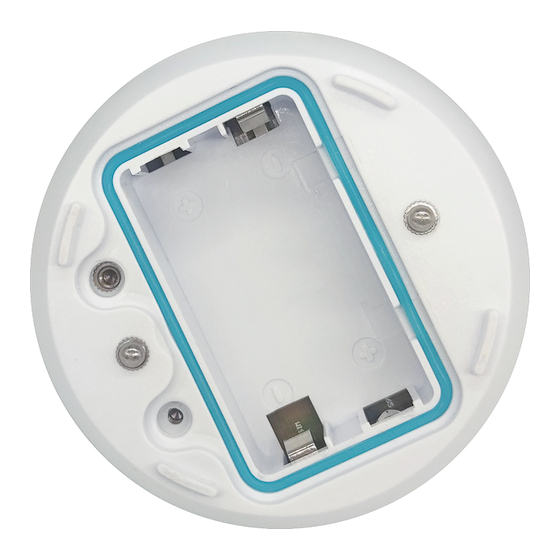

Put the blue rubber ring in the groove of the battery case, then put the battery on,
and finally put the lid on.
insert
RECOMMENDED INSTALLATION LOCATIONS
The following is a list of recommended locations to place your ECOEY Water Alarm.
The water alarm should be installed in any location that is at risk of damage should
a water leak occur.
• •
Washing Machine Water Heaters
• •
Dishwasher Toilet
• •
Sinks and Tubs Humidifiers
• •
Bathroom/Laundry Ice & Water Dispenser (Fridge)
Note: Be sure that the sensing probes are placed flat on the floor
