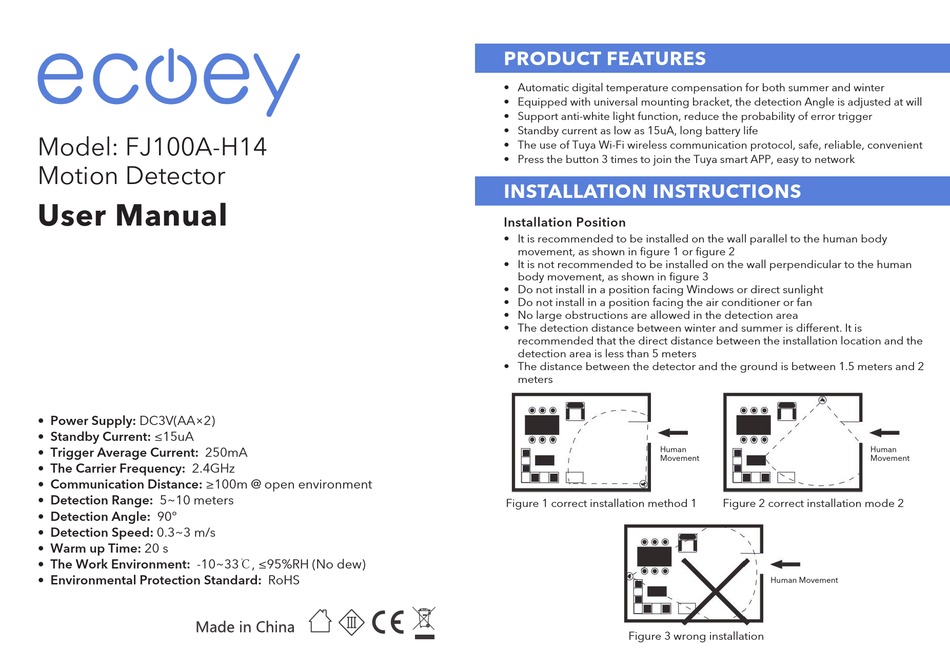

ecoey FJ100A-H14 User Manual

Model: FJ100A-H14
Motion Detector
User Manual
• Power Supply: DC3V(AA×2)
• Standby Current: ≤15uA
• Trigger Average Current: 250mA
• The Carrier Frequency: 2.4GHz
• Communication Distance: ≥100m @ open environment
• Detection Range: 5~10 meters
• Detection Angle: 90°
• Detection Speed: 0.3~3 m/s
• Warm up Time: 20 s
• The Work Environment: -10~33℃, ≤95%RH (No dew)
• Environmental Protection Standard: RoHS

PRODUCT FEATURES

• Automatic digital temperature compensation for both summer and winter
• Equipped with universal mounting bracket, the detection Angle is adjusted at will
• Support anti-white light function, reduce the probability of error trigger
• Standby current as low as 15uA, long battery life
• The use of Tuya Wi-Fi wireless communication protocol, safe, reliable, convenient
• Press the button 3 times to join the Tuya smart APP, easy to network

INSTALLATION INSTRUCTIONS

Installation Position

• It is recommended to be installed on the wall parallel to the human body
movement, as shown in figure 1 or figure 2
• It is not recommended to be installed on the wall perpendicular to the human
body movement, as shown in figure 3
• Do not install in a position facing Windows or direct sunlight
• Do not install in a position facing the air conditioner or fan
• No large obstructions are allowed in the detection area
• The detection distance between winter and summer is different. It is
recommended that the direct distance between the installation location and the
detection area is less than 5 meters
• The distance between the detector and the ground is between 1.5 meters and 2
meters
Human
Movement
Figure 1 correct installation method 1
Figure 3 wrong installation
Human
Movement
Figure 2 correct installation mode 2
Human Movement
