Integra 201-33 Instruction Sheet

P/N 1030-084 | REV. C 09/22 | INSTRUCTION SHEET

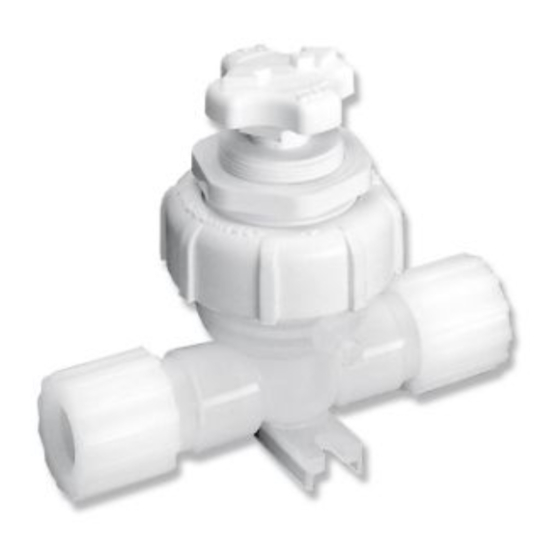

Integra
®
Diaphragm Valves
⁄ " Orifice, 2-Way,
1 1
2 2
Manual Design
( ⁄ -Turn Actuator Version)
1 1
4 4
REPAIR INSTRUCTIONS
—
For models:
201-33, 201-34, 201-35, 201-36, 201-
37, 201-36-SI, 201-36-SO, 201-37-SI,
201-37-SO, 201-33-01, 201-34-01,
201-35-01, 201-36-01, 201-37-01,
201-36-SI-01, 201-36-SO-01, 201-
37-SI-01, 201-37-SO-01
REPAIR PROCEDURE – DISASSEMBLY
—
1. Begin disassembly by referring to Fig. 1.
Remove the screw (P2) and discard.
2. Remove the handle (P3) by pulling up
on it.
3. Remove half-nut (P11) by turning
counterclockwise.
4. Turn the adjustment nut (P4) counter-
clockwise two turns with the 1"
open-end wrench (S5).
5. Remove the outer cap (P5) with the
outer cap wrench (T1) by turning it
slowly in a counterclockwise direction.
6. Remove the inner cap (P6), washer (P7),
and upper stem (P8).
Manually Operated
Apply
lubricant

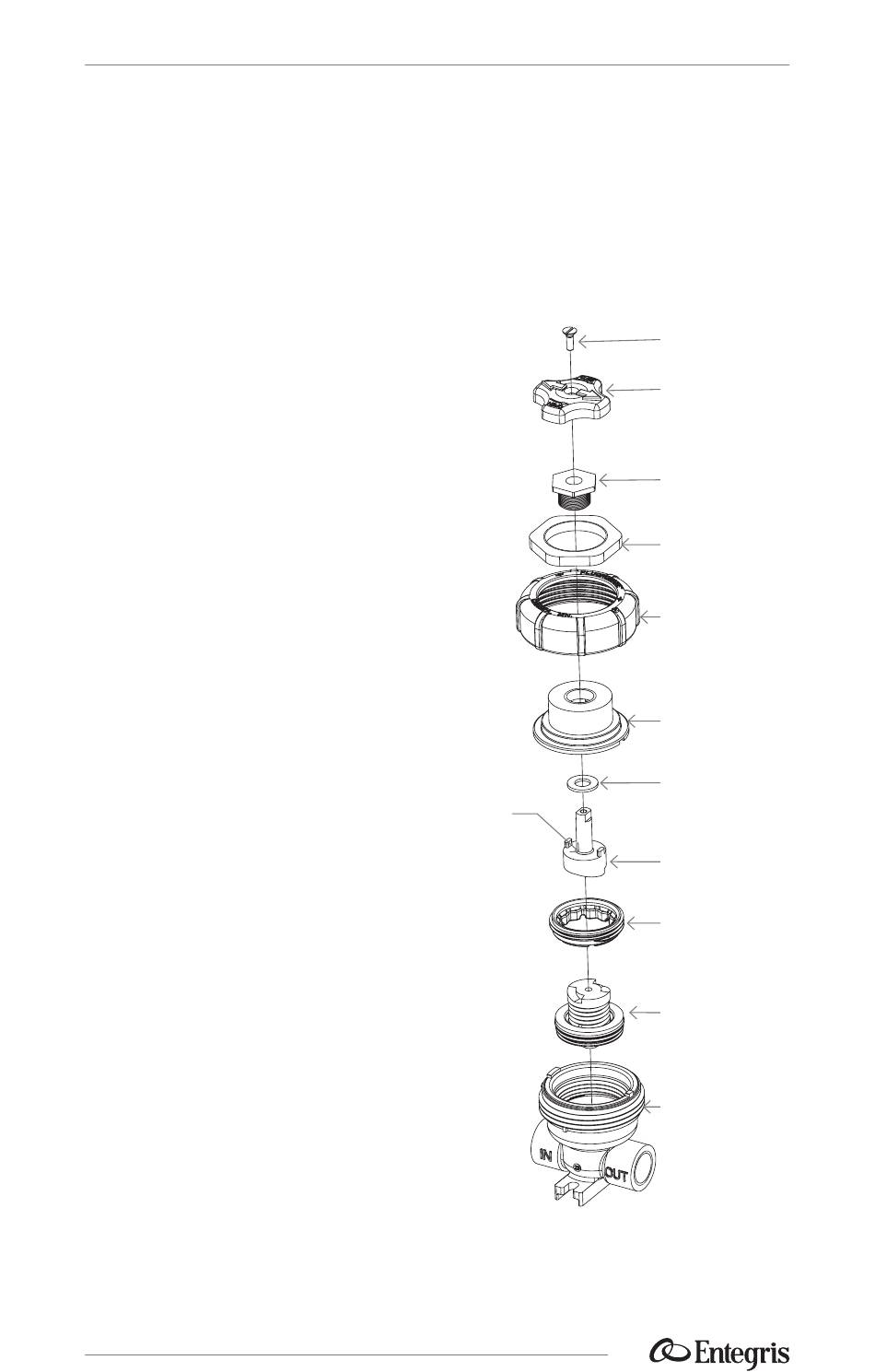

Figure 1. *Repair kit parts.
P2 Screw*
P3 Handle
P4 Adjustment nut
P11 Half nut
P5 Outer cap
P6 Inner cap
P7 Washer
P8 Upper stem
P9 Retainer nut
P1 Diaphragm/
retainer assembly*
P10 Body
