VHD DB-Se36 Quick Start Manual

Specification

Model DB-Se36
Pick up Element 1/3" SONY EXview HAD CCD
Effective Picture Elements
NTSC:976(H)×494(V) PAL:976(H)x582(V)
(H×V)
Horizontal Resolution 700 TV Line
0.001 Lux
Minimum Illumination
0Lux (with IR LED ON)
S/N Ratio
52dB
Scanning System 2:1 interface
Synchronous System Internal, Negative sync.
Auto Electronic Shutter NTSC: 1/60s~1/100,000s, PAL: 1/50s~1/100,000s
Gama Characteristic 0.45
IR Distance 20 Meters (with ￠5X24 PCS Infrared LED)
Video Output 1Vpp, 75Ω
Auto Gain Control Auto
Power/Current DC12V(+/-10%)/350mA
Lens Board Lens 3.6mm/F2.0
Dimension (mm)
￠94x 80(H)
Weight (g)
Storage Temperature
-30~+60℃ RH95% MAX
Operating Temperature
-10~+45℃ RH95% MAX

Packing List

No
Name
1.

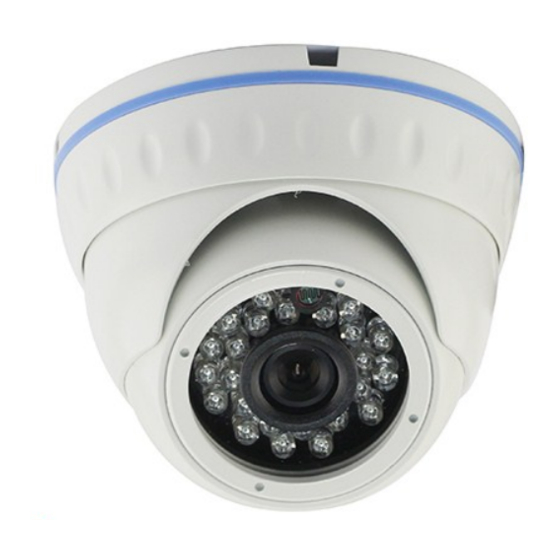

Vandalproof IR Dome Color Camera
2.
User Guide
II
450
Model Number
DB-Se36 1
DB-Se36 1
DB-Se36 Color Camera
Vandalproof IR Dome Color Camera
Note:
Before providing power for the
camera, please read this User Guide in
detail!
Do not attempt to disassemble the camera.
If the camera can not work, please contact
local franchiser or our company.
