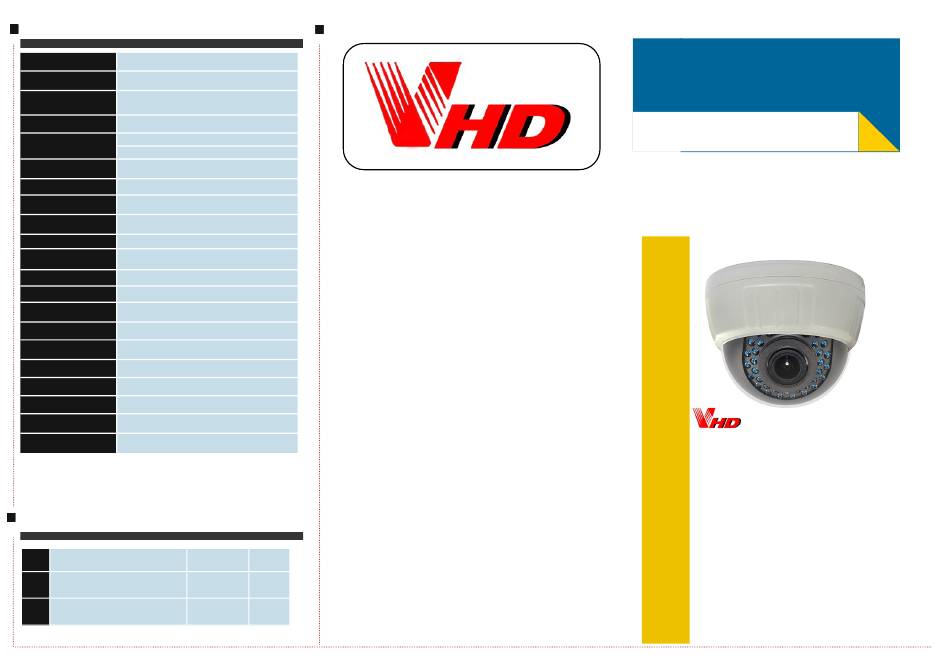

VHD DC-S2812 Quick Start Manual

Specification
Model DC-S2812
Pick up Element 1/3" SONY Super HAD CCD II
Effective Picture Elements
NTSC:768(H)×494(V) PAL:752(H)x582(V)
(H×V)
Horizontal Resolution 650 TV Line
0.001 Lux
Minimum Illumination
0Lux (with IR LED ON)
S/N Ratio More than 50dB
Scanning System 2:1 interface
Synchronous System Internal, Negative sync.
Auto Electronic Shutter NTSC: 1/60s~1/100,000s, PAL: 1/50s~1/100,000s
Gama Characteristic 0.45
IR Distance
25 Meters (with ￠5X30PCS Infrared LED)
IR Status Under 10Lux by CDS
IR Power On
CDS AUTO Control
Video Output
1Vpp, 75Ω
Auto Gain Control Auto
DC12V (+/-10%)/650mA
Power/Current
Lens 2.8-12mm Manual Zoom Lens
Dimension (mm) ￠130 x 101(H)mm
Weight (g)
Storage Temperature
-30~+60℃ RH95% MAX
Operating Temperature -10~+45℃ RH95% MAX
Packing List
No
Name
1.

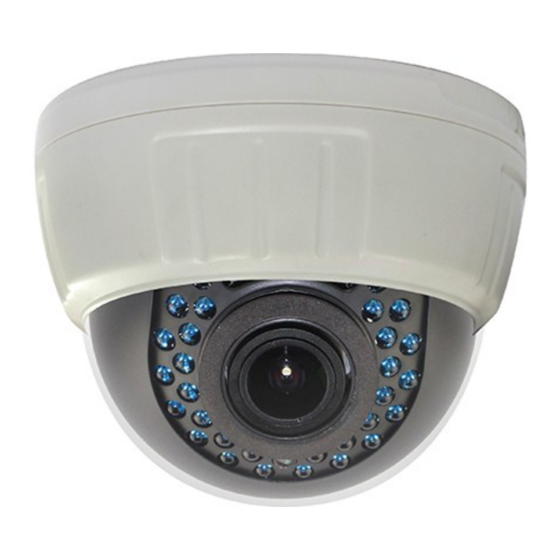

4.5'' Plastic Dome Camera
2.
User Guide
900
Model Number
DC-S2812 1
DC-S2812 1
DC-S2812 Color Camera
4.5'' Plastic Dome Camera
Note:
Before providing power for the
camera, please read this User Guide in
detail!
Do not attempt to disassemble the camera.
If the camera can not work, please contact
local franchiser or our company.
