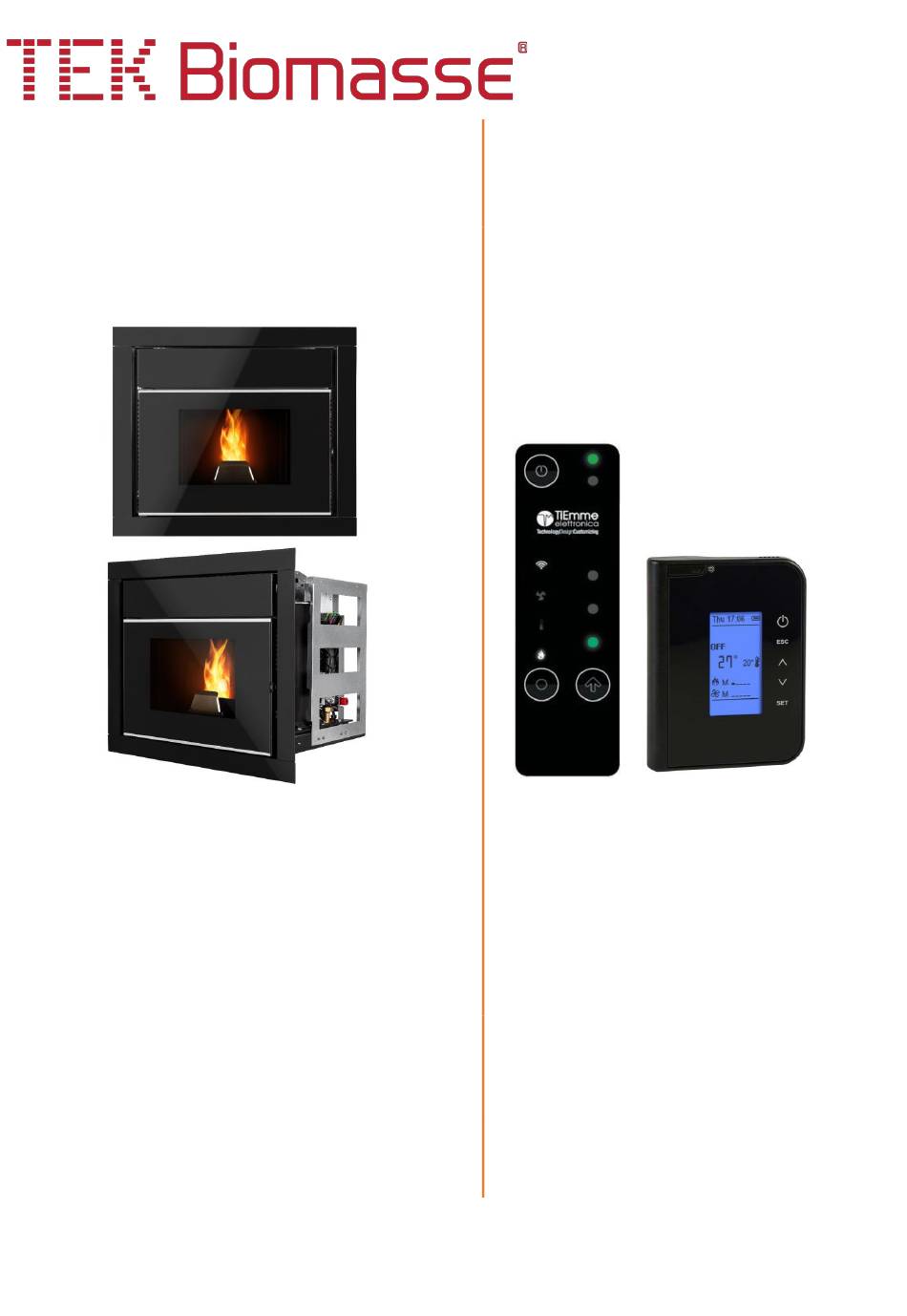

- Page 1 AQUATEK All the advantages. A single fireplace insert Pellet fireplace for central heating Wikey 2Ways2+ Instruction Manual TEK Biomasse ® 2021 TMNG01 EN220712...
-
Page 2: Table Of Contents
Index Technical Board ......16 WIKEY control panel functions ..17 General considerations ......2 2Ways2+ Remote Command ....18 Symbology ........2 Screen ........... 18 Use ..........2 Control panel ........19 Packaging of documentation ....2 9.2.1. The keys ........19 Security warnings ........2 9.2.2. -
Page 3: General Considerations
1. G ENERAL CONSIDERATIONS The instructions contained in this manual must be followed, both by the Technician (Installer, TEK Biomasse ® is a registered trademark, whose Maintenance) and by the User. Some of the air conditioning equipment is manufactured by warnings, if not followed, void the warranty Vitor Monteiro Lda. -
Page 4: User
• Make sure that the workplace is in a safe • When normal operation, never condition to perform the installation; disconnect appliance from electrical supply; • To perform the installation, the installer must be in full psychophysical conditions; • If you are not going to use the stove for a long period of time, disconnect the power •... -
Page 5: Legal Guarantee
• Clean the equipment only when it is fires, failures resulting from the electrical completely cold and turned off; or hydraulic network. • The ash compartment must not be opened The following items subject to normal wear and while the stove is in operation. Wait for it tear are not covered by the warranty: to stop and cool down completely to clean •... -
Page 6: Fuel Characteristics
The pellet supply must only be carried out Fuel characteristics through the feed door that gives access to the load compartment. Pellets are produced by pressing wood chips and sawdust. They are obtained without the addition of any foreign substance, such as adhesives, lacquers or synthetic substances. -
Page 7: Installation Guide
The stove's packaging must not be impacted or During installation, structures, coverings, beams, hit by other objects or equipment, under penalty etc., must be protected from combustible or of causing damage that will compromise the flammable material and which are exposed to stove's future operation. -
Page 8: Smoke Evacuation Duct
Correct combustion The horizontal sections must not be longer than 1.5 meters with a slope of at least 5%. Bright flame with light yellow color and minimum The chimney outlet must comply with EN 1856-2 amount of pellets in the for built-in masonry chimneys and EN 1856-1 for brazier insulated outdoor chimneys. -
Page 9: Assembly Scheme
Assembly Scheme The Aquatek stove is a pellet stove for central heating, so it can never be used without water circulation, under penalty of structural damage. 7.6.1. Basic installation The stove must be installed on the mounting structure as shown in the images below. - Page 10 Figure 4- To open, place the key, activate the opening system and pull the stove Install and screw the laying structure, install the 80mm diameter pipe that comes with the equipment and adapt it to a diameter equal to or greater than 120mm and connect the 50mm diameter air intake to the outside if you want a watertight installation or if there are extractors/ extractor hoods in the room where your stove will be installed.
- Page 11 Figure 6- After removing the stove, assemble the frame Figure 7- Fixing the frame to the wall Having all the basic components, chimney, air intake, frame and frame installed and adjusted, you can mount the fireplace on the slides. Pull the slides out until they are fully extracted.
- Page 12 Figure 8– How to advance the slides Place the appliance on the slides as dismantled and shown in Figure 4- To open, place the key, activate the opening system and pull the stoveon page 9 Figure 9- Put the stove back in place and close Note: When closing, check that the closing system has been properly locked.
- Page 13 The use of rock wool or other similar material that is not properly insulated will release fibers and contaminate breathing air. Figure 10- Plasterboard board Figure 11- Norms of the gratings that must be installed in the masonry box for cooling the stove. Minimum dimensions 200X150mm...
-
Page 14: Smoke Duct
7.6.2. Smoke duct Whenever the smoke duct exceeds 5m in height, its section must be Ø140mm or higher. It is recommended to use a double-walled smoke duct in the outdoor area. Horizontal smoke outlets ending on the wall are not allowed. Figure 12- Smoke exhaust duct requirements Figure 13- Standard for vertical installation... -
Page 15: Hydraulic Installation
Hydraulic installation The boilers and stoves for central heating are equipped with a complete hydraulic kit, with a 2 bar safety valve, circulating pump, non-return valve and a 6 liter expansion vessel. The connection to the hydraulic network must be carried out as shown in the image below. -
Page 16: Installation Configuration Technical Parameters
In an installation with a DHW accumulator tank, Electrical installation the control of the 3-way valve must be done by the thermostat of the DHW tank, this is not a Installation must be carried out function of the equipment, but an option not qualified personnel supplied, which the installer can add to the... -
Page 17: Use Of The Stove
8. U SE OF THE STOVE Lighting Watch videos on using and maintaining your equipment at www.tekbiomasse.com The stove is switched on by pressing the ON/OFF key for 3s. The word “Activation” will appear on the display Useful information until ignition is complete. This process will take an average of 5 to 12 min. -
Page 18: Wikey Control Panel Functions
WIKEY control panel functions L1 multicolor led: • BLUE: System Off • GREEN: System On • Flashing GREEN: System Ignition or Extinguishing • RED alternating with the other two colors: System in Error L2: Maintenance • Fixed: Connected to the local WIFI network •... -
Page 19: Ways2+ Remote Command
9. 2W 2+ R EMOTE OMMAND The radio remote control thermostat manages the operation of the boiler and monitors the operating status in real time. The main features are: • System remote control • Room thermostat • Management of operating and control parameters Attention: The system operates on the 868.3MHz ISM radio band. -
Page 20: Control Panel
Control panel 9.2.1. The keys Occupation Descriptive On / off Turn the boiler on and off by pressing the button for 3 seconds Unlock System unlock by pressing the key for 3 seconds Exit menu Enter Submenu, edit and save data Change ambient Radio thermostat temperature modification... -
Page 21: Menu
9.2.2. Menu To enter the menu press the SET key. A list of available submenus appears by pressing, selecting the desired submenu and pressing SET again, the desired parameters will be displayed: Submenu Auger System Menu Auger 1.0_________ Parameter code Auger______ Combustion Fan Combustion Fan 2... -
Page 22: User Menu
9.2.4. User menu Menu Descriptive Power Combustion management Allows you to modify the combustion power of the system in pellet mode. It can be set to automatic or manual mode. In the first case, the system chooses the combustion power. In the second case, the user selects the desired power. The combustion mode (a = automatic combustion, m = manual combustion) and the system's working power level are indicated on the left side of the display. - Page 23 Auger working time [s] (Only visible Auger Current combustion recipe [ nr ] ( Revenue Only visible if >1) Product code Product Code: 537 FSYSI01000060.0.0 Firmware code and version Remote Control firmware code and FSYSC03000006.0.0 version Manual loading Function for filling the auger on the first start-up, or after a start-up failure due to an empty hopper.
- Page 24 Exit Radio Test This Menu is used to test the connection between the radio terminal and the boiler controller, thus checking the level of electromagnetic pollution. The Radio Terminal enters continuous transmission and counts correct and failed responses. The signal quality depends on the number of errors (misses). Change code (only if it is necessary to pair different boilers with different thermostats in the same area) Code change allows the remote control to be matched to the boiler, so that a...
-
Page 25: Chrono Menu
Test Outputs Output Tests Menu Menu restore values Restore Factory Values parameters set by the manufacturer Chrono Menu Menu to set the start and end time of work in heating mode. 9.3.1. Modality To turn the system on using the chrono, select the mode after programming the on and off times. Descriptive Keys Display... - Page 26 • Weekly: Program the times to turn the system on and off (there are 3 time intervals). This mode runs 3 time intervals from Monday to Sunday Schedule Weekly Mon-Sun Daily Weekly 09:30 11:15 Weekend 00:00 00:00 00:00 00:00 • Weekend: Choose between 'Monday-Friday' and 'Saturday and Sunday'.
-
Page 27: Installing And Configuring The 4Heat App
NSTALLING AND CONFIGURING THE System architecture The architecture includes three macrosystems: 4HEATModule ( Wikey or Pinkey ): hardware device that interacts with the TiEmme electronic control board and the local Wi-Fi router; SERVER CLOUD: web server infrastructure that allows data storage and works as a stellar hub for remote communication;... -
Page 28: Keys And Leds On 4Heat Modules
Keys and LEDs on 4Heat modules Installation To test the device, perform the following procedures: 1. Connect the 4HEATModule to the power supply: • WiKEY: make sure that the equipment (boiler, boiler or stove) is connected to the network; • PinKEY: Wi-Fi led (a) fixed red;... -
Page 29: New 4Heat Module Configuration
New 4HEAT module configuration Install the 4HEAT app available on the Play Store and App Store for free, to interact with the heating system. Connect your smartphone to your home Wi-Fi network and disconnect your mobile phone from the data connection. Also activate the GPS. When you open the application you are asked to select the language. - Page 30 7. Make sure that the smartphone is connected to the home Wi-Fi connection again and that the LEDs remain steady, allowing you to continue with the configuration phase. If the configuration procedure was not successful, you can reset the 4HEATModule by holding down the button for 10 seconds.
-
Page 31: Connection To 4Heatmodule
Connection to 4HEATModule In the "FIND DEVICE" section it is possible to connect to the 4HEATModule by entering the PIN code, only if the 4HEATModule is connected to the same Wi-Fi as the smartphone. You can also connect remotely (by connecting your smartphone data) by entering the access credentials of the 4HEATModule device already configured. -
Page 32: Maintenance
mixed with a little ash rubbing until it is clean. AINTENANCE You can use special products or foams for neoceramic glass by placing it directly on a cloth or paper, but never projecting it directly onto the glass. Security measures IMPORTANT, do not let the product run down to Before starting maintenance work, you must the metal parts as it will cause corrosion and... -
Page 33: Semi-Annual Cleaning
11.2.3. Semi-annual cleaning You must periodically clean the boiler and the smoke collector or for every 600 kg of pellets consumed. Figure 22- Key to open the stove (only for maintenance and with the stove turned off and cold) Having pulled the apparatus forward as shown below, vacuum the ash from the collector. -
Page 34: Complete Cleaning - Technician
open the stove (only for maintenance and with Complete cleaning - Technician the stove turned off and cold)and loosen the screws on the turbulators supports. At least once a year, you should call a specialized technician to carry out a complete cleaning of your stove, completely eliminating ash and other residues and all encrustations, especially those that occur in water models. -
Page 35: Chimney Cleaning
body with consequences for the safety and 11.3.1. Chimney cleaning lifespan of the stove. Chimney cleaning should be carried out at least twice a year at the beginning and middle of the 11.3.2. Door check winter season or when necessary. This cleaning must be carried out with an 80 mm nylon or steel brush. -
Page 36: Hydraulic Installation Maintenance
Hydraulic installation Control maintenance maintenance program Annually, and when the installation is shut down, Yearly it is necessary to carry out the following checks: • Check the operation and efficiency of the safety valve. anomalies and/or breakages are identified, contact the Brazier authorized installer. -
Page 37: Error Codes
RROR CODES Origin Cause Action Er01 Auger boiler safety The water is not circulating. Check the installation. thermostat Wait for the boiler or Circulator pump blocked with hopper to cool down and It occurs if the hopper (85ºc) dirt, installation with air in the for the message Stop or boiler (95ºc) - Page 38 Er08 Combustion fan encoder. Check the plug and connecting Reset error cable on the fan and controller restart the boiler, if the Occurs if the controller is error persists, call unable to obtain rotational Possible encoder technician. speeds according to the value malfunction defined by it.
- Page 39 Er23 Boiler sensor, open The boiler is programmed to Check sensor connection circuit. read one or more of the In case the boiler does following sensors and has not not have DHW, it must detected them: deactivated Boiler temperature changing the following parameters P26=5 and DHW temperature P83=0...
-
Page 40: Electrical Schematics
LECTRICAL SCHEMATICS... -
Page 41: Dimensions Of Connections
IMENSIONS OF CONNECTIONS... -
Page 42: Models And Technical Characteristics
ODELS AND TECHNICAL CHARACTERISTICS Aquatek Models Pot. Term. Pot. Term. Nominal Reduced Weight Height Width Depth Heating volume Water 15.8 Thermal 17.9 power Pellet consumption Kg/h Autonomy 10.0 Performance %CO to 13% O 0.01 0.01 Mass flow of smoke 17.09 9.56... - Page 43 Authorized Agent Office and Factory 1: Factory 2: Estrada dos Guilhermes, 27 Moinho de Vento, 1-E 2405-012 Maceira LRA 2405-008 Maceira LRA Portugal Portugal Phone: +351 244 770 240 comercial@grupovm.pt...
