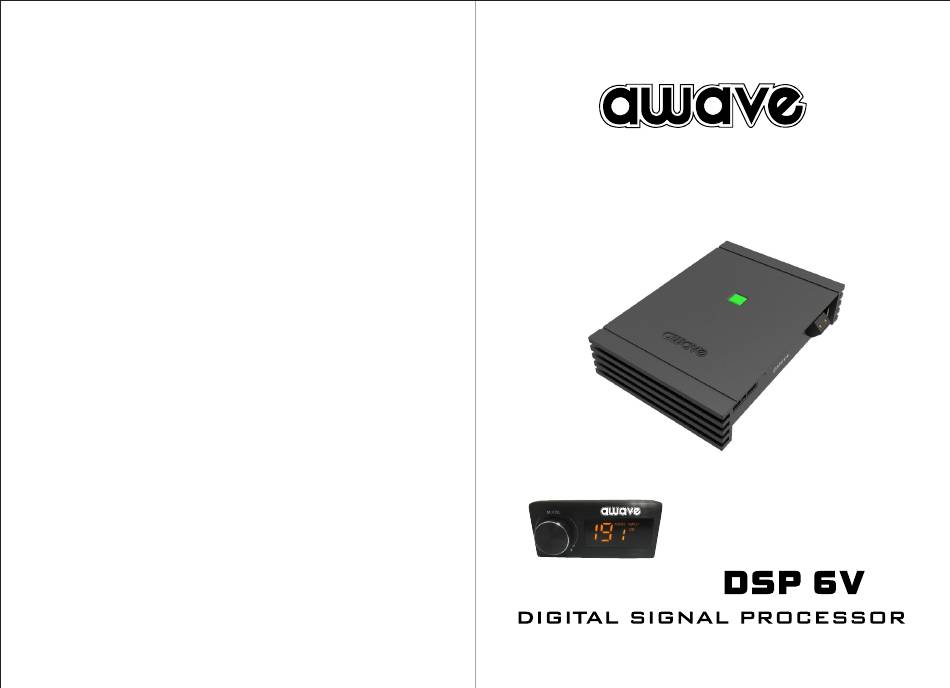

Ower s Manual
DSP Car Power Amplifiers
4
D04-MEN115-00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSP6V4 and is the answer not in the manual?

Questions and answers

Related Manuals for awave DSP6V4

Summary of Contents for awave DSP6V4

  • Page 1 Ower s Manual DSP Car Power Amplifiers D04-MEN115-00...

  • Page 2: Table Of Contents

    PRODUCT BRIEF INTRODUCTION PRODUCT BRIEF INTRODUCTION INDEX 1.PRODUCT DESCRIPTION-PRECAUTIONARY NOTES The DSP is a digital signal processor essential to maximize the acoustic performance of your car audio system. It consists of a 32-bit DSP processor and 24-bit AD and DA converters. 1.

  • Page 3: Dsp And Drc Installation

    External dimensions 1-2-3-4-5-6 224mm 2. OUTPUT; CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8 DSP6V4 How to install WARNING: do not use aggressive cleaning agents or abrasive cloth to clean the display.Simply use a soft cotton colth lightly damped with water.
  • Page 4 PRODUCT BRIEF INTRODUCTION PRODUCT BRIEF INTRODUCTION 3. FUSE For convenience most AutoSound amplifiers utilize common automotive ATC type fuses. For Continued protection in the event that a fuse blows, replace the fuse only with the same value. 35A x 1 [ 5 ] [ 6 ]...

  • Page 5: Output Signals

    PRODUCT BRIEF INTRODUCTION PRODUCT BRIEF INTRODUCTION 5.2 Personal computer and Digital Remote Coontrol(DRC) 5.5 MAIN LEVEL INPUT 5.3 High-Level input signals 1.SPEAKERS IN HI-LEVEL STEREO FRONT+REAR+SUBWOOFER . 5.6 Low-Level ,BLUETOOCH input signals Sensitivity is adjusttable from 0.6 to 5V RMS . 1 INPUT 1 INPUT 2 INPUT...

  • Page 6: Gui Operation Instruction

    PRODUCT BRIEF INTRODUCTION PRODUCT BRIEF INTRODUCTION 6.2 Interface introduction 6.GUI OPERATION INSTRUCTION 1.DSP interface guidance 6.1 Guide to GUI after installation 1. Double - click icon of DSP-CONTROL Awave6-8 2. Enter the GUI you long for! Now you could tone every signal details as experts do To bring sound effect on your beloved car to a higher level.If the password has been set, You need to enter the password.
  • Page 7 PRODUCT BRIEF INTRODUCTION PRODUCT BRIEF INTRODUCTION 2. Language(choose you need language) Output channel:FL FullRange.FR FullRange. When you click the drop-down button, you can choose the state of the channel input. There is : Null.Front.Rear.Center.Subwoofer and Full.Tweeter.Mid-T.Midrange.M-WF. Woofer. 3. Open(To load preset file in PC folder) 4.
  • Page 8 PRODUCT BRIEF INTRODUCTION PRODUCT BRIEF INTRODUCTION 7. GAIN. 11. Filter Model. 0--40dB is optional range for gain control kf every CH. To choose different Filter type Linkwitz Bessel Butterworth. 12. WRITE. To Write To Device(POS1-POS8). 8. DELAY. 1.Auto configuration(base on 1.5 setting). 2.Manual configuration, change specifications in selected CH manually.

  • Page 9: Stand Installation Reference

    PRODUCT BRIEF INTRODUCTION PRODUCT BRIEF INTRODUCTION 7.2 2 WAY CROSSOVER TREBLE MODE 14. X-OVER AND EQ CHARTS. 1.Red lines and slopes will change accordingly when HP/LP of crossover and EQ are modified. 2.EQ all frequency points can be move left or right.For 20Hz-20KHz can be any Regulation. Ground 15.

  • Page 10: Technical Features

    PRODUCT BRIEF INTRODUCTION 9.TECHNICAL FEATURES POWER SUPPLY Voltange 9-16VDC Idling current 1.5A SIGNAL STAGE Distortion - THD @ 1kHz, 1V RMS Output 0.05% Bandwith @-3 dB 10-20kHz S/N ratio Full Power A- 100 dB Hight level input range 3V-15V THD+N VS Power 1% (СH1.CH2.CH3.CH4.CH5.CH6) 6X80W ATTS INPUT STAGE High Level(Speaker)
