Summary of Contents for awave DSP-12AD

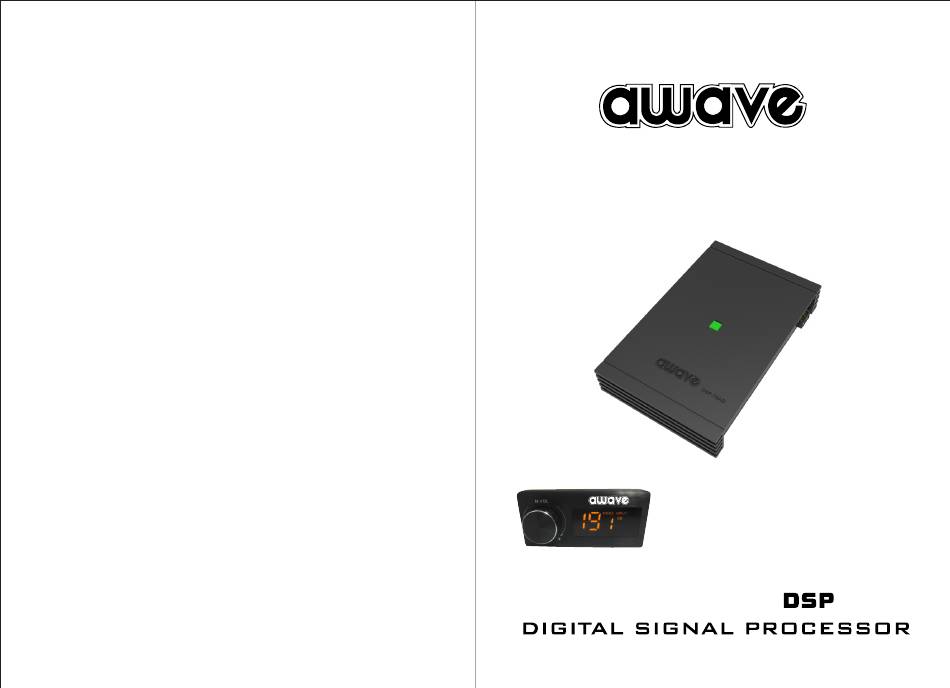

- Page 1 Ower s Manual DSP Car Power Amplifiers -12AD D04-MEN123-00...
-
Page 2: Table Of Contents
PRODUCT BRIEF INTRODUCTION PRODUCT BRIEF INTRODUCTION INDEX 1.PRODUCT DESCRIPTION-PRECAUTIONARY NOTES The DSP is a digital signal processor essential to maximize the acoustic performance of your car audio system. It consists of a 32-bit DSP processor and 24-bit AD and DA converters. 1. -
Page 3: Dsp And Drc Installation
PRODUCT BRIEF INTRODUCTION PRODUCT BRIEF INTRODUCTION 4.CONNECTION PANELS-DESCRIPTION 3.DSP AND DRC INSTALLATION 4.1 Input signals External dimensions LINE INPUTS MAIN HIGH LEVEL INPUTS 1-2-3-4-5-6-7-8-9-10-11-12 307mm 2. OUTPUT; CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8 CH9 CH10 CH11 CH12 SPEAKER OUTPUTS SPEAKER OUTPUTS CH1~CH8 CH9~CH12... - Page 4 PRODUCT BRIEF INTRODUCTION PRODUCT BRIEF INTRODUCTION LINE INPUTS MAIN HIGH LEVEL INPUTS SPEAKER OUTPUTS SPEAKER OUTPUTS CH1~CH8 CH9~CH12 LINE INPUTS MAIN HIGH LEVEL INPUTS 3. FUSE For convenience most AutoSound amplifiers utilize common automotive ATC type fuses. For Continued protection in the event that a fuse blows, replace the fuse only with the same value.
-
Page 5: Output Signals
PRODUCT BRIEF INTRODUCTION PRODUCT BRIEF INTRODUCTION 5.2 Personal computer and Digital Remote Coontrol(DRC) 5.5 MAIN LEVEL INPUT LINE INPUTS MAIN HIGH LEVEL INPUTS LINE OUTPUTS LINE INPUTS MAIN HIGH LEVEL INPUTS 5.3 High-Level input signals 1.SPEAKERS IN HI-LEVEL STEREO FRONT+REAR+SUBWOOFER . LINE INPUTS MAIN HIGH LEVEL INPUTS 5.6 Low-Level ,BLUETOOCH input signals... -
Page 6: Gui Operation Instruction
PRODUCT BRIEF INTRODUCTION PRODUCT BRIEF INTRODUCTION 6.2 Interface introduction 6.GUI OPERATION INSTRUCTION 1.DSP interface guidance 6.1 Guide to GUI after installation 1. Double - click icon of DSP-CONTROL 2. Enter the GUI you long for! Now you could tone every signal details as experts do To bring sound effect on your beloved car to a higher level.If the password has been set, You need to enter the password. - Page 7 PRODUCT BRIEF INTRODUCTION PRODUCT BRIEF INTRODUCTION 2. Language(choose you need language) Output channel:FL FullRange.FR FullRange. When you click the drop-down button, you can choose the state of the channel input. There is : Null.Front.Rear.Center.Subwoofer and Full.Tweeter.Mid-T.Midrange.M-WF. Woofer. 3. Open(To load preset file in PC folder) 4.
- Page 8 PRODUCT BRIEF INTRODUCTION PRODUCT BRIEF INTRODUCTION 7. GAIN. 11. Filter Model. 0--40dB is optional range for gain control kf every CH. To choose different Filter type Linkwitz Bessel Butterworth. 12. WRITE. To Write To Device(POS1-POS8). 8. DELAY. 1.Auto configuration(base on 1.5 setting). 2.Manual configuration, change specifications in selected CH manually.
-
Page 9: Remote Introduction
PRODUCT BRIEF INTRODUCTION PRODUCT BRIEF INTRODUCTION 14. X-OVER AND EQ CHARTS. 8.TECHNICAL FEATURES 1.Red lines and slopes will change accordingly when HP/LP of crossover and EQ are modified. 2.EQ all frequency points can be move left or right.For 20Hz-20KHz can be any Regulation. POWER SUPPLY Voltange 9-16VDC...
