awave AW-N650 User Manual

Thank you for purchasing the
which is the coaxial speaker specially designed for the
non-destructive modification of Nissan. The products
have been thoroughly tested to ensure its performance
consistency and reliability.
FEATURES:

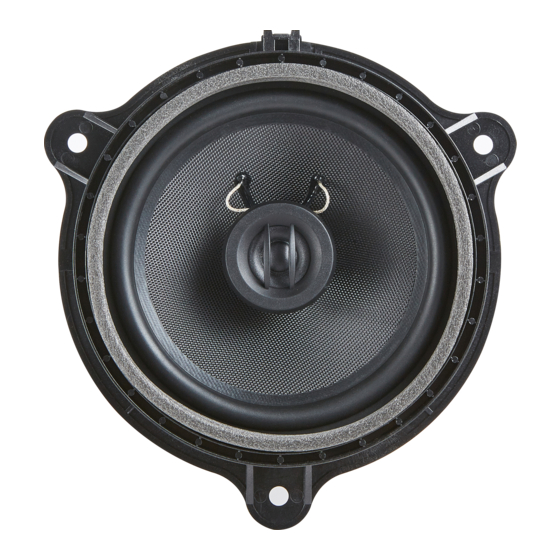

6.5 Inch 2-Way Coaxial Speakers
Rated Power：50W
Synthetic Fiberglass cone
4 Ohm 30mm TIL Voice coil
Qts：0.759
BL：4.8T
Vas：11.1 ltr
13mm Tetoron tweeter
PRECAUTIONS:
Before installing the mounting hole, please confirm that the
installation space is appropriate.
To prevent noise interference, make sure that the wiring is away
from the engine, high voltage conductors and other potential
sources of noise.
To prevent short circuits, make sure that the wiring avoids
moving parts and sharp edges.
Before installing this product, please make sure that you have
read this installation guide carefully.
brand series,
AW-N650 TECHNICAL PARAMETERS:
Power (W)
Fo (Hz)
Nominal Impedance( )
Sensitivity@ 1W/1M (dB)
Frequency Range
Magnet
Voice Coil
Cone(Dome)
Mounting Depth (mm)
Mounting Diameter (mm)
50
70
Ω
4
88
70Hz~20KHz
Hig-strength NdFeB
woofer:30.5mm
Tweeter:13.28mm
Woofer:Synthetic Fiberglass
Tweeter:Tetoron
40
182
AW-N650
日 产 同 轴 喇 叭 说 明 书
NISSNA COAXIAL SPEAKER USER`S GUIDE
