awave AW-F650C User Manual

Thank you for purchasing the
which is the component speaker specially designed for
the non-destructive modification of Ford. The products
have been thoroughly tested to ensure its performance
consistency and reliability.
FEATURES:

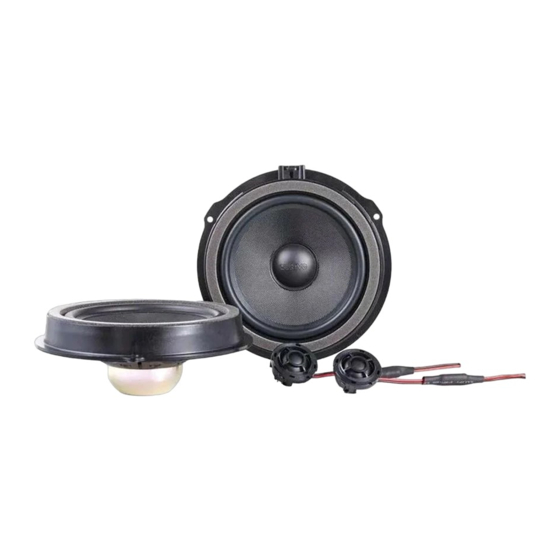

6.5 Inch 2-Way Component Speakers
Rated Power：60W
Synthetic Fiberglass cone
4 Ohm 30mm TIL Voice coil
Qts：0.759
BL：4.8T
Vas：11.1 ltr
25mm Tetoron dome tweeter
PRECAUTIONS:
Before installing the mounting hole, please confirm that the
installation space is appropriate.
To prevent noise interference, make sure that the wiring is away
from the engine, high voltage conductors and other potential
sources of noise.
To prevent short circuits, make sure that the wiring avoids
moving parts and sharp edges.
Before installing this product, please make sure that you have
read this installation guide carefully.
brand series,
AW-F650C TECHNICAL PARAMETERS:
SPECIFICATIONS
Power (W)
Fo (Hz)
Nominal Impedance( )
Sensitivity@ 1W/1M (dB)
Frequency Range
Magnet
Voice Coil
Cone
Mounting Depth (mm)
Mounting Diameter (mm)
WOOFER TWEETER
40 20
62 1400
Ω
4 4
88 90
62Hz~6KHz 1400Hz~22KHz
Hig-strength Hig-strength
NdFeB NdFeB
30.5mm 25.4mm
Synthetic
Tetoron
Fiberglass
43 35.5
42
185
AW-F650C
福特套装喇叭说明书
FORD COMPONENT SPEAKER USER`S GUIDE
