Model Number
350B01
Performance
Sensitivity(± 30 %)
Measurement Range
Frequency Range(± 1 dB)
Frequency Range(- 3 dB)
Electrical Filter Corner Frequency(- 3 dB)
Mechanical Filter Resonant Frequency
Resonant Frequency
Broadband Resolution(1 to 10,000 Hz)
Non-Linearity(per 10,000 g (98,100 m/s²))
Transverse Sensitivity
Environmental
Overload Limit(Shock)
Temperature Range(Operating)
Temperature Range(Storage)
Temperature Response
Electrical
Excitation Voltage
Constant Current Excitation
Output Impedance
Output Bias Voltage
Discharge Time Constant
Settling Time(within 10% of bias)
Electrical Isolation(Case) > 1,000,000 Ohm
Physical
Sensing Element
Sensing Geometry
Housing Material
Sealing
Size (Hex x Height)
Weight(without cable)
Electrical Connector
Cable Length
Cable Type
Mounting Thread
[6]
All specifications are at room temperature unless otherwise specified.
In the interest of constant product improvement, we reserve the right to change specifications without notice.
®
ICP is a registered trademark of PCB Piezotronics, Inc.
SHEAR ICP® SHOCK ACCELEROMETER
EN GLISH SI
0.05 mV/g 0.005 mV/(m/s²)
± 100,000 g pk ± 981,000 m/s² pk
4 to 10,000 Hz 4 to 10,000 Hz
2 to 25,000 Hz 2 to 25,000 Hz
17 kHz 17 kHz
35 kHz 35 kHz
≥ 100 kHz ≥ 100 kHz
0.5 g rms 4.9 m/s² rms
≤ 2.5 % ≤ 2.5 %
≤ 7 % ≤ 7 %
± 150,000 g pk ± 1,471,500 m/s² pk
-10 to +150 °F -23 to +66 °C
-40 to +200 °F -40 to +93 °C

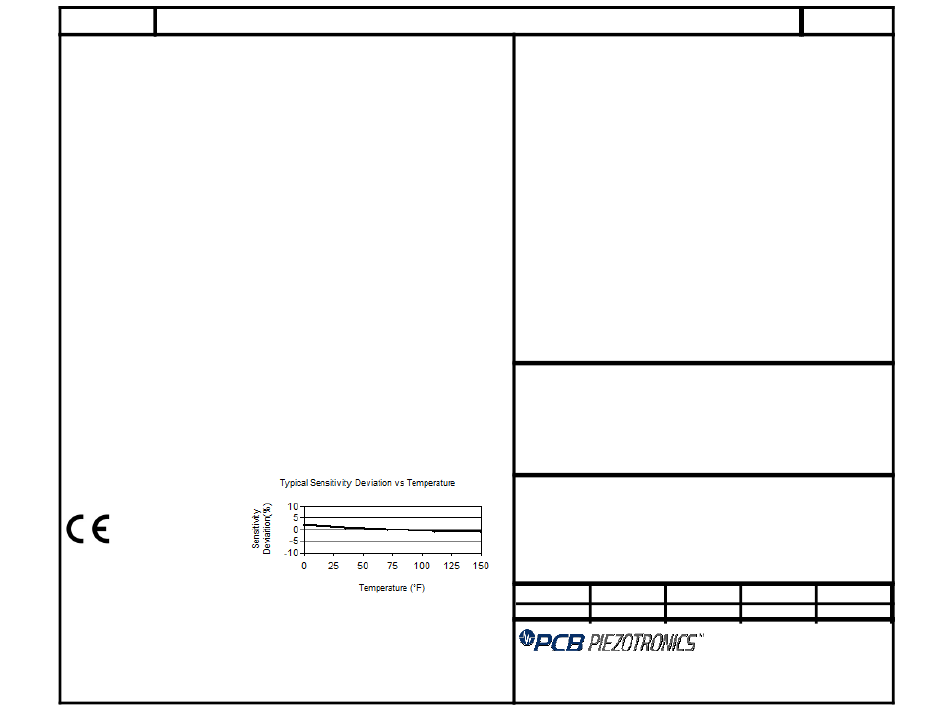

See Graph See Graph
20 to 30 VDC 20 to 30 VDC
2 to 20 mA 2 to 20 mA
≤ 200 Ohm ≤ 200 Ohm
8 to 14 VDC 8 to 14 VDC
0.10 sec 0.10 sec
< 1 sec < 1 sec
> 1,000,000 Ohm
Ceramic Ceramic
Shear Shear
Titanium Titanium
Hermetic Hermetic
0.375 in x 1.04 in 9.5 mm x 26.5 mm
0.20 oz 5.5 gm
Integral Cable Integral Cable
10 ft 3.05 m
031 Twisted Pair 031 Twisted Pair
1/4-28 Male 1/4-28 Male
Optional versions have identical specifications and accessories as listed for the standard model except
where noted below. More than one option may be used.
- Metric Mount
M
Mounting Thread
[1]
[2][3]
[2][4]
[2]
[2][5]
[2]
[2]
N OTES:
[1]Typical corner frequency for coupled electrical and mechanical filters.
[2]Typical.
[3]Electrical filter is a second order filter.
[4]Amplitude at resonance is +9 dB.
[5]Test conducted on shaker at 100Hz.
[6]See PCB Declaration of Conformance PS135 for details.
SUPPLIED ACCESSORIES:
Model ACS-14 High G shock accelerometer calibration using Hopkinson bar. (1)
Model ACS-22 NIST Traceable frequency response (100Hz to ±1 dB point) (1)
Entered: LK Engineer: AJA
Date: 12/17/2020 Date: 12/17/2020 Date: 12/17/2020 Date: 12/17/2020 52263
3425 Walden Avenue, Depew, NY 14043
Revision: G
ECN #: 51341
OPTION AL VERSION S
M6 x 0.75 Male M6 x 0.75 Male
Sales: RWM Approved: BAM Spec Number:
Phone: 716-684-0001
Fax: 716-684-0987
E-Mail: info@pcb.com
