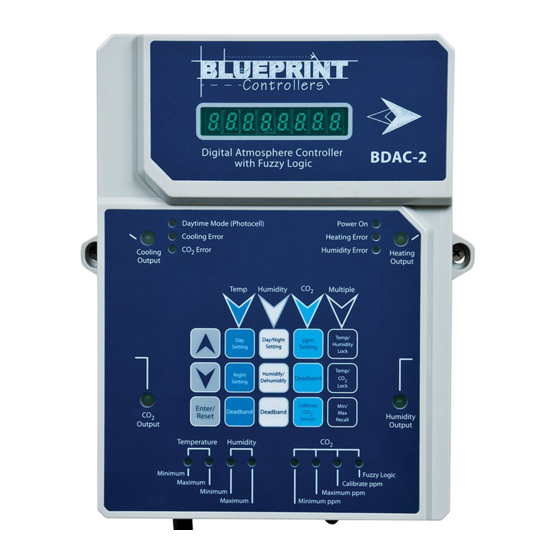

Blueprint Controllers BDAC-2 Instructions

Digital atmosphere controller with fuzzy logic

Download this manual

Features of your Blueprint Digital

Atmosphere Controller with Fuzzy Logic

• Precisely controls temperature, humidity and CO

• Fuzzy Logic mode allows more precise control of CO

levels when using compressed CO

• Four dedicated NEMA 5-15 receptacles

• Separate day and night set-points for temperature and humidity

• Remote sensor on 15' cable accurately monitors temperature,

humidity and light

• Integrated circuit breaker protection

• 3-year warranty

Thank you for choosing to grow with Blueprint Controllers! Your satisfaction and success

are important to us. For best results, carefully read the following instructions

before using your Blueprint Digital Atmosphere Controller with Fuzzy Logic.

levels

Specifications

Input Voltage: 120V

Maximum Amperage: 14.5A @ 120V

Temperature Control Range: 40-99.9°F

Temperature Accuracy: ± 1°F

Temperature Deadband: Adjustable

Humidity Control Range: 35-99.9% RH

Humidity Accuracy: ± 3% RH

Humidity Deadband: Adjustable

Control Range: 350-2000 ppm

Accuracy: ± 75 ppm

Dimensions: 9" x 7" x 3.75"

rev:112012

Need help?

Do you have a question about the BDAC-2 and is the answer not in the manual?

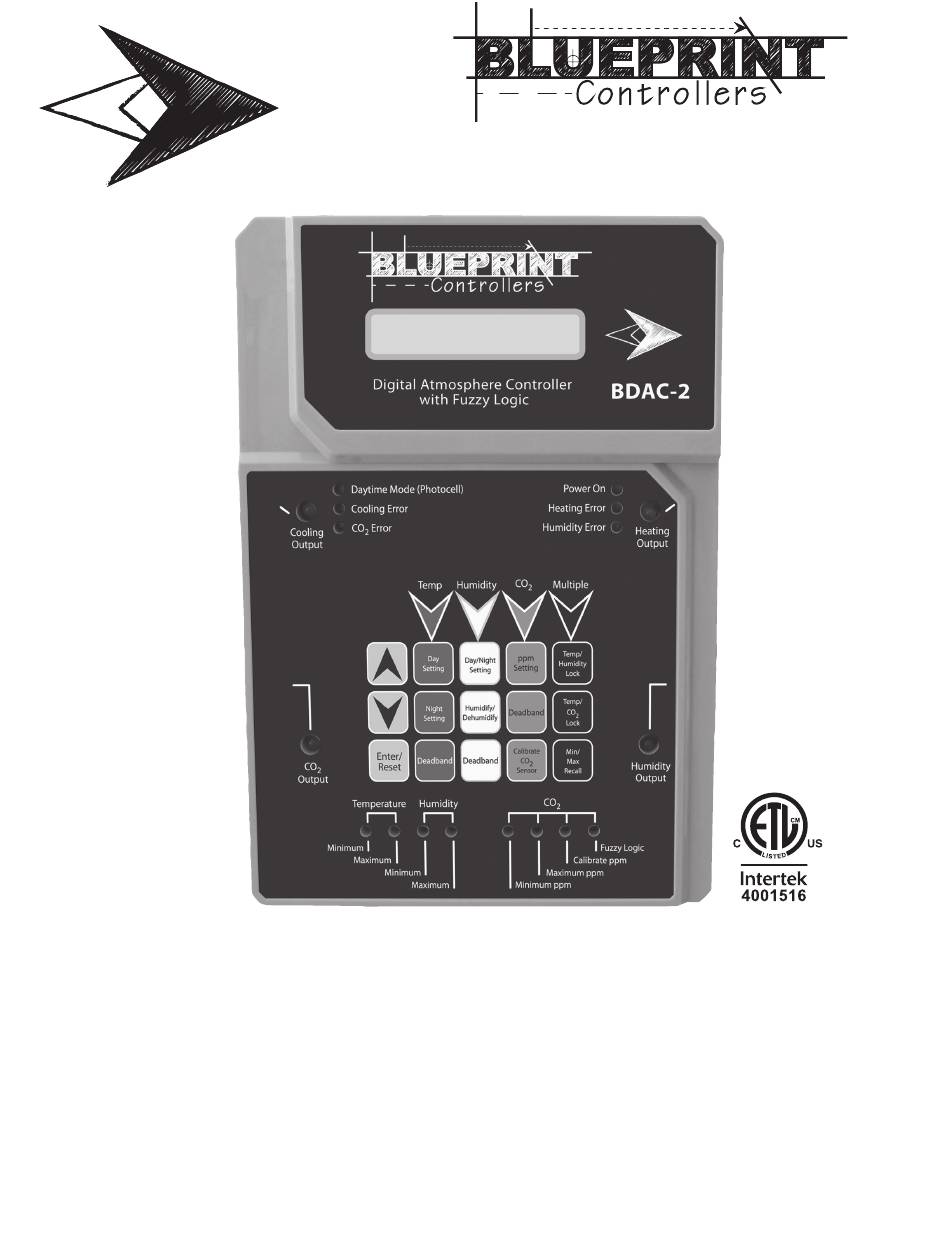

Page 1 Thank you for choosing to grow with Blueprint Controllers! Your satisfaction and success are important to us. For best results, carefully read the following instructions before using your Blueprint Digital Atmosphere Controller with Fuzzy Logic. Features of your Blueprint Digital...
Page 2 Installation Selecting Temperature Settings • Mount the Controller on the wall. Place the remote sensor at plant Temperature Display: Hold the UP and DOWN arrow height in an area with good air circulation. Avoid placing the sensor in buttons for 3 seconds to change the temperature display from a location with direct, intense exposure to light.
Page 3 Selecting CO Settings Calibrating the CO Sensor • Place the Controller and sensor outdoors in a shaded area. ppm Setting: To select the CO ppm set-point, press the “ppm Note: If the unit is calibrated in a high-traffic or highly populated Setting”...
Page 4 Blueprint 3-Year Limited Warranty All Blueprint Digital Atmosphere Controllers are protected against manufacturer defect by a limited 3-year manufacturer’s warranty. Limited 3-Year Warranty Terms Sunleaves Garden Products warrants that the Blueprint Digital Atmosphere Controller with Fuzzy Logic will remain free from appearance of defects in workmanship and materials for 3 years from date of original retail purchase.
