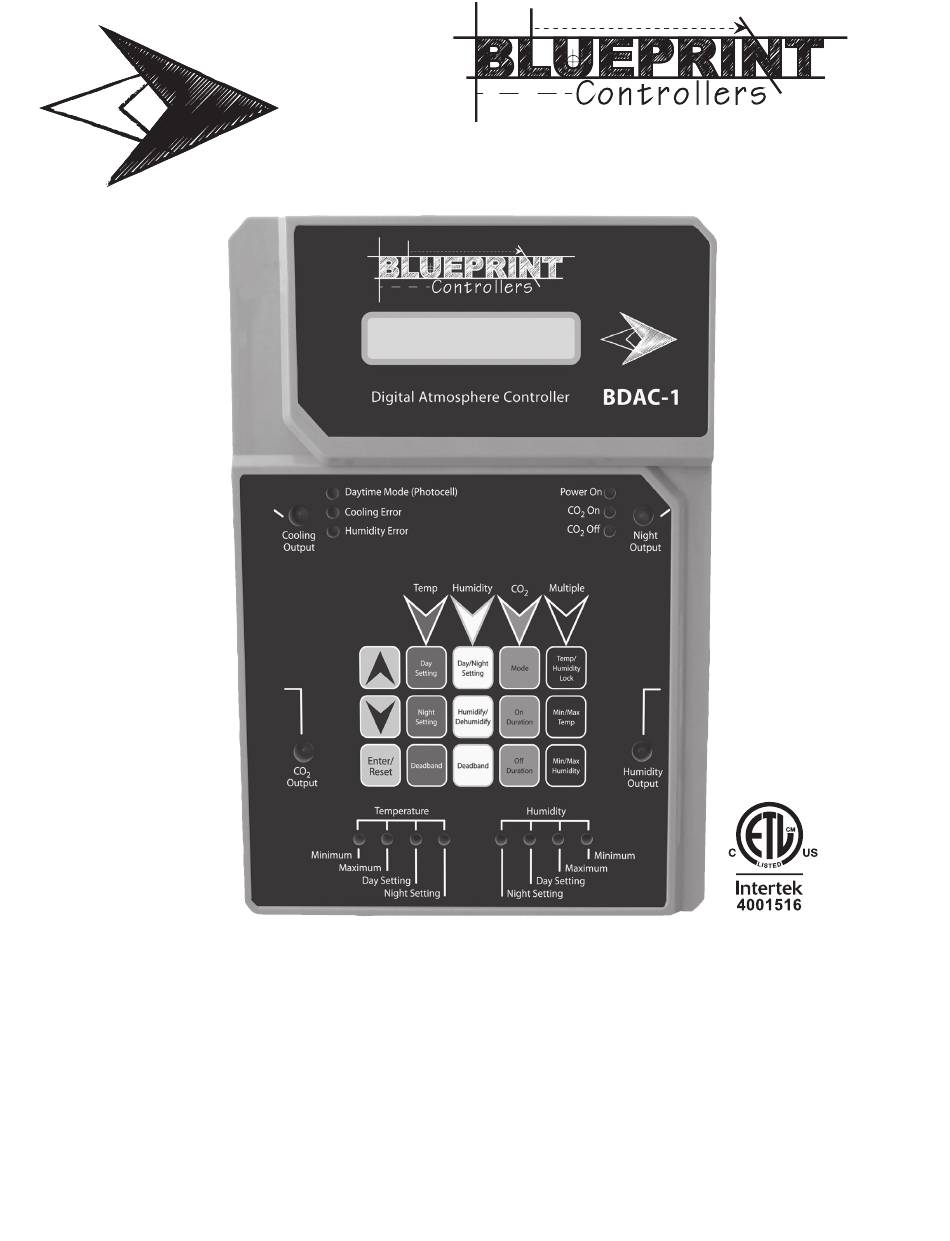

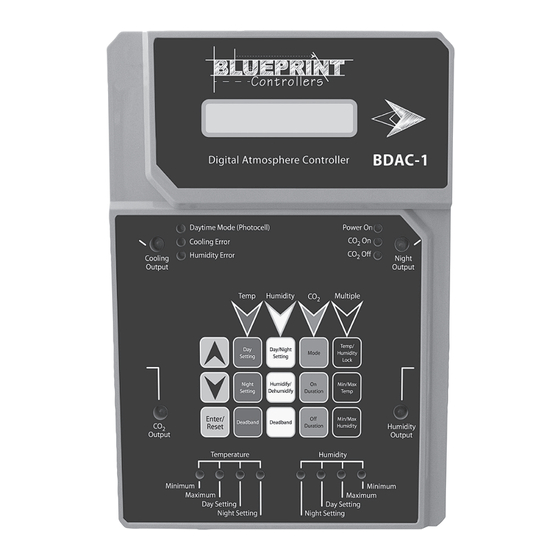

Digital atmosphere controller

Advertisement

Quick Links

Features of your Blueprint Digital
Atmosphere Controller, BDAC-1
• Precisely controls temperature, humidity and CO
• Four dedicated NEMA 5-15 receptacles
• Separate day and night set-points for temperature and humidity
• Remote sensor on 15' cable accurately monitors temperature,
humidity and light
• Integrated circuit breaker protection
• 3-year warranty
Thank you for choosing to grow with Blueprint Controllers! Your satisfaction and success are
important to us. For best results, carefully read the following instructions
before using your Blueprint Digital Atmosphere Controller.
levels
2

Specifications

Input Voltage: 120V
Maximum Amperage: 14.5A @ 120V
Battery Backup: 5-year lithium
Temperature Control Range: 40-99.9°F
Temperature Accuracy: ± 1°F
Temperature Deadband: Adjustable
Humidity Control Range: 35-99.9% RH
Humidity Accuracy: ± 3% RH
Humidity Deadband: Adjustable
CO
On Time Range: 1 second to 96 hours
2
CO
Off Time Range: 1 second to 96 hours
2
Dimensions: 9" x 7" x 3.75"
rev:112012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BDAC-1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Blueprint Controllers BDAC-1

  • Page 1 Thank you for choosing to grow with Blueprint Controllers! Your satisfaction and success are important to us. For best results, carefully read the following instructions before using your Blueprint Digital Atmosphere Controller. Features of your Blueprint Digital Specifications Input Voltage: 120V Atmosphere Controller, BDAC-1 Maximum Amperage: 14.5A @ 120V...
  • Page 2 Installation Adjusting Photocell Sensitivity • Mount the Controller on the wall. Place the remote sensor • Hold the DOWN arrow button for 3 seconds. The current at plant height in an area with good air circulation. Avoid setting will be displayed. placing the sensor in a location with direct, intense exposure •...
  • Page 3 Humidity Mode: To select between humidifying and dehumidifying modes, press the “Humidify/Dehumidify” • What if the temperature reading is high? button. The display will show the current setting, “rh_Incr” for Verify the remote sensor is not in a location with direct, humidifying and “rh_dEcr” for dehumidifying. Use the UP and intense exposure to light.
  • Page 4 Blueprint 3-Year Limited Warranty All Blueprint Digital Atmosphere Controllers are protected against manufacturer defect by a limited 3-year manufacturer’s warranty. Limited 3-Year Warranty Terms Sunleaves Garden Products warrants that the Blueprint Digital Atmosphere Controller will remain free from appearance of defects in workmanship and materials for 3 years from date of original retail purchase. This warranty is subject to the following limitations: (a) manufacturer’s liability is limited to the replacement or repair of the unit, as decided by the manufacturer;...
