Conforms to ANSI STD Z21.97-2014,
Certified to CSA STD 2.41-2014 Outdoor decorative gas appliances

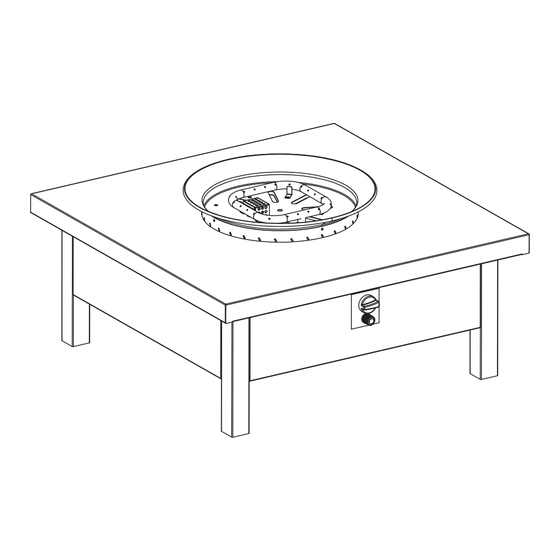

Liv Red Ember Fire Pit Table Manual
Item#: 62563 | SKU: WTL317-1
WARNING
FOR YOUR SAFETY
1. Improper installation, adjustment,
alteration, service or maintenance can
cause injury or property damage.
2. Read the installation, operation, and
maintenance instructions thoroughly
before installing or servicing this
equipment.
3. Failure to follow these instructions
could result in fire or explosion, which
could cause property damage, personal
injury, or death.
WARNING
For Outdoor Use Only
WARNING
This product can expose you to chemicals
including carbon monoxide which is known to the
State of California to cause birth defects or other
reproductive harm. For more information go to
www.P65Warnings.ca.gov.
WARNING
This product can expose you to chemicals including
Diisononyl Phthalate (DINP), which is known to the
State of California to cause cancer, and Di(2-
ethylhexyl)phthalate (DEHP) which is known to the
State of California to cause cancer and reproductive
harm. For more information go to
www.P65Warnings.ca.gov.
ATTACH YOUR
RECEIPT HERE
Keep a copy of your proof of
purchase or order confirmation
which will be needed if you
need to contact us about
warranty coverage.
Purchase Date:
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Red Ember Liv 62563
Summary of Contents for Red Ember Liv 62563
- Page 1 Liv Red Ember Fire Pit Table Manual Item#: 62563 | SKU: WTL317-1 WARNING FOR YOUR SAFETY 1. Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. 2. Read the installation, operation, and maintenance instructions thoroughly before installing or servicing this equipment.
-
Page 2: Table Of Contents
TAblE OF CONTENTS Table of Contents Page 2 before You begin Page 2 Package Contents Page 3 Safety Information Pages 4-5 Assembly Pages 6-10 Operating Instructions Pages 11-14 Care and Maintenance Page 15 Troubleshooting Page 16 Warranty Information Page 17 bEFORE YOU bEGIN Please read and understand this entire manual before attempting to assemble, operate or install this appliance. -
Page 3: Package Contents
PACKAGE CONTENTS PACKAGE CONTENTS PART DESCRIPTION QUANTITY Table Burner Assembly Front Panel Side Panel PART DESCRIPTION QUANTITY Right Side Panel (drilled Removable Burner Cover for hose bracket) Burner Leg (1) Table Top Leg (2) Front Door Panel Control Panel Side Panels Hose Bracket Back Panel Lava Rock... -
Page 4: Safety Information
SAFETY INFORMATION DANGER WARNING SAFETY INFORMATION EXPlOSION-FIRE HAZARD bURN HAZARD This appliance has been tested to and complies with the ANSI Z21.97-2014/ • Keep solid combustibles — such as Never leave fire pit unattended when hot or CSA 2.41-2014, Outdoor Decorative Gas building materials, paper, or cardboard —... - Page 5 SAFETY INFORMATION WARNING WARNING DANGER We cannot foresee every use which may be Failure to comply with the precautions and • This product is fueled by propane gas. made of this fire pit. Check with your local instructions provided with this fire pit can Propane gas is invisible, odorless, and fire safety authority if you have questions result in death, serious bodily injury and...
-
Page 6: Assembly
ASSEMblY PREPARATION Before beginning assembly, be sure to empty contents of carton and make sure all parts are present. Place all parts on a soft, level surface for assembly. Estimated Assembly Time: 60 Minutes | DO NOT over tighten hardware! Assemble the left side of the fire table base. - Page 7 ASSEMblY Turn the Table Assembly A upside-down on a protected, non-abrasive surface. Using two bolts J, attach the Control Panel G to the underside of the tabletop facing the front edge as shown. Leave bolts loosely connected until after Step 5. Hardware Used: L M6x12 Bolt x 2 Turn the assembled base upside-down and align the drilled tabs with the eyelets in the bottom of the table base.
- Page 8 ASSEMblY Lay the hose across the Right Panel D between the two drilled holes in the bottom of the panel. Secure the hose by fastening the Hose bracket H to the bottom of the Right Panel D using two bolts L and Nuts M. Fully tighten hardware. Hardware Used: L M6x12 Bolt x 2 M M6 Nut x 2 With assistance, carefully turn the assembled Fire Table right-...
- Page 9 ASSEMblY Place the LPG cylinder near the right side of the Fire Pit. Attach the hose and regulator to the LPG cylinder according to connection and safety guidelines described on pages 10-12. When the fire pit is NOT in use or after use, when the fire pit has cooled COMPLETELY, cover it with the Protective Cover K.
- Page 10 ASSEMblY Connect hose and regulator to cylinder. The propane gas and cylinder are sold separately. Use a standard 20lb propane cylinder only. Use this fire pit only with a propane vapor withdrawal supply system. See chapter 5 of the standard storage and handling of liquefied petroleum gas, ANSI/NFPA 58.
-
Page 11: Operating Instructions
OPERATING INSTRUCTIONS A dented, rusted or damaged propane cylinder may be hazardous and should be checked by your cylinder supplier. Never use a propane cylinder with a damaged valve connection. The propane cylinder must be constructed and marked in accordance with the specifications for LP gas cylinders of the U.S. Department of Transportation (DOT) or the standard for cylinders, spheres and tubs for transportation of dangerous goods and commission, CAN/CSA-B339. - Page 12 OPERATING INSTRUCTIONS lEAK CHECK WARNING! • Perform all leak tests outdoors. • Extinguish all open flames. • NEVER leak test when smoking. • Do not use the fire pit until all connections have been leak tested and do not leak. Hose / Regulator Regulator / Cylinder Connection...
- Page 13 OPERATING INSTRUCTIONS CAUTION WARNING DANGER! Do not attempt to operate until you FOR OUTDOOR USE ONlY have read and understand all General Very hot while in operation! Never lean over the fire pit while in use. Safety Information in this manual and CARbON MONOXIDE HAZARD Do not touch Table Top or burner all assembly is complete and leak Assembly while the fire pit is in operation.
- Page 14 OPERATING INSTRUCTIONS OPERATION CHECKlIST: WARNING For a safe and pleasant heating experience, perform this check before each use: Very hot while in operation! Never lean over the fire pit while in use. bEFORE OPERATING: Do not touch the Burner Assembly while I am familiar with entire owner’s manual and understand all precautions the fire pit is in operation.
-
Page 15: Care And Maintenance
CARE & MAINTENANCE STORAGE: To enjoy years of outstanding performance from your fire pit, make sure you between uses: perform the following maintenance activities on a regular basis: • Turn control knob OFF. • Disconnect LP source. 1. Use warm soapy water for cleaning. Never use flammable or corrosive •... -
Page 16: Troubleshooting
TROUblESHOOTING PROblEM POSSIblE CAUSE CORRECTIVE ACTION Wait until the propane cylinder warms up and becomes Propane cylinder is frosted over unfrosted Burner will not light Blockage in orifice Clear blockage Control knob is not in ON position Turn control knob to ON Gas pressure is low Turn cylinder valve OFF and replace cylinder Outdoor temperature is less than... - Page 17 1 YEAR LIMITED WARRANTY – Customers in the Continental US All components are warranted for a period of 1 year after date of purchase by the original owner against defects in materials and workmanship under normal use. This warranty does NOT cover normal wear and weathering, assembly and/or maintenance OR use in a commercial application if model is not designated as a commercial model.
