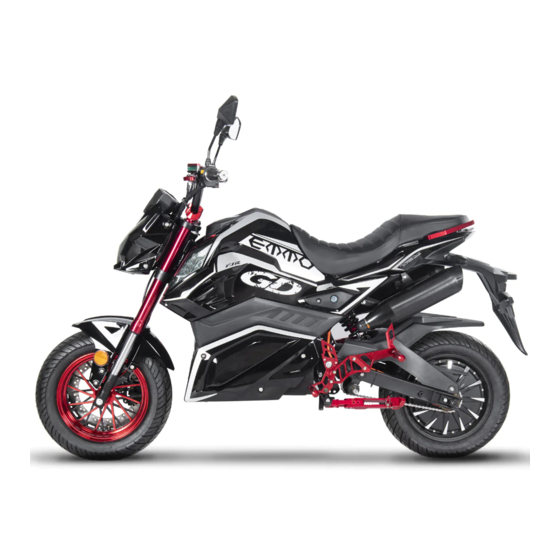

Preface An Important Message From EMMO Thank you for choosing EMMO. Congratulations on your purchase of a new GANDAN. This document is intended as a short introduction to your new e-bike. It contains essential safety, performance and service information. Please read and understand this manual fully before assembling and riding your bike. Be sure to watch the offical Emmo GANDAN assembly video available at https://emmo.ca/pages/e-bike-assembly-guide.
Content About This Manual ����������������������������������������������������������������������������������������������������������������������������� 5 About EMMO �������������������������������������������������������������������������������������������������������������������������������������� 6 Rules and Regulations ������������������������������������������������������������������������������������������������������������������������ 7 Safety Disclaimer ����������������������������������������������������������������������������������������������������������������������������� 10 Description ��������������������������������������������������������������������������������������������������������������������������������������� 13 Schematic Diagram ������������������������������������������������������������������������������������������������������������������������������������������������������������������� 13 Side View ......................................13 Handlebar Attachments ..................................14 Speedometer .......................................15 Operation Guide�������������������������������������������������������������������������������������������������������������������������������� 18 How to Turn on the Bike ������������������������������������������������������������������������������������������������������������������������������������������������������������ 18 Key Ignition/Steering Lock .................................18...
Page 4
Right Switches ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 26 Left Switches ����������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 27 Throttle �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 28 Charger �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 29 Lead Acid Charger ....................................29 Lithium Charger ....................................35 Charging Precautions ..................................42 Battery ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 43 Battery Safety Precautions ................................43 Disposal ........................................44 Storage & Maintenance ..................................45 Radio ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������ 46 Remote .........................................46 USB Charging Port ���������������������������������������������������������������������������������������������������������������������������������������������������������������������...
Page 5
Lights ����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 51 Headlight ......................................51 Tail light & Brake Light ..................................52 Signal Lights ......................................53 Adjusting the Brake ������������������������������������������������������������������������������������������������������������������������������������������������������������������� 54 Cleaning / Lubricating the Chain ����������������������������������������������������������������������������������������������������������������������������������������������� 55 Tire Pressure ����������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 56 Serial Number ���������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 58 Frame Number.....................................58 Motor Number .....................................59 Riding Guide ������������������������������������������������������������������������������������������������������������������������������������� 60 Checking List Before Riding ������������������������������������������������������������������������������������������������������������������������������������������������������...
About This Manual This document is intended as a short introduction to your new e-bike. It contains important safety, performance and service information. Read and understand it along with the information provided during the on-delivery instructions before using the product. Pay special attention to the safety messages as shown here, and keep the manual handy for future reference. WARNING: Warning about a situation that can cause death, serious physical injury and or heavy material damage if one does not obey the safety instructions.
Backed by our comprehensive warranty, we ensure riders are confident in the purchase of their Emmo. Emmo believes that a greener future is not only possible, it’s necessary, and we want to do our part to build greener communities by making e-bikes more accessible.
Rules and Regulations According to Canada’s Motor Vehicle Safety Regulations ( MVSR ). A qualified e-bike (defined as Power Assist Bicycle) must meet the following requirements: • The e-bike must have operational pedals • Upper wattage limit for the motor is 500W •...
Page 9
Rules and Regulations Useful links: E-Bike Regulations in Ontario: https://www.ontario.ca/page/riding-e-bike E-Bike Regulations in British Columbia: https://www.bclaws.gov.bc.ca/civix/document/id/complete/statreg/151_2002 E-Bike Regulations in Alberta: http://www.transportation.alberta.ca/content/doctype45/production/mopedpowerbikes.pdf E-Bike Regulations in Manitoba: https://web2.gov.mb.ca/laws/statutes/ccsm/h060e.php E-Bike Regulations in Saskatchewan: https://www.sgi.sk.ca/motorcycle/-/knowledge_base/motorcycle-handbook/power-assisted-bicycles1 E-Bike Regulations in Quebec: https://saaq.gouv.qc.ca/en/road-safety/modes-transportation/electric-bike E-Bike Regulations in New Brunswick: https://www2.gnb.ca/content/gnb/en/services/services_renderer.200814.Motor_Vehicle_Registration.html...
Page 10
E-Bike Regulations in Nova Scotia: https://novascotia.ca/just/regulations/regs/mv18786.htm E-Bike Regulations in Prince Edward Island: hhttps://www.princeedwardisland.ca/en/information/transportation-and-infrastructure/power-assisted-bicycles Know and obey all relevant local laws It is your responsibility to research and understand relevant laws where you ride your bike. Such laws may cover required helmets and safety gear, required lights and reflectors, required hand signals, where you can legally ride a bike (bikes and ebikes may have different restrictions), how fast you can go, what (if any) cargo or passengers you can carry, rider age, and more.
Safety Disclaimer This manual contains important safety, performance and service information� Read and understand it along with the information provided during the on-delivery instructions before using the product, and keep it for reference� Ensure that you comprehend all instructions and safety notes/ warnings� WARNING: Ensure the bike fits you properly before use.
Page 12
& charger to any big shocks. • Charge the battery only with the charger that was supplied with the e-bike supplied by an official EMMO dealer. • DO NOT use the battery & charger for other purposes.
Page 13
In no event shall EMMO be responsible for any direct, indirect or consequential damages, including without limitation, personal injury, property damage, or economic losses, whether based on contract, warranty,...
Description 1. Schematic Diagram b� Handlebar Attachments Rear View Mirrors Speedometer Brake Fluid Tank Rear Brake Lever Left Grip Left Switch Housing Ignition Front Brake Lever Throttle Right Switch Housing Storage Lock...
Page 17
Description 1. Schematic Diagram c� Speedometer When the headlight high beam is on this indicator. Remains on until the high beam is High Beam Indicator turned off. Flashes when the left turning signal is turned on. This arrow remains flashing until the Left Turning Signal turning signal is canceled.
Page 18
Description 1. Schematic Diagram c� Speedometer Warning Lights Motor Failure Motor is out of order. Throttle Failure Throttle is out of order. Controller Failure Controller is out of order. Brake Sensor Failure Brake is applied (brake sensor is activated)/ Brake sensor failure.
Operation Guide 1. How to Turn on the Bike a� Key Ignition/Steering Lock Power Off Power On Steering Lock (push) This is a three-position switch that is located on the body: • Power Off • Power On • Steering Lock...
Page 20
Operation Guide 1. How to Turn on the Bike a� Key Ignition/Steering Lock POWER POWER To turn on the bike: • Insert the key. • Follow the marking on the ignition, turn the key to the right to turn on the bike.
Page 21
Operation Guide 1. How to Turn on the Bike a� Key Ignition/Steering Lock To lock the steering: • Turn the ignition off. • Turn the handlebar all the way to the left. • Follow the marking on the igntion, push the key TURN THE HANDLEBAR in and turn the key anti-clockwise.
Operation Guide 1. How to Turn on the Bike b� Seat How to Open the seat UNLOCK THE SEAT LOCK II� Insert the key and unlock the seat III� While keeping the seat lock at the I� The seat lock is located on the lock by turning the key clockwise.
Page 23
Operation Guide 1. How to Turn on the Bike b� Seat How to Open the seat V� Remove the seat cushion. IV� Silde the seat cusion backwards to detach the seat cushion from the frame.
Page 24
Operation Guide 1. How to Turn on the Bike b� Seat How to close the seat PUSH SEAT LOCK • There are three lock hooks are located on the bottom of the seat cushion. • Make sure three hooks catch at the hook locks at same time. •...
Operation Guide 1. How to Turn on the Bike c� Remote Press the button once to activate the anti- Lock Button theft alarm system. Press the button once to cancel the alarm Unlock/Cancel Button or to turn off the bike if the bike is turned on with the remote.
• Follow the marking on the circuit breaker turn on/off the circuit breaker. • Close the seat. WARNING: DO NOT The wires inserted into the circuit breaker could have high voltage output. touch any bare wires. If you have any concern, contact your EMMO dealer for assistance.
Operation Guide 2. Right Switches The switch housing on the handlebar hold these switches that control the lights, signals, horn and etc.. Headlight Slide the switch to turn on the headlight and tail light. Tail light Tail Light Slide the switch to turn on the tail light. Emergency Press the button to turn on all turning Harzard Lights...
Operation Guide 3. Left Switches Hight Beam Press the button will flash the high beam. Flasher Right Turning Slide the switch to the right will turn on Signal the right side turning signals. Hight Beam Press the button up will turn the high Light beam on.
Operation Guide 4. Throttle The throttle controls the speed of the e-bike. As shown below, twist the throttle towards you to operate. With the help of the speed mode switch, you can also change the speed setting. HIGH SPEED MEDIUM SPEED SPEED WARNING:...
Operation Guide 5. Charger a� Lead Acid Charger Front Label Charging Indicator Charger Specification Label Charging Plug...
Page 31
Operation Guide 5. Charger a� Lead Acid Charger A. Front Label The front label contains brief information of the voltage and capacity of the battery that the charger should be used for (more details are included in the specification label on the back of the charger). •...
Page 32
Operation Guide 5. Charger a� Lead Acid Charger B. Charging Indicator Charging Indicator Explanation: • During normal charging, red light stays on. • The indicator will turn green when the battery is fully charged. NOTICE: If the charger gets warm during regular use, this is a normal response and is no cause for concern.
Page 33
Operation Guide 5. Charger a� Lead Acid Charger C. Charger Specification Label NOTICE: 72V30Ah SLA and 72V32Ah SLA are the same battery/charger based on different rating systems.
Page 34
Operation Guide 5. Charger a� Lead Acid Charger D. Charging Plug (How to Charge) UNLOCK THE STORAGE LID II� Insert the key and turn it clockwise III� The charging port is located in the I� Locate the storage lock on the to unlock and open the storage lid.
Page 35
Operation Guide 5. Charger a� Lead Acid Charger D. Charging Plug (How to Charge) V� Plug the charger. VI� Plug the charger into a regular IV� Open the charging port lid. 110V wall outlet.
Page 37
Operation Guide 5. Charger b� Lithium Charger A. Charger Label The front label contains brief information of the voltage and capacity of the battery that the charger should be used for (more details are included in the specification label on the back of the charger). •...
Page 38
Operation Guide 5. Charger b� Lithium Charger B. Charging Indicator Charging Indicator Explanation: • During normal charging, red light keeps on. • The indicator will turn green when the battery is fully charged. NOTICE: If the charger gets warm during regular use, this is a normal response and is no cause for concern.
Page 40
Operation Guide 5. Charger b� Lithium Charger D. Power Cord Socket E. Power Cord Connecting the charger: • Plug the device connector E of the power cable into the device socket D on the charger. WARNING: You MUST NOT plug the power cord directly to the bike/battery. High voltage will damage the bike/ battery and cause severe accident.
Page 41
Operation Guide 5. Charger b� Lithium Charger F. Charging Plug (How to Charge) UNLOCK THE STORAGE LID II� Insert the key and turn it clockwise III� The charging port is located in the I� Locate the storage lock on the to unlock and open the storage lid.
Page 42
Operation Guide 5. Charger b� Lithium Charger F. Charging Plug (How to Charge) II� Plug the charger. III� Plug the charger into a regular I� Open the charging port lid. 110V wall outlet.
Charging Precautions WARNING: • You must use the compatible charger (approved by EMMO) to charge the battery. • DO NOT submerge or allow the charger to become submerged in water or any liquid. • DO NOT use the charger if the cord becomes frayed, has expose solution or wires or shows any significant damage.
Operation Guide 6. Battery a� Battery Safety Precautions • Be sure to use the original/compatible battery (approved by EMMO). Using batteries from other brands may lead to severe accidents. • Inspect the battery for any damage, leaking, overheating or smoking.
NOTICE • Used batteries must be treated as hazardous waste. • Batteries must be disposed of in accordance with the the regulations set forth by your local government/organizations. • In case of uncertainty, contact EMMO customer service department.
Operation Guide 6. Battery c� Storage & Maintenance • For storage, please disconnect the battery from the bike and charge the battery on a regular basis (at least once a month). • Battery packs and chargers need to be stored in a clean, dry, ventilated place, avoid contact with corrosive material, and keep them away from heat and fire.
Operation Guide 7. Radio a� Remote Press once to turn on the radio system. 1. The Exhaust mode is set by default. 2. Hold the button to switch to MP3 mode.You can pair Power / Mode Switch Bluetooth device with the built-in MP3 player(named 73). 3.
Operation Guide 8. USB Charging Port UNLOCK THE STORAGE LI D II� Insert the key and turn it clockwise III� The USB port is located in the I� Locate the storage lock in the gas to unlock and open the storage lid. storage compatement.
Operation Guide 9. Kickstand & Kill Switch How to use the side kickstand and kill switch: • Kick the side stand down and gently lean the bike on the side kickstand. • Make sure it is stable before you leave your bike. •...
Operation Guide 10. Passenger Footpeg Foldable Passenger Footpegs: • Passenger footpegs are located near rear wheel. • Unfold the footpegs as showed when needed.
Operation Guide 11. Pedal PUSH How to fold the pedals: • Push the pedal from the side (as showed). • Fold the pedal up while you continue pushing from the side.
Operation Guide 12. Lights a� Headlight The headlight assembly has multiple operation modes - high beam, low beam and daytime running light, to accommodate your needs under different conditions.
Operation Guide 11. Lights b� Tail light & Brake Light Tail light increase the visibility at night/under dark conditions. Brake light notifies the traffic behind that you are slowing down so that they can adjust the speed accordingly.
Operation Guide 13. Adjusting the Brake INCREASE DECREASE DECREASE INCREASE How to Adjust: • The adjustment nut is located on the brake lever. Use it to adjust the gap between the lever and the hand grip.
Operation Guide 14. Cleaning / Lubricating the Chain How to Clean the Chain: • Put the bike on the service stand or lean the bike on the side kickstand. • Locate the chain on the left side of the bike, near the rear wheel hub. •...
Operation Guide 15. Tire Pressure It is recommended to check the tire pressure on a regular basis to keep things at their best working conditions. 35 PSI II� Remove the valve cap. III� Use an air pump with gauge I� Locate the valve on the rim. to adjust the tire pressure to 35 PSI.
Page 58
Operation Guide 14. Tire Pressure • Riding comfort • Travel distance WARNING: • You MUST inflate the tire to the recommended tire pressure before the first ride. Failure to do so may damage your bike and void your warranty. • DO NOT over-inflate, as this could damage the tire or wheel. (a recommended tire pressure range is marked on both tires by the manufacturer)
Operation Guide 16. Serial Number a� Frame Number Find the Frame Number: • The frame number is located on the neck of frame. • You will find the Frame Number engraved on the frame.
Operation Guide 15. Serial Number b� Motor Number Located on the motor. EN140MKM0009 The motor number could be located at the following locations: • Location 1: On the motor cover plate. • Location 2: Behind the sprocket on the motor.
Riding Guide 1. Checking List Before Riding • Whether the handlebar is stable and flexible when turning. • Whether the right and left switches on the handlebar can work properly or not. • Whether the throttle can work properly or not. •...
Any warranty is extended to the original owner with the original purchase paperwork. This portion does not cover the purchase of parts or the purchase of products sold by Emmo Inc that is not an electric bike, electric scooter ebike, electric motorcycle style ebike, electric mobility scooter, kick-style electric scooter, or ride-on toy.
Page 63
Please note the damage on the shipper’s Bill of Delivery prior to signing off on the shipment� Shipping damage is not covered by Emmo Inc if you choose your own shipping method or freight forwarder� The cost of shipping will not be covered under warranty unless Emmo Inc agrees in writing to cover the shipping cost�...
Page 64
• For repairs that are done on items that are not from Emmo Inc, only a 7-day Parts Warranty will be included� Emmo Inc is not responsible for items modified from its intended use or purpose resulting in damage to the ebike or injury to the customer or third party�...
E-Bike Registration Once you have purchased an EMMO E-Bike, you can register your vehicle with us to validate your warranty. In order to register your E-Bikes, please follow the steps listed below: 1. Fill out the following form: E-BIKE REGISTRATION...
Page 66
E-Bike Registration Survey: How did you find out about EMMO Inc.? (Please select the options that apply) Returning Customer Family / Friend Passing by Store Kjiji TERA Google Yelp Other 2. Send the information listed above to our email: info@emmo.ca...
Contact Us LOCATION EMMO Mississauga EMMO Toronto 1224 Dundas St E, Unit 6 438 Spadina Ave, Unit 2 Mississauga, ON L4Y 2C5 Toronto, ON M5T 2G8 Canada Canada EMMO Vaughan Toronto Service Center 1750 Steeles Avenue West, Unit 15-17 8 Oxford Street...
