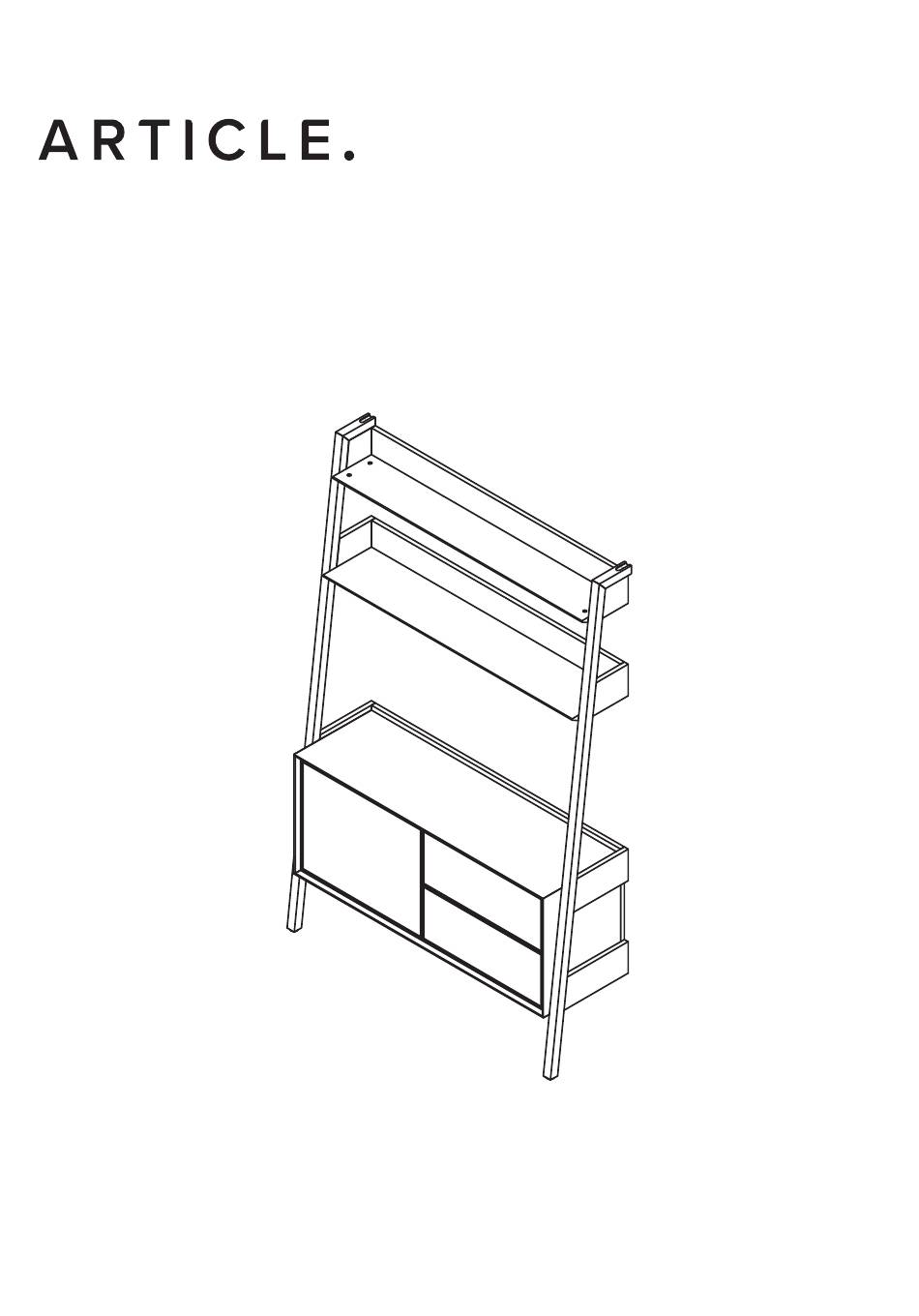

- Page 1 All manuals and user guides at all-guides.com VERSION 1.1 Assembly Instructions FANTOL Storage Shelf...
- Page 2 DIFFICULTY surface such as a carpet to prevent scratches. If you’re having difficulty, our friendly Customer Care team is always here to help. Call us at 1.888.746.3455 during business hours, email service@article.com or chat live at article.com. ANTI-TIP REQUIRED TOOL...
- Page 3 All manuals and user guides at all-guides.com Page 3 of 12 FANTOL Storage Shelf ASSEMBLED UNIT...
- Page 4 All manuals and user guides at all-guides.com Page 4 of 12 FANTOL Storage Shelf × 32...
- Page 5 All manuals and user guides at all-guides.com Page 5 of 12 FANTOL Storage Shelf Insert 2 wood dowels Insert 3 wood dowels for top 2 shelves. for cabinet. × 4 × 6...
- Page 6 All manuals and user guides at all-guides.com Page 6 of 12 FANTOL Storage Shelf Remove drawers from cabinet (E) before assembling with side frames. Press lever down on left side of drawer and up on right side of drawer at the same time to release and lift out.
- Page 7 All manuals and user guides at all-guides.com Page 7 of 12 FANTOL Storage Shelf Cam lock nut starting position: arrow pointing downwards, towards screw head. Cam lock nut end position: arrow facing upwards. × 16...
- Page 8 All manuals and user guides at all-guides.com Page 8 of 12 FANTOL Storage Shelf Insert 2 wood dowels into top 2 shelves (C/D), and 6 into cabinet (E). × 10...
- Page 9 All manuals and user guides at all-guides.com Page 9 of 12 FANTOL Storage Shelf Insert cam lock nuts (I) and turn with allen key (J) to secure. Ensure cam lock nuts are also secured on the backs of each shelf. × 16...
- Page 10 All manuals and user guides at all-guides.com Page 10 of 12 FANTOL Storage Shelf Insert shelf pins (K) at desired height and secure shelf (F) on pins. × 4...
- Page 11 All manuals and user guides at all-guides.com Page 11 of 12 FANTOL Storage Shelf ANTI-TIP RESTRAINT INSTALLATION WARNING! Serious or fatal crushing injuries can occur from furniture tip-over. To help prevent tip-over: 20 min • Install tip-over restraint provided. • Do not set heavy objects on top of this product, TIME # OF PEOPLE...
- Page 12 All manuals and user guides at all-guides.com Page 11 of 12 FANTOL Storage Shelf Hardware (M/N) to attach brackets to wall is designed for drywall. To attach this unit to another type of wall, consult with your local hardware store. Drill holes into drywall, insert wall plugs (M), and attach unit to wall with screws (N).
