DIFFUSER INSTALLATION GUIDE
(CONNECTED VIA A LOW PROFILE PLENUM BOX)
RONDO-100/ RONDO-125

Diffuser and plenum box preparation

......................................................
DIFFUSER PREPARATION

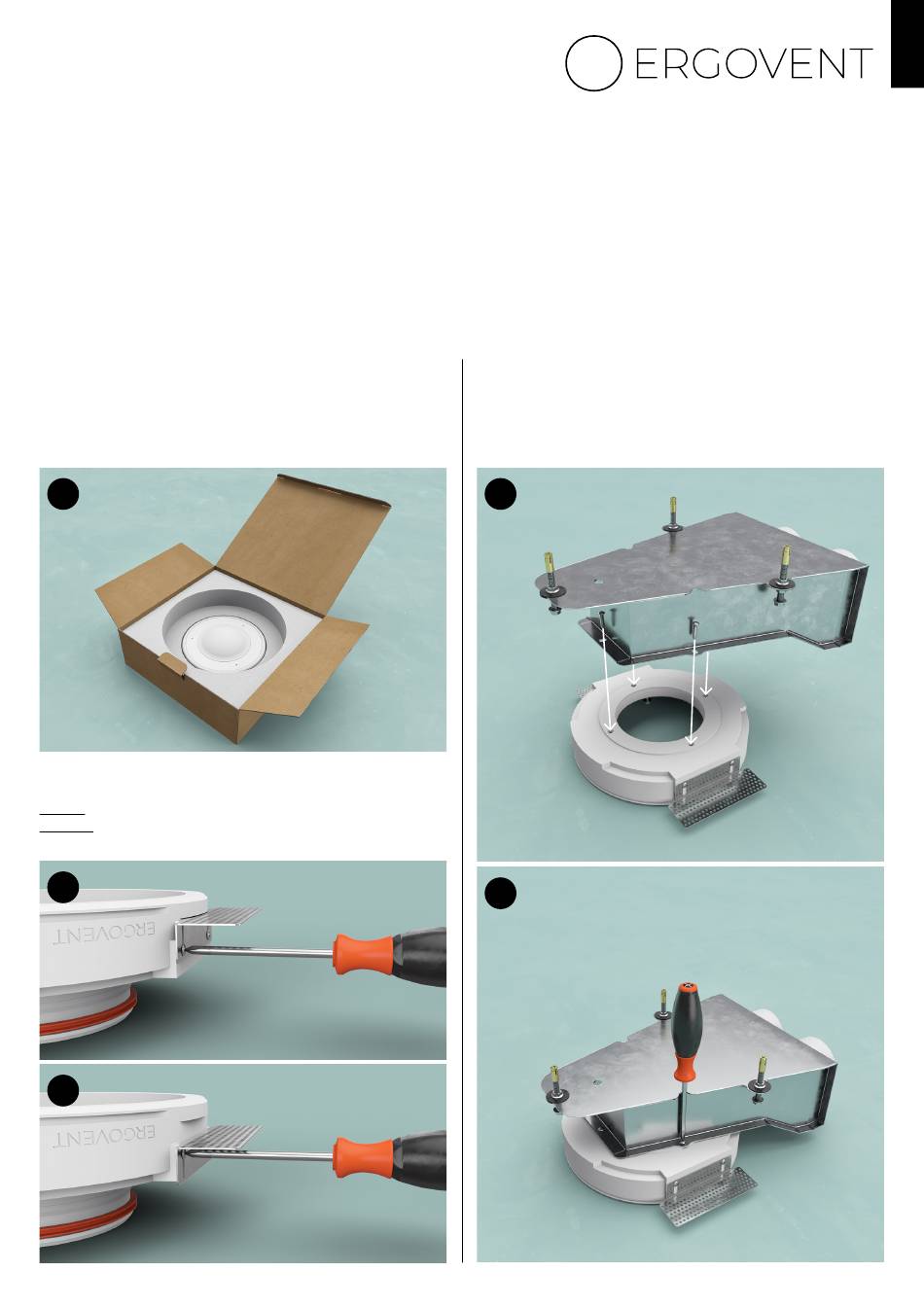

Remove the diffusers and side brackets from the boxes. Inspect
each diffuser for any cracks in the housing. Leave the covers
securely in the boxes (Image 1), as they will only be needed when
starting the painting.
1

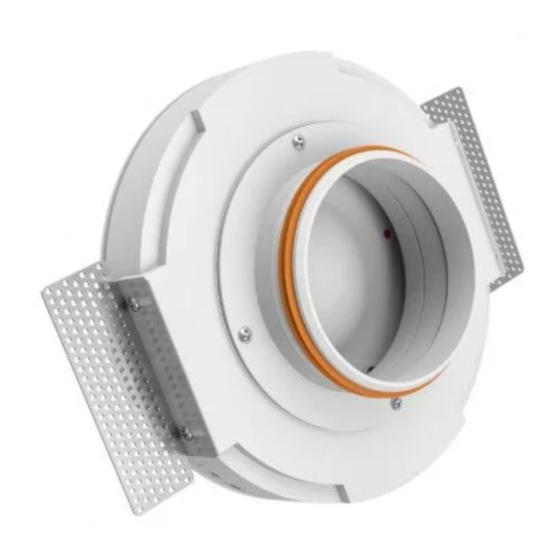

Use screws to attach the side fasteners. They can be applied to 1
or 2 layers of plasterboard.
1 layer: the element is placed against the edge (Image 2);
2 layers: the fastening is aligned with the protruding brim in the
housing (Image 3).
2
3
page 1
....................
page 1
.............................
page 3
.....................................
page 4
........................................
page 5
www.ergovent.com
PLENUM BOX ATTACHMENT
The plenum box is attached to the diffuser using three screws in
place of the diffuser coupling. The diffuser fasteners must face
sideways (Images 4 and 5).
4
5
