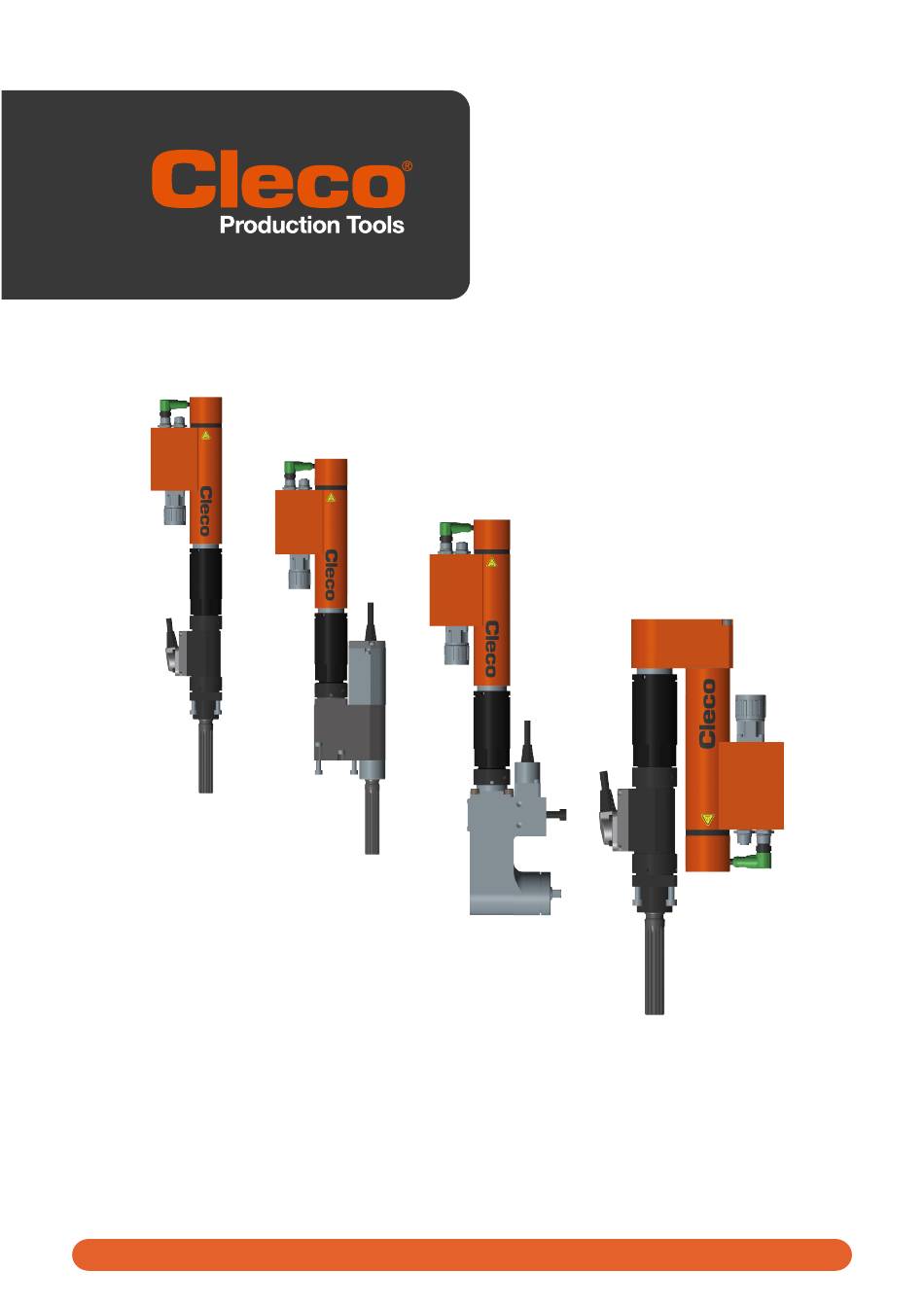

- Page 1 Installation Manual P2585JH-EN 2022-03 BD Series Cable management For additional product information, visit our website at www.clecoTools.com...
- Page 2 Apex Tool Group. Disclaimer Apex Tool Group reserves the right to modify, supplement, or improve this document or the product with- out prior notice. Trademark Cleco Production Tools is a registered trademark of Apex Brands, Inc.
-
Page 3: Table Of Contents
Measures ....................5 General information ......................5 Manually operated tools ....................6 Robotics applications ...................... 7 Use of cable ducts ......................8 Cable routing, transducer cable ..................8 Cable ....................10 Auxiliaries ................... 13 Apex Tool Group P2585JH | 2022-03... -
Page 4: About This Document
Specifies switches, pushbuttons or the keys of an external keyboard, e.g., <F5>. Courier Indicates Filenames and paths, e.g., setup.exe. Indicates lists, level 1. • Indicates lists, level 2. Indicates options. Indicates results. 1. (...) Indicates action steps. 2. (...) ► Indicates single action steps. P2585JH | 2022-03 Apex Tool Group... -
Page 5: Measures
► Only use the specified auxiliaries (see 6.3 Strain relief., Page 20) to relive cables of tensile forces. ► Do not use cable ties. Cable ties stress the cable and reduce the expected service life. ► Keep the number of plug connectors as low as possible. Apex Tool Group P2585JH | 2022-03... -
Page 6: Manually Operated Tools
► After installing cables, run a number of motion cycles and optimize the routing as necessary. Fig. 2-1: Example of the use of a manually-operated fixtured spindle Strain relief clamp Tool cable plug connection Strain relief strap P2585JH | 2022-03 Apex Tool Group... -
Page 7: Robotics Applications
► After installing cables, run a number of motion cycles and optimize the routing as necessary. Fig. 2-2: Example of a robotics application Strain relief strap Strain relief clamp Tool cable plug connection Balancer Plug connection fixing Apex Tool Group P2585JH | 2022-03... -
Page 8: Use Of Cable Ducts
► After installing cables, run a number of motion cycles and optimize the routing as necessary. Cable routing, transducer cable ► With a Velcro strip,see chapter 4 Auxiliaries, page 13 fasten the transducer cable tightly to the fixtured spindle. Size Velcro strip length Velcro strip length [cm] [cm] P2585JH | 2022-03 Apex Tool Group... - Page 9 Measures Examples of fastenings: Fig. 2-4: 1BD-2K-ZB Fig. 2-5: 1BD-2K-VK Fig. 2-6: 1BDU-2K-ZB Fig. 2-7: 1BDU-2K-VK Apex Tool Group P2585JH | 2022-03...
-
Page 10: Cable
962343-005 942769PT-002 943290PT-002 943835PT-002 … 962343-007 961923-340 (4Z2800G) Note Malfunction The total length of the tool cable must not exceed 50 m. ► Match the length of the tool cable with the extension cable. P2585JH | 2022-03 Apex Tool Group... - Page 11 Multiple bends 75 min. Rolling movement 110 min. Alternate bending Torsion length [mm] 500 min. (+180° around its own central axis) Max. acceleration [m/s²] 100 (10 G max.) Plug connection 0.25 g/cable 0.18 g/m Apex Tool Group P2585JH | 2022-03...
- Page 12 Multiple bends 105 min. Rolling movement 140 min. Alternate bending Torsion length [mm] 500 min. (+180° around its own central axis) Max. acceleration [m/s²] 100 (10 G max.) Plug connection 0.25 g/cable 0.18 g/m P2585JH | 2022-03 Apex Tool Group...
-
Page 13: Auxiliaries
ONE_WRAP Strap or bundling cables. Cables are not clamped too tightly and make the package flexible, in contrast to ca- ble ties. Do not use as strain relief! Apex Tool Group P2585JH | 2022-03... - Page 14 Fax: +52 (800) 685 5560 EUROPE | MIDDLE EAST | AFRICA ENGLAND FRANCE GERMANY HUNGARY Apex Tool Group UK Apex Tool Group SAS Apex Tool Group GmbH Apex Tool Group C/O Spline Gauges 25 Avenue Maurice Chevalier - ZI Industriestraße 1 Hungária Kft.
