4 Channel
AI BOX
Qualcomm products contained herein are products of Qualcomm Technologies, Inc. and/or its subsidiaries.
Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries. The
Made with Qualcomm Technologies logo is a trademark of Qualcomm Incorporated
Advertisement
Related Manuals for Bkav AI VIEW E120-FCWP
Summary of Contents for Bkav AI VIEW E120-FCWP

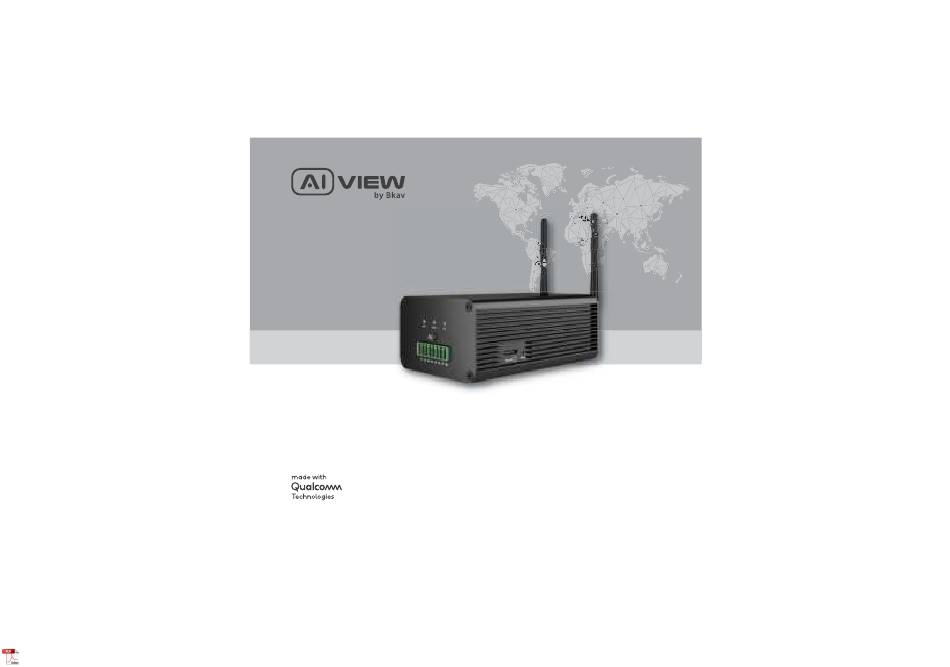

- Page 1 4 Channel AI BOX Qualcomm products contained herein are products of Qualcomm Technologies, Inc. and/or its subsidiaries. Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries. The Made with Qualcomm Technologies logo is a trademark of Qualcomm Incorporated...
- Page 2 INSTALATION GUIDE Model: E120-FCWP...
-
Page 3: Product Kit
PRODUCT KIT AI Box 12VDC/1A Adapter Wi-Fi Antenna GPS antenna Terminal block 4 Channel nnel AI BOX Qualcomm products contained herein are products of Qualcomm Technologies, Inc. and/or its subsidiaries. Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries. The Made with Qualcomm Technologies logo is a trademark of Qualcomm Incorporated Installation guide Thank you letter... -
Page 4: Technical Specification
TECHNICAL SPECIFICATION Power DC12V 1A/PoE Processor Qualcomm QCS605 Memory 8GB RAM, 16GB FLASH Operating temperature -20°C ~ 60°C (-4°F - 140°F) Connective WLAN 802.11 a/b/g/n/ac 2.4/5GHz 2x2 MIMO Ethernet Integrated PoE/RJ45 1Gbps Bluetooth 5.0 Location GPS/GLONASS/Beidou Dimensions (L x W x H) L136 x W80 x H51mm Weight 0.99lbs... -
Page 5: Product Overview
PRODUCT OVERVIEW NETWORK/STATUS/POWER Mode Button DI/DO terminal Wi-Fi AUDIO Wi-Fi DC12V HDMI SD CARD RESET TYPE-C... - Page 6 INSTALLATION GUIDE Step 1: The optional bracket allows you to install the AI Box to a wall or panel. Secure the bracket to the box using the included sunk head screws. Step 2: Secure the assembly to wall/panel using the included tapping screws and anchors.
- Page 7 INSTALLATION GUIDE Step 3: Install the dual wifi Antenna. Step 4: Install the GPS Antenna.
- Page 8 INSTALLATION GUIDE Step 5: Install Mic, Audio, USB Type-C, Micro HDMI. Step 6: Install SD Card. SD CARD AUDIO HDMI TYPE-C...
- Page 9 INSTALLATION DI/DO Step 7: Install Terminal connector. Step 8: Installing Cable DI/DO to block terminal. Then, to use Screwdriver fix the cable.
- Page 10 DI/DO PIN CONFIGURATION DI/DO termial DI1+ 1st Alarm input signal line terminal, positive DI1- 1st Alarm input signal line terminal, negative (GND) DI2+ 2nd Alarm input signal line terminal, positive DI2- 2nd Alarm input signal line terminal, negative (GND) 1st Alarm output signal line terminal 1 1st Alarm output signal line terminal 2 2nd Alarm output signal line terminal 1 2nd Alarm output signal line terminal 2...
- Page 11 INSTALLATION FOR SIGNAL CONNECTION Two options to connect devices: Option 1: Use the network cable connected from the PoE switch to the waiting PoE interface, no need to use 12VDC/2A power supply (Figure 1). Option 2: Use 12VDC power supply and the network cable connected from the switch (Figure 2). Switch POE E120-PCWP Any network camera...
- Page 12 ACCESSING THE AI BOX Password setting The IP address of AI Box is set to DHCP mode by default. For the AI Box enables the DHCP by default, you need to use the AI View Scanner App to scan IP. Note: To complete the installation steps for the AI Box, refer to the User Manual.
- Page 13 ACCESSING THE AI BOX Login screen When accessing the AI Box, a login window will appear. Enter your user name and password to access the AI Box. 1. Enter "admin" in the <User name> box. 2. Enter your chosen password in <Password> box. 3.
-
Page 14: Safety Information
AI Box. Improper installation may cause damage to the product. Contact Bkav's customer support or authorized Bkav agents if you experience any problems. Transportation: Use the original packaging, or equivalent, to avoid damaging the product during transportation. -
Page 15: Regulatory Information
REGULATORY INFORMATION FCC Statement: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. - Page 16 Model: E120-FCWP...
- Page 17 AI Box 4 Channel nnel AI BOX Qualcomm products contained herein are products of Qualcomm Technologies, Inc. and/or its subsidiaries. Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries. The Made with Qualcomm Technologies logo is a trademark of Qualcomm Incorporated...
- Page 18 DC12V 1A/PoE Qualcomm QCS605 8GB RAM, 16GB FLASH -20°C ~ 60°C (-4°F - 140°F) WLAN 802.11 a/b/g/n/ac 2.4/5GHz 2x2 MIMO Ethernet Integrated PoE/RJ45 1Gbps Bluetooth 5.0 Location GPS/GLONASS/Beidou D136 x R80 x C51mm 450g...
- Page 19 Wi-Fi AUDIO Wi-Fi DC12V HDMI SD CARD RESET TYPE-C...
- Page 22 SD CARD AUDIO HDMI TYPE-C...
- Page 24 DI/DO termial DI1+ DI1- DI2+ DI2-...
- Page 25 Switch POE E120-PCWP Switch POE E120-PCWP 12VDC/1A Adapter...
- Page 26 “Administrator password change” Administrator password change New password Confirm new password For a new password with 8 to 9 digits, you must use at least 3 of the following: uppercase/lowercase letters, numbers and special characters. For a password with 10 to 15 digits, you must use at least 2 types of those mentioned.
- Page 27 Màn hình Login “admin” <User name> <Password> User name Password...
- Page 28 THÔNG TIN AN TOÀN aiview.ai/warranty.
- Page 29 Chú ý:...
- Page 30 Website: www.aiview.ai Email: aiview@bkav.com...
