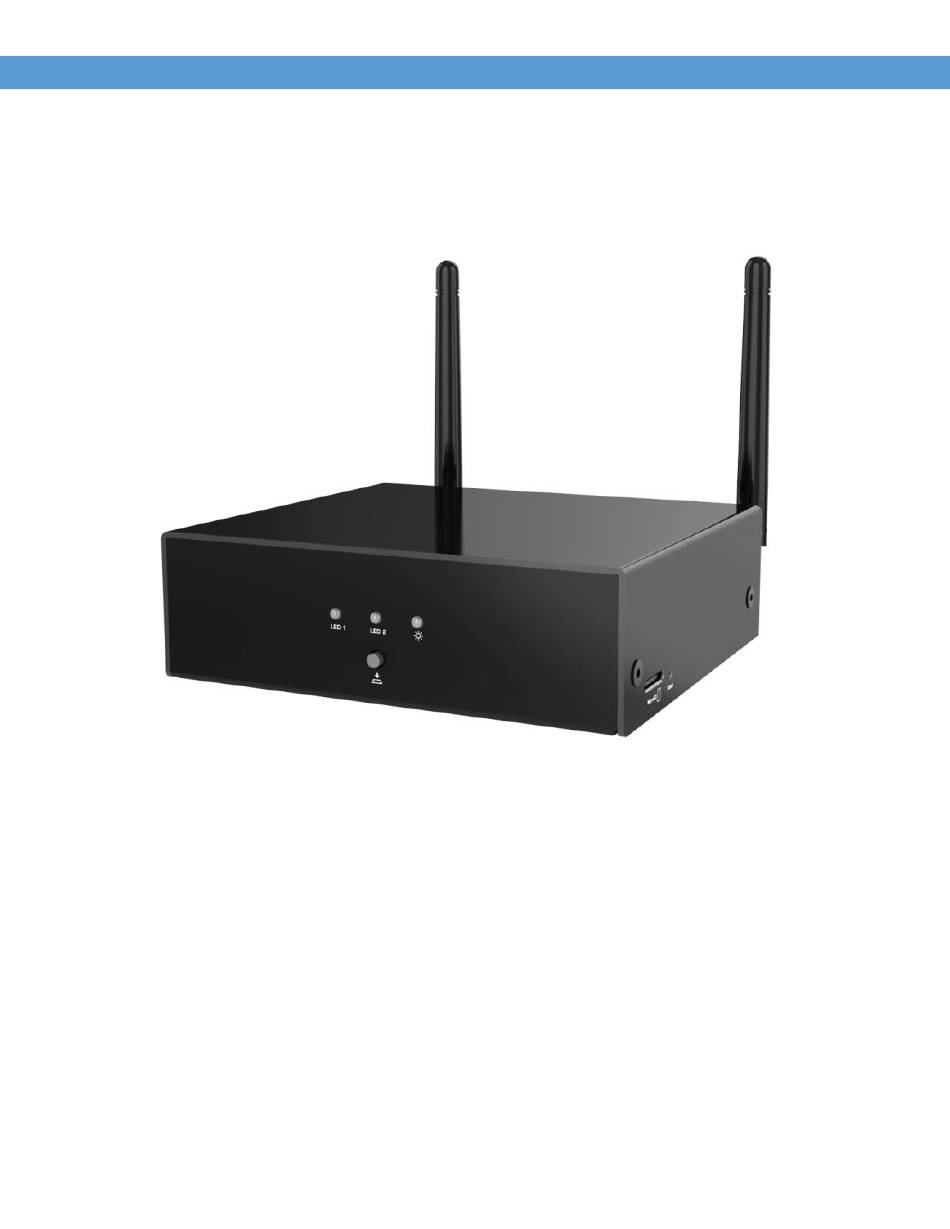

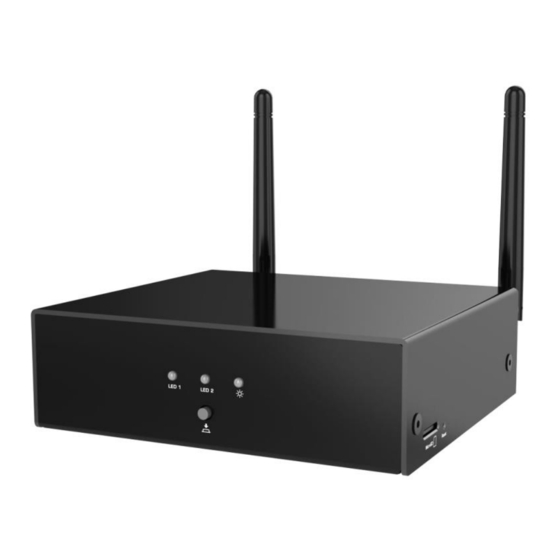

- Page 1 USER MANUAL AI BOX USER MANUAL QCS605 AI BOX P a g e 1 | 8...
- Page 2 USER MANUAL AI BOX Dimensions P a g e 2 | 8...
- Page 3 USER MANUAL AI BOX Physical Description 1. Outer View PWR/STATUS/LAN LEDs MODE BUTTON Wifi Wifi Audio DI/DO HDMI DC 12V LAN USB terminal Type-C Card Reset P a g e 3 | 8...
- Page 4 USER MANUAL AI BOX 2. Mode Button Mode button is used in this device is tactile switches type, user-developed operating script. 3. Reset Button The reset button is used to factory reset the device. Reset procedure: Unplug the Box B01 -> Hold down the reset button -> Plug in the power ->...
- Page 5 Power is ON/OFF Status RG LED User-developed operating script. LAN RG LED User-developed operating script. 8. SD Card QCS605 supports Micro SD Card up to 2TB. 9. Hardware Installation. 1. Install the dual Wifi Antenna. P a g e 5 | 8...
- Page 6 USER MANUAL AI BOX 2. Install the GPS Antenna. GPS Antenna 3. Install Mic, Audio, USB Type-C, Micro HDMI Audio USB Type-C HDMI P a g e 6 | 8...
- Page 7 USER MANUAL AI BOX 4. Install SD Card. Card 5. Install DI/DO a. Install Terminal connector. P a g e 7 | 8...
- Page 8 USER MANUAL AI BOX b. Installing Cable DI/DO to block terminal. Then, to use Screwdriver fix the cable. P a g e 8 | 8...
