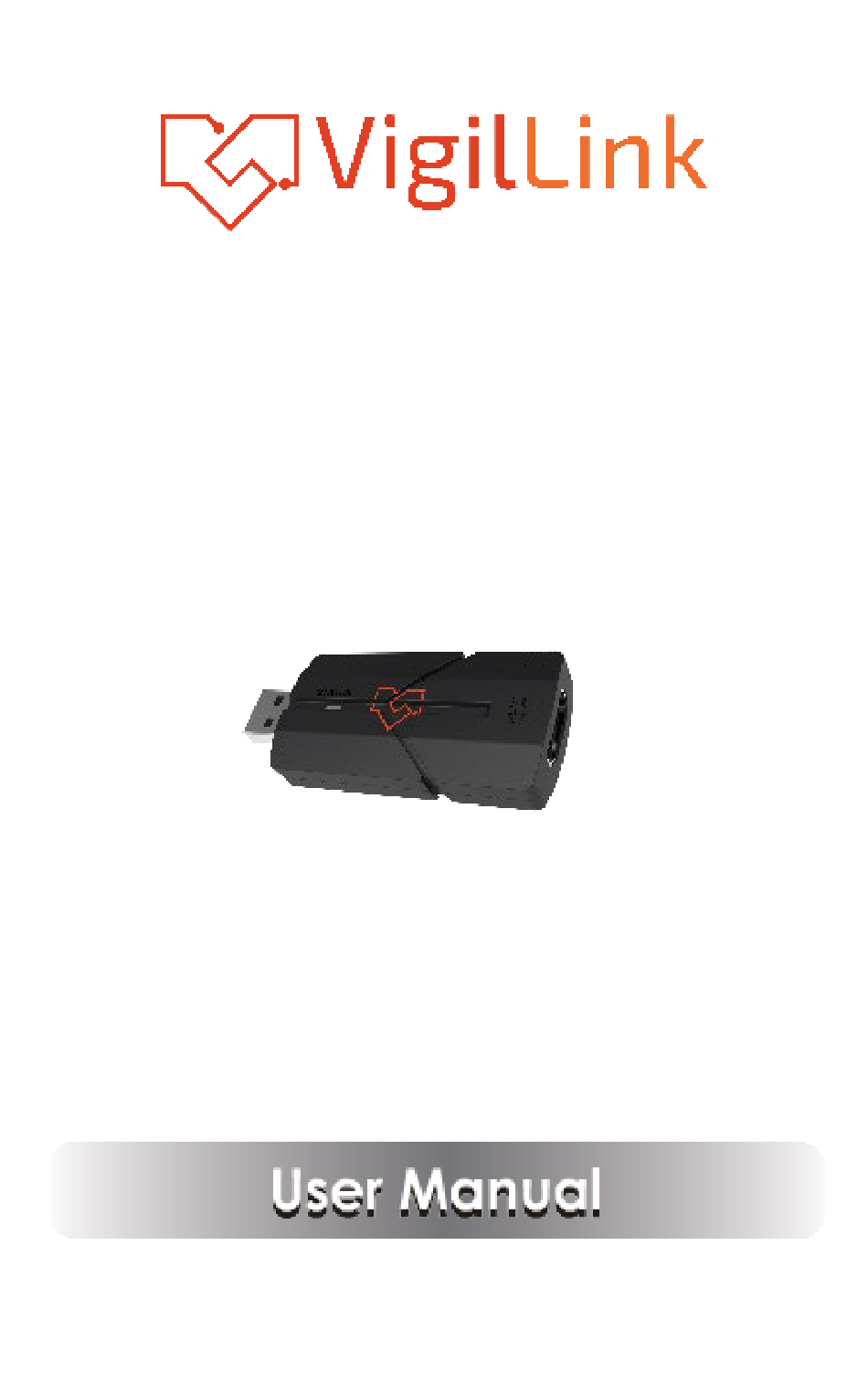

- Page 1 VLUC-USB22K 1080p HDMI to USB2.0 Video Capture Ver 1.02...
-
Page 2: Table Of Contents
Thank you for purchasing this product Please read these instructions carefully optimum performance and safety before connecting, operating, or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that electrical spikes may damage, surges, electric shock, lightning strikes, etc. -
Page 3: Introduction
1. Introduction This HDMI to USB2.0 video capture can collect HDMI audio & video input signals. The captured video resolution is up to 4K2K@30Hz, and the output resolution is up to 1080P@60Hz. The product has the advantages of high performance, high compatibility, and manageable carrying and installation. -
Page 4: Operation Controls And Functions
① USB port: USB signal output port, connect to the USB 3. Operation Controls and Functions ② STATUS LED: Red LED is always on when the port of a PC directly. capture is related to active HDMI IN signal source, flashes slowly when not connected, about 1 second ③... - Page 5 Connection Input 1x HDMI [Type A 19-pin female] 1x USB [Type A male] Output Mechanical Housing Plastic Enclosure Color Black Dimensions 51mm[W] x 31mm[D] x 13mm[H] Weight Power Supply PC USB 5V Power Consumption 1.75W Operating 32 - 104°F / 0 - 40°C Temperature Storage Temperature -4 - 140°F / -20 - 60°C Relative Humidity...
-
Page 6: Package Contents
① 1× HDMI Capture 5. Package Contents ② 1× User Manual 6. Software instruction Take OBS (Open Broadcaster Software) software, windows10 system as an example. The specific operation is as below: Step 1: Install the “OBS” application software on the computer. - Page 7 option box, then check “Use a custom audio device” under Audio Output Mode and select “USB Digital Audio” for Audio Device. Then click the “OK” button. Step 5: Click “Settings” to open the Settings page, then select the “Output” option. On this page, you can choose a recording path for video capture, set recording quality, format, etc.
- Page 9 Step 6: On the Settings page, you can select the “Audio” option. On this page, you need to set “Sample Rate” and select “USB Digital Audio” for the “Mic/Auxiliary Audio.” Then click the “Apply” button and the “OK” button. Step 7: You can select the “Video” option on the Settings page.
- Page 10 Step 8: Use the mouse to click the Setting icon, then select the “Advanced Audio Properties” option. And choose the “Monitor and Output” option on the Advanced Audio Properties page. Then click the “Close” button. Step 9: When you have finished all settings, you can click the “Start Recording”...
-
Page 11: Application Example
7. Application Example HDMI and HDMI High-Definition Multimedia interface and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
