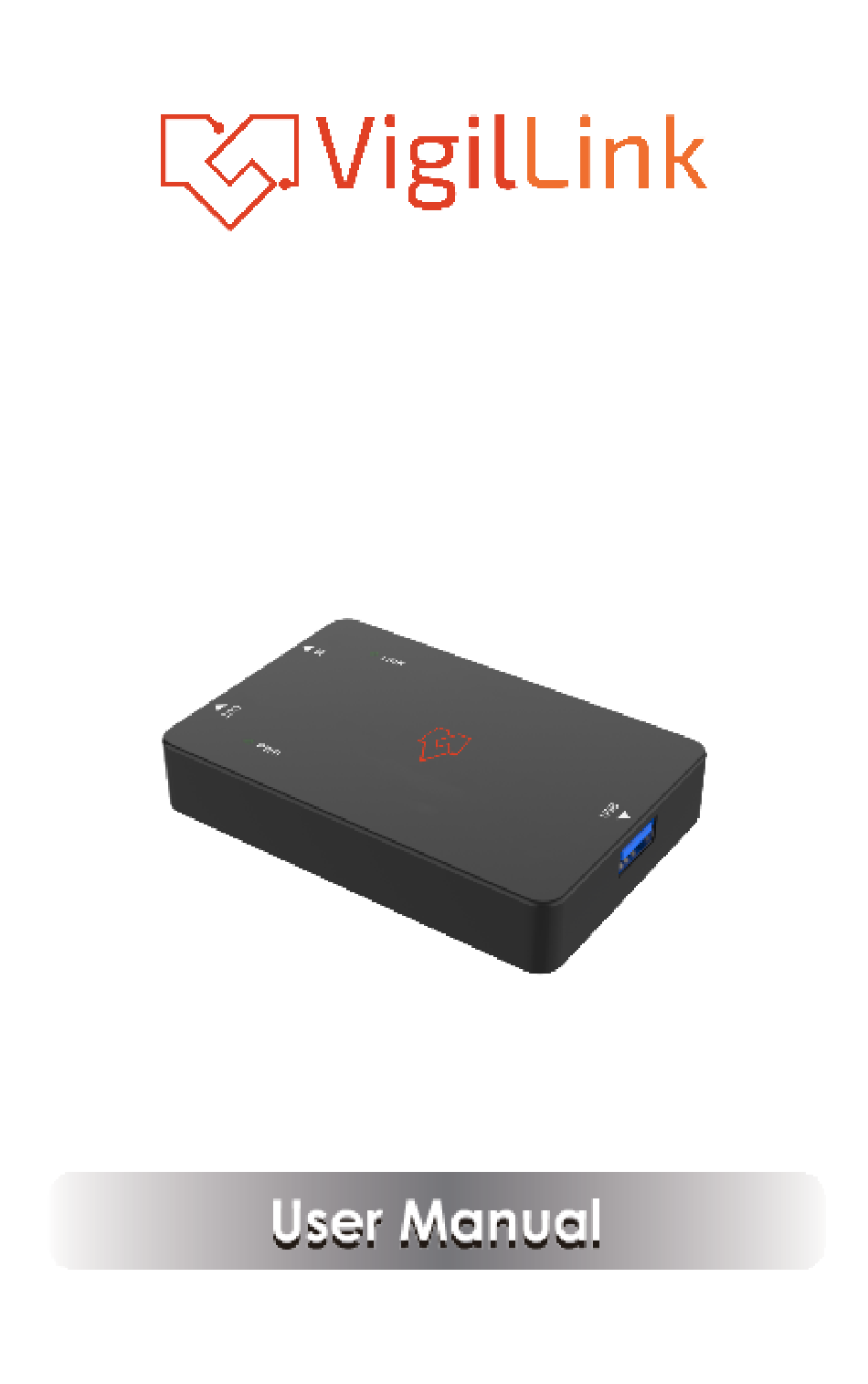

- Page 1 VLUC-USB34K 4K60 downscale to 1080p60 and to USB3.0 Video Capture VER 1.02...
-
Page 2: Table Of Contents
Thank you for purchasing this product Please read these instructions carefully optimum performance and safety before connecting, operating, or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that electrical spikes may damage, surges, electric shock, lightning strikes, etc. -
Page 3: Introduction
1. Introduction This HDMI to USB video capture dongle has 1 HDMI INPUT, 1 HDMI LOOP OUT, and 1 USB OUTPUT. The HDMI INPUT supports inputting videos with resolutions up to 4K60. The USB OUTPUT can be used to power the device and capture videos with solutions up to 1080P60. -
Page 4: Package Contents
3. Package Contents ① 1× HDMI to USB Video Capture Dongle ② 1× USB 3.0 Type-A Cable (0.5m, Blue) ③ 1× User Manual 4. Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 Video Bandwidth HDMI: 18 Gbps; USB: 5Gbps Up to 4K2K@60Hz 4:4:4 Video Resolution Video will be in YUV2 with no... - Page 5 USB Version USB 3.1 GEN 1 Human body model — ±8kV (air-gap discharge) & ESD Protection ±4kV (contact discharge) Connection × Input HDMI Type A [19-pin female] × HDMI Type A [19-pin female] Outputs × USB Type A [female] Mechanical Housing Plastic Enclosure Color...
-
Page 6: Operation Controls And Functions
5. Operation Controls and Functions Name Function Description The HDMI input port connects to a HDMI IN source device via the HDMI cable. HDMI loop out port, connect to a display device such as TV via the HDMI OUT HDMI cable. PWR LED The power LED lights in green (Green) -
Page 7: Obs Operation Instructions
6. OBS Operation Instructions The OBS (Open Broadcaster Software) Studio software must be installed on your PC before video capture. After the device connection, you can follow the steps below to process the OBS settings. Step 1: Download the “OBS” application to your computer first. - Page 8 Step 4: Select “FHD Video-USB3.0” from the Device drop-down menu at the beginning of the pop-up Properties page, then check “Use custom audio device” and choose “FHD Audio” at the bottom of the page. After that, click “OK” to save the property settings.
- Page 9 Step 5: On entering the setting page, click the “Audio” tab, then choose “48Khz” as the Sample Rate and “USB3.0 Capture Digital Audio” for “Mic/Auxiliary Audio Device.” After that, click “Apply” and “OK” to save the audio settings. 7/12...
- Page 10 Step 6: Click the setting icon on the Audio Mixer window, and select “Advanced Audio Properties.” When a box pops out, you can choose “Monitor and Output” and click “Close” to exit out of the advanced audio properties settings. 8/12...
- Page 11 Step 7: On entering the setting page, click the “Video” tab, then you can set “Base Resolution” and “OUTPUT Resolution.” After that, click “Apply” and “OK” to save the Video settings. 9/12...
- Page 12 Step 8: On entering the setting page, click the “OUTPUT” tab, then select a “Recording Path,” set “Recording Quality,” “Recording Format,” etc. After that, click “Apply” and “OK” to save the Output settings. 10/12...
- Page 13 Step 9: When all settings have been completed, click “Start Recording” to start video capture. Clicking it again, the video capture will be stopped. Step 10: When the video is captured, click “Exit” and the software will be closed. 11/12...
-
Page 14: Application Example
7. Application Example HDMI and HDMI High-Definition Multimedia interface and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. 12/12...
