5323015COM

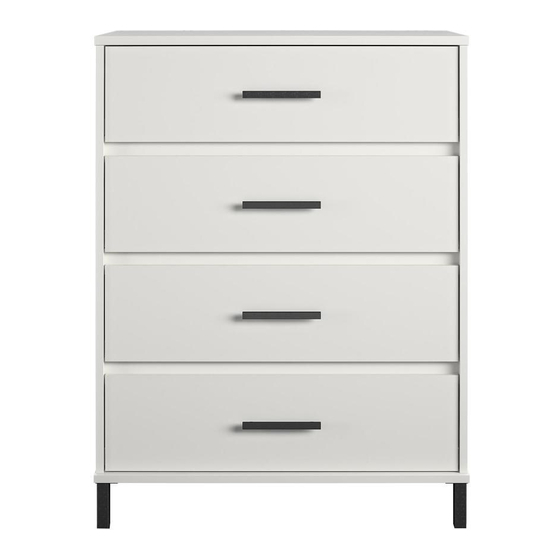

4 Drawer Dresser
Date of Purchase ___ / ___ / ___
Lot Number:
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Do Not Return This Product!
Contact our customer service team for help first.
Call: 1-800-489-3351 (toll free)
Monday-Friday 9am - 5pm CST
Visit: www.ameriwoodhome.com
WARNING
- Unit can tip over causing severe injury or death.
- Anchor unit to stud in wall (if instructed to).
- Do Not allow children to climb on unit.
- Put heavy items on lower shelves or drawers.
B345323015COM1
Easy
Assembly Difficulty Meter
Follow Ameriwood Home
You
Tube
Tough
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ameriwood HOME 5323015COM
Summary of Contents for Ameriwood HOME 5323015COM
- Page 1 Visit: www.ameriwoodhome.com Easy Tough Assembly Difficulty Meter WARNING Follow Ameriwood Home - Unit can tip over causing severe injury or death. - Anchor unit to stud in wall (if instructed to). - Do Not allow children to climb on unit. Tube...
-
Page 2: Helpful Hints
Contact Us! Do NOT return this product! Contact our friendly customer service team first for help. Assembly Tips Call us! 1-800-489-3351 Monday-Friday 9am - 5pm CST Tube Visit ameriwoodhome.com to view the limited warranty valid in the U.S. and Canada. Helpful Hints PEOPLE NEEDED FOR ASSEMBLY: 1-2 ESTIMATED ASSEMBLY TIME: 2 HOURS... -
Page 3: Before You Start
Before You Start Read through each step carefully and follow the proper order Separate and count all your parts and hardware Give yourself enough room for the assembly process Have the following tools: Flat Head Screwdriver, #2 Phillips Head Screwdriver and Hammer Caution: If using a power drill or power screwdriver for screwing, please be aware to slow down and stop when screw is tight. -
Page 4: Board Identification
Board Identification Not actual size Left Panel Bottom Right Panel 35323015040 35323015010 35323015030 35323015020 Drawer Brace Support Drawer Front Drawer Bottom 35323015050 35323015060 39991340071310D 35538000121 BACK SIDE This piece is paperboard construction. It is not made from wood, but is required for the Back Panel assembly of your unit. - Page 5 Board Identification Not actual size This piece is paperboard construction. It is not made from wood, but is required for the assembly of your unit. SIDE BACK SIDE ameriwoodhome.com...
-
Page 6: Part List
Part List Actual Size (x14) (x10) (x44) (x34) (x14) (x40) #A22620 #A21660 #A12120 #A21110 #A22610 #A11080 cam lock wood dowel #8 x 7/16" pan head nail cam bolt #6 x 7/16" flat head (x8) (x24) (x4) (x4) #A17400 #A23030 #A21970 #A21520 7/8"... - Page 7 STEP 1 Quick Assembly Proper orientation of CAM LOCK (x2) (x2) (x3) #A22620 #A21660 #A22610 finished edge ameriwoodhome.com...
- Page 8 STEP 2 Marked with a "L" Left Cabinet Member (x4) (x12) #A56770 #A11080 finished edge ameriwoodhome.com...
- Page 9 STEP 3 Quick Assembly (x2) (x2) Proper orientation of CAM LOCK (x3) #A22620 #A21660 #A22610 finished edge ameriwoodhome.com...
- Page 10 STEP 4 Marked with a "R" Right Cabinet Member (x4) (x12) #A56770 #A11080 finished edge ameriwoodhome.com...
- Page 11 STEP 5 Do not fully tighten this screw. (x4) (x1) #A22610 #A84050 finished edge ameriwoodhome.com...
- Page 12 STEP 6 (x2) #A23030 Pilot holes in bottom surface. * raw edges are shaded ameriwoodhome.com...
- Page 13 STEP 7 Quick Assembly Proper orientation of CAM LOCK (x6) (x6) #A22620 #A21660 ameriwoodhome.com...
- Page 14 STEP 8 * raw edges are shaded ameriwoodhome.com...
- Page 15 STEP 9 (x2) #A23030 Press the right panel (B) against the three supports (E) so the cam bolts (2) insert into the end hole of the supports (E). Turn the cam locks (1) clockwise to lock in place. Attach the bottom (D) to the right panel (B) with two screws (8) as shown.
- Page 16 STEP 10 ameriwoodhome.com...
- Page 17 STEP 11 (x34) #A21110 IMPORTANT! THE BACK PANEL IS A STRUCTURAL PART OF THIS UNIT AND MUST BE INSTALLED PROPERLY. Position the back panel as shown. Flush the bottom edge of the back panel with the bottom edge of the bottom (D). Align squarely and nail (6) straight into back edges as shown. Notch in back panel positioned here.
- Page 18 STEP 12 (x12) (x4) #A12120 #A44500 ameriwoodhome.com...
- Page 19 STEP 13 (x4) (x16) (x8) #A22610 #A12120 #A54520 Note: For the next several steps you will be assembling the drawer. Your model has four drawers. You will repeat each step four times until all four drawers are assembled. ameriwoodhome.com...
- Page 20 STEP 14 (x16) #A12120 Be sure the groove in the drawer sides is centered with the groove in the drawer front. If needed, loosen screws (4) in the drawer front, make needed adjustment and re-tighten screws. SIDE SIDE ameriwoodhome.com...
- Page 21 STEP 15 Quick Assembly Proper orientation of CAM LOCK (x4) (x4) #A22620 #A21520 You will need to tap the compression dowel (10) with a hammer to fully insert. ameriwoodhome.com...
- Page 22 STEP 16 SIDE SIDE ameriwoodhome.com...
- Page 23 STEP 17 Slide the drawer bottom (G) into the groove of the drawer sides and drawer front. SIDE raw surface SIDE ameriwoodhome.com...
- Page 24 STEP 18 You will need to tap with a hammer to fasten. (x24) #A21970 SIDE BACK SIDE ameriwoodhome.com...
- Page 25 STEP 19 Left Drawer Member Right Drawer Member (x4) (x4) (x16) (x8) #A56770 #A52695 #A11080 #A17400 Marked with a "R" Attach slides before handle. Marked with a "L" SIDE SIDE ameriwoodhome.com...
- Page 26 STEP 20 For Masonry, Concrete, or other wall materials: Consult your local hardware store for appropriate anchors to securely attach the safety bracket. (x1) #A84050 IMPORTANT: THIS UNIT MUST BE SECURE TO THE WALL TO HELP PREVENT TIPOVER. FOLLOW THESE INSTRUCTIONS TO INSTALL THE ANTI-TIPPING SAFETY BRACKET PROVIDED WITH THIS PRODUCT.
- Page 27 STEP 21 Note: The drawer bracket holes are slotted. Drawer fronts can be adjusted by loosening screws, making needed adjustments and retightening screws. roller cabinet member drawer runner roller ameriwoodhome.com...
- Page 28 Maximum Loads This unit has been designed to support the maximum loads shown. Exceeding these load limits could cause sagging, instability, product collapse, and/or serious injury. 35 lbs 50 lbs 15.8 kg 22.6 kg (each drawer) Warning: Risk of injury to persons - do not place a television on this furniture. This furniture is not approved for use with a television.
- Page 29 Visit your local retailer's website, rate your purchased product and leave us some feedback! We would like to extend a big "Thank You" to all of our customers for taking the time to assemble this Ameriwood Home product, and to give us your valuable feedback. ameriwoodhome.com Tube...
- Page 30 Español Cubierta Delantera Este libro de instrucciones contiene información IMPORTANTE de seguridad. Por favor lea y manténgalo para referencia en el futuro. No Regrese este producto! Comuniquese con nuestro amistoso equipo de servicio al cliente para obtener ayuda. Llamenos al: 1-800-489-3351 (Gratis) Lunes - Viernes 9am - 5pm CST Visitar: www.ameriwoodhome.com PRECAUCION Este mueble puede volcarse y causar graves heridas y/o muerte.
- Page 31 Español Página 12 Agujeros guía en la superficie inferior. Página 15 Presione el panel derecho (B) contra los tres soportes (E) para que los pernos de leva (2) se inserten hasta el final del orificio de los soportes (E). Gire los seguros de leva (1) en el sentido de las agujas del reloj para bloquearlos.
- Page 32 Español Página 26 Para mampostería, concreto u otro tipo de paredes: Acude a tu ferretería local para obtener los anclajes adecuados para fijar de forma segura el soporte de seguridad. IMPORTANTE: ESTA UNIDAD DEBE ASEGURARSE A UNA PARED PARA EVITAR QUE SE VUELQUE. SIGUE ESTAS INSTRUCCIONES PARA INSTALAR EL SOPORTE DE SEGURIDAD ANTICAÍDA QUE SE PROPORCIONA JUNTO CON ESTE PRODUCTO.
- Page 33 Visite el sitio web de su tienda local, califique su comprado y denos sus comentarios! Nos gustaría enviar un gran "Agradecimiento" a todos nuestros clientes por tomarse el tiempo de ensamblar este producto de Ameriwood Home, y por darnos sus valiosos comentarios. Gracias Français Couverture Avant CE LIVRET D'INSTRUCTION CONTIENT DES INFORMATIONS IMPORTANTES SUR LA SÉCURITÉ.
- Page 34 Français -Les glissières sont marquées d'un R (droit) et d'un L (gauche) pour un bon placement -Assurez-vous toujours de faire face la pointe situé sur le haut de la Serrure de Came vers le bord extérieur -Utiliser tous les clous fournis pour le panneau arrière et les répartir également -Le panneau arrière doit être utilisé...
- Page 35 Français Page 20 Vous assurer que l'encoche sur les côtés du tiroir correspondent avec l'encoche sur la face avant du tiroir. Si nécessaire, desserrer les vis (4) dans le devant du tiroir, effectuer le réglage nécessaire et resserrer les vis. Page 21 Vous devrez taper la cheville de compression (10) avec un marteau pour l'insérer complètement.
- Page 36 Visitez le site Web de votre détaillant local, évaluez votre produit acheté et laissez-nous quelques commentaires ! Nous tenons à offrir un grand "Merci" à tous nos clients pour avoir pris le temps d'assembler ce produit "Ameriwood Home", et de nous donner vos commentaires précieux. Merci ameriwoodhome.com...
