Summary of Contents for Solid Alliance eROU

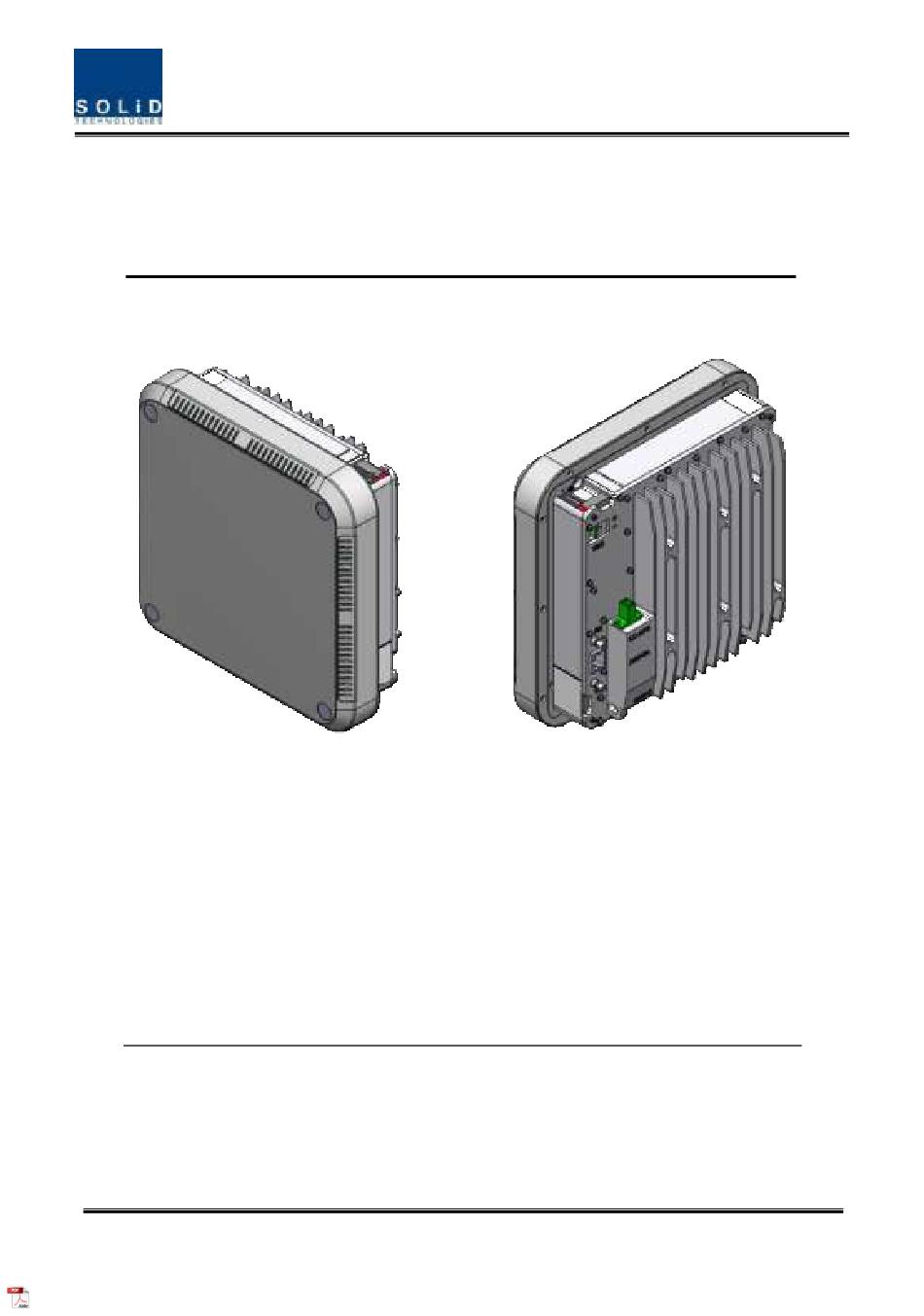

- Page 1 Alliance eROU & eROUa User Manual Document Reference: Version: V1.2 Document Status: Release 4 Issue Date: Jan 25, 2022 Author: Hyo-Seok Oh Department: R&D Division Team 2 Authorizing Manager: hyun-suk Chae Confidential & Proprietary 1/20...
- Page 2 The serial numbers are located on the back of the unit, as well as on the box in which they were delivered. Additional support information may be obtained by accessing the SOLiD Tehcnology, Inc. website at www.solid.co.kr...
-
Page 3: Table Of Contents
Contents Section1 Safety & Certification Notice .................. 4 Section2 System configuration and Functions ..............9 2.1 eROU(edge Remote Optic Unit) ................9 2.1.1 Specifications of eROU ................11 2.1.2 Port on eROU ................... 12 2.1.2.1 Functions ....................12 2.2 AC/DC Adaptor information ................14 Section3 System Installation .................... -
Page 4: Safety & Certification Notice
Section1 Safety & Certification Notice Confidential & Proprietary 4/20... - Page 5 - Any DAS system or Fiber BDA will generate radio (RF) signals and continuously emit RF energy. Avoid prolonged exposure to the antennas. SOLiD recommends maintaining a 60 cm minimum clearance from the antenna while the system is operating.
- Page 6 - Only 50 ohm rated antennas, cables and passive equipment shall be used with this remote. Any equipment attached to this device not meeting this standard may cause degradation and unwanted signals in the bi-directional system. All components connected to this device must operate in the frequency range of this device.
- Page 7 - Certification FCC: This equipment complies with the applicable sections of Title 47 CFR Parts 15,22,24,27 and - Use of unauthorized antennas, cables, and/or coupling devices not conforming with ERP/EIRP and/or indoor‐only restrictions is prohibited. - Home/ personal use are prohibited. ...
- Page 8 RSS-GEN (6.8 Transmit antenna) Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.
-
Page 9: Section2
Section2 System configuration and Functions 2.1 eROU (edge Remote Optic Unit) & eROUa The eROUa is a coverage system for in-building services delivering voice and data in high quality and for seamlessly. The system covers general public institutions and private facilities. * Shopping malls * Hotels * Campus areas... - Page 10 <Integrated Antenna> <External Antenna> Figure 2. eROU outer Look <Only External Antenna> Figure 3. eROUa outer Look Confidential & Proprietary 10/20...
-
Page 11: Specifications Of Erou
Specifications of eROUa Spec. Item Remark eROU 700LTE_FN +19dBm 8085 1900P The rated mean output Power per band AWS13 +23dBm 2300WCS 2500_100TDD 3500CBRS 35MHz 700LTE_FN 39MHz 8085 32MHz 1900P 65MHz The nominal downlink bandwidth AWS13 70MHz 2300WCS 10MHz 2500_100TDD 194MHz 3500CBRS 35MHz 700FN B1 : 17MHz... -
Page 12: Port On Erou
2500_100TDD 67dB 3500CBRS 8085 52dB 3500CBRS 2300WCS 48dB Uplink 700LTE_FN 1900P 45dB AWS13 2500_100TDD 50 ohm Input/ Output Impedance 2.6 kg(Internal) Weight 3.0 kg(External) Common Part Power consumption Temperature range -5°C to +50°C Ambient Temperature 5% ~ 90% Non-condensing Humidity Range Sealing (Remote Unit) IEC/UL/CSA 62368-1 220 x 220 x 90... - Page 13 <External Antenna> Figure 5. The name of each port on eROUa Confidential & Proprietary 13/20...
-
Page 14: Ac/Dc Adaptor Information
Port Quantity Remark Optical Port LC/APC ANTENNA PORT(External Only) 2.2-5 type female Power IN Terminal_Block_CONN_2P(TLPS-302V-02P-G) ADD ON eROU Port QMA-type female ADD ON eROU Port RJ45 USB Port USB-C Type 2.2 AC/DC Adaptor information SHENZHEN HONOR ELECTRONIC Manufacturer ADS-65DI-48-1 48065E Model name Input range 100-240V, 50/60Hz Specification... -
Page 15: Section3
Section3 System Installation eROU Installation The following table shows the required accessories and tools for installing eROU. Q’ty Tools Specification Remark (+), Ø3.0 For fixing Length is more than 20mm 3.1.1 eROU Enclosure installation The eROU can be mounted on a wall or ceiling. and divided into the version of External Antena and the version of Internal Antena. - Page 16 Figure 4. Dimension used to install eROU (internal) Figure 3. Dimension used to install eROU (external) Confidential & Proprietary 16/20...
- Page 17 Figure 4. Dimension used to install eROUa (external) Confidential & Proprietary 17/20...
-
Page 18: Erou(External Antenna) Mount Installation
3.1.2 eROU & eROUa (External Antenna) Mount Installation Confidential & Proprietary 18/20... -
Page 19: Installation Cable Gland
3.1.3 Installation Cable Gland 3.1.3.1 eROU 3.1.3.2 Combine of eROU and cROU (extended type) From/To eHUB Confidential & Proprietary 19/20... -
Page 20: Power Cabling
3.1.3.3 Combine of eROU and eROUa 3.1.4 Power cabling 1. The eROU receives DC power from the eHub or external adapter. 2. Cable length between eHub and eROU supports up to 1 km.(Cable specifications recommend AWG14 and Cable type shall be marked “CL2”.) 3.
