INSTRUCTION MANUAL
Installation and Users Manual for GPS15 Grifco Protector

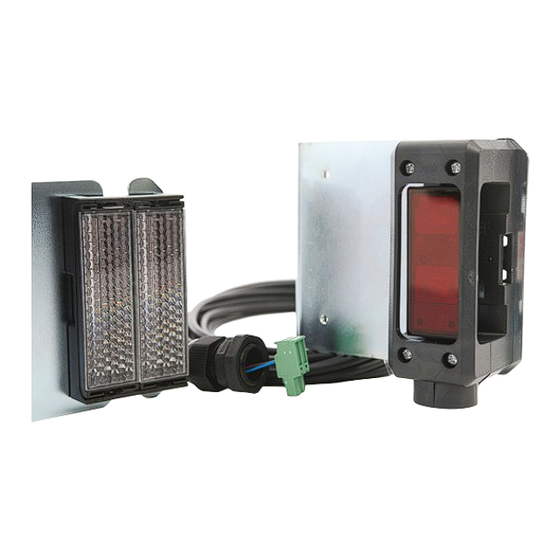

System 15 Metre Monitored Reflective PE Beam Kit
Chamberlain Australia Pty Ltd
Unit 1, 75 Epping Rd
North Ryde NSW 2113
Ph: 1800 GRIFCO
www.grifco.com.au
Ref: D-M-ACG-070B
GPS15
GPS15
Chamberlain New Zealand Ltd
17B Arrenway Drive, Rosedale 0623
Auckland
Ph: 0800 653 667
www.grifco.co.nz
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Grifco GPS15
Summary of Contents for Grifco GPS15
- Page 1 GPS15 INSTRUCTION MANUAL GPS15 Installation and Users Manual for GPS15 Grifco Protector System 15 Metre Monitored Reflective PE Beam Kit Chamberlain Australia Pty Ltd Chamberlain New Zealand Ltd Unit 1, 75 Epping Rd 17B Arrenway Drive, Rosedale 0623 North Ryde NSW 2113...
-
Page 2: Table Of Contents
CONTENTS CARTON INVENTORY ..............................2 SAFETY INSTRUCTIONS ............................3-4 INTRODUCTION ................................5 IDENTIFYING YOUR COMPONENTS ..........................5 INSTALLATION ................................6-15 PLANNING ......................................6 ENTRAPMENT PROTECTION ................................6 WALL MOUNTING ....................................7 ELECTRICAL CONNECTION EDRIVE AND GLM ............................8 EDRIVE AND GLM DIP SWITCH SETTING AND DOOR BEHAVIOUR ....................8 ELECTRICAL CONNECTION SDRIVE ..............................9 ELECTRICAL CONNECTION LSDRIVE ..............................10 ELECTRICAL CONNECTION LRDRIVE ..............................11... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS WARNING Please read these instructions carefully. Failure to follow the instructions will void the warranty. Failure to follow the instructions may result in injury, death or damage to property. WARNING After the installation, a final test of the full function of the system and, where present, the full function of the safety devices must be performed. - Page 4 Children should be supervised to ensure that they do not play with the appliance. • Use the operator for its intended purpose. GLM6 series controls are designed for operating Grifco operators on spring balanced roller shutters, spring balanced roller doors and counterweighted bi-fold and vertical lift doors.
-
Page 5: Introduction
Congratulations on your purchase of the Grifco® Protector System model GPS15. The GPS15 is a single sided safety device providing monitored Entrapment Protection for use with Grifco® or Merlin® door operators and may be installed in areas exposed to rain or moisture up to an IP67 rating. -
Page 6: Installation
Any reflective surface on vehicles or surroundings that may affect the operation of the GPS15. • When installing GPS15 with bi-fold doors, position the photoelectric sensor and reflector so that the door does not break the beam as it is operated. -
Page 7: Wall Mounting
Install the secondary GPS15 (B) at a height above the primary GPS15 (A) so that each GPS15 set works independently of each other, and the sensors do not align with the other reflector. -
Page 8: Electrical Connection Edrive And Glm
MCB blinks rapidly. WARNING DO NOT CONNECT THE GPS15 to VDC OUT. The GPS15 must be connected to the IR1 or IR2 terminals only of the operator. Connection to a voltage output or incorrect polarity will damage the unit and void warranty. -
Page 9: Electrical Connection Sdrive
INSTALLATION CONTINUED INSTALLATION S-DRIVE Connection The PRIMARY Entrapment Protection Device MUST be installed on the main control board Control Board: CLOSE EYES (Infrared Safety Beams) The CLOSE EYES/INTERRUPT input is for Photoelectric sensor entrapment protection in the CLOSING direction. When an obstruction is detected during closing, the door will stop and open to the fully open position. -
Page 10: Electrical Connection Lsdrive
Entrapment Protection devices to operate. WARNING Only one set of GPS15’s can be installed. If two sets of safety beams are required, then install GPS772’s or 774ANZ’s WARNING Only LS-Drives manufactured after 1-1-2019 are compatible with Grifco GPS15 Entrapment Protection System. -
Page 11: Electrical Connection Lrdrive
Remove power for three seconds. Repeat three times, leaving power on the third time WARNING Only one set of GPS15’s can be installed. If two sets of safety beams are required, then install GPS772’s or 774ANZ’s... -
Page 12: Electrical Connection Merlin Mr655Myq/Mr855Myq
Remove power for three seconds. Repeat three times, leaving power on the third time WARNING Only one set of GPS15’s can be installed. If two sets of safety beams are required, then install GPS772’s or 774ANZ’s... -
Page 13: Electrical Connection Merlin Ms65Myq/Ms105Myq/Ms125Myq
Remove power for three seconds. Repeat three times, leaving power on the third time. WARNING Only one set of GPS15’s can be installed. If two sets of safety beams are required, then install GPS772’s or 774ANZ’s... -
Page 14: Electrical Connection Merlin Mj3800Myq
Remove power for three seconds. Repeat three times, leaving power on the third time. WARNING Only one set of GPS15’s can be installed. If two sets of safety beams are required, then install GPS772’s or 774ANZ’s... -
Page 15: Alignment
Introduce an obstruction into the path of the photoelectric sensor and the door should stop and reverse. OPERATION Interruption of a GPS15 will prevent Grifco operators from completing a close cycle. Note: For S-Drive, both the Open and Close cycles will be stopped, depending on configuration. -
Page 16: Troubleshooting Edrive And Glm
TROUBLESHOOTING TROUBLESHOOTING EDRIVE AND GLM ALIGNMENT Status Indicator (Green) Flash / Problem Table No. flashes/ Meaning Possible Causes Possible Solutions Problem Meaning Motor running Infrared beam and/or Bump IR beam obstructed • Clear obstruction edge obstruction N/C beam Bumper edge pressed •... -
Page 17: Frequently Asked Questions Edrive And Glm
FREQUENTLY ASKED QUESTIONS FAQ’S AND SOLUTIONS EDRIVE MCB Power must be turned OFF before servicing or adjusting the operator! 1. No indicator lights on wall control: • Are there any indicator lights ON the MCB (Main Control Board)? YES... Check connection between MCB and wall control Check for damage to control cable NO... -
Page 18: Troubleshooting S-Drive
TROUBLESHOOTING TROUBLESHOOTING S-DRIVE See S-Drive manual on how to view error codes. Code Meaning Solution Saved Minimum number of Monitored Entrapment Devices Review Monitored Entrapment Protection device connections (one) not installed CLOSE EYE/INTERUPT held more than 3 minutes Check wired input on main control board Check for alignment or obstruction CLOSE EYE/EDGE held more than 3 minutes OPEN EYE EDGE held more than 3 minutes... -
Page 19: Troubleshooting L Series/Merlin
TROUBLESHOOTING TROUBLESHOOTING GRIFCO L SERIES/MERLIN Your garage door is programmed with Self Diagnostic capabilities. operator The UP and Down Arrows (LS-Drive, MS65MYQ, MS105MYQ, MS125MYQ, MJ3800MYQ) on the control panel will flash the diagnostic codes The LEDs 1 & 3 (LR-Drive, MR655MYQ, MR855MYQ) on the control panel will flash the diagnostic code... -
Page 20: Chamberlain Limited Warranty
Chamberlain’s warranty Chamberlain warrants to the original purchaser of the Grifco product (Unit) that: The Commercial Door Operator found in this book is free from defects in materials and workmanship for a period of 24 months from the date of purchase or, when a particular operator states a cycle-count warranty, that cycle-count is reached (whichever comes first).
