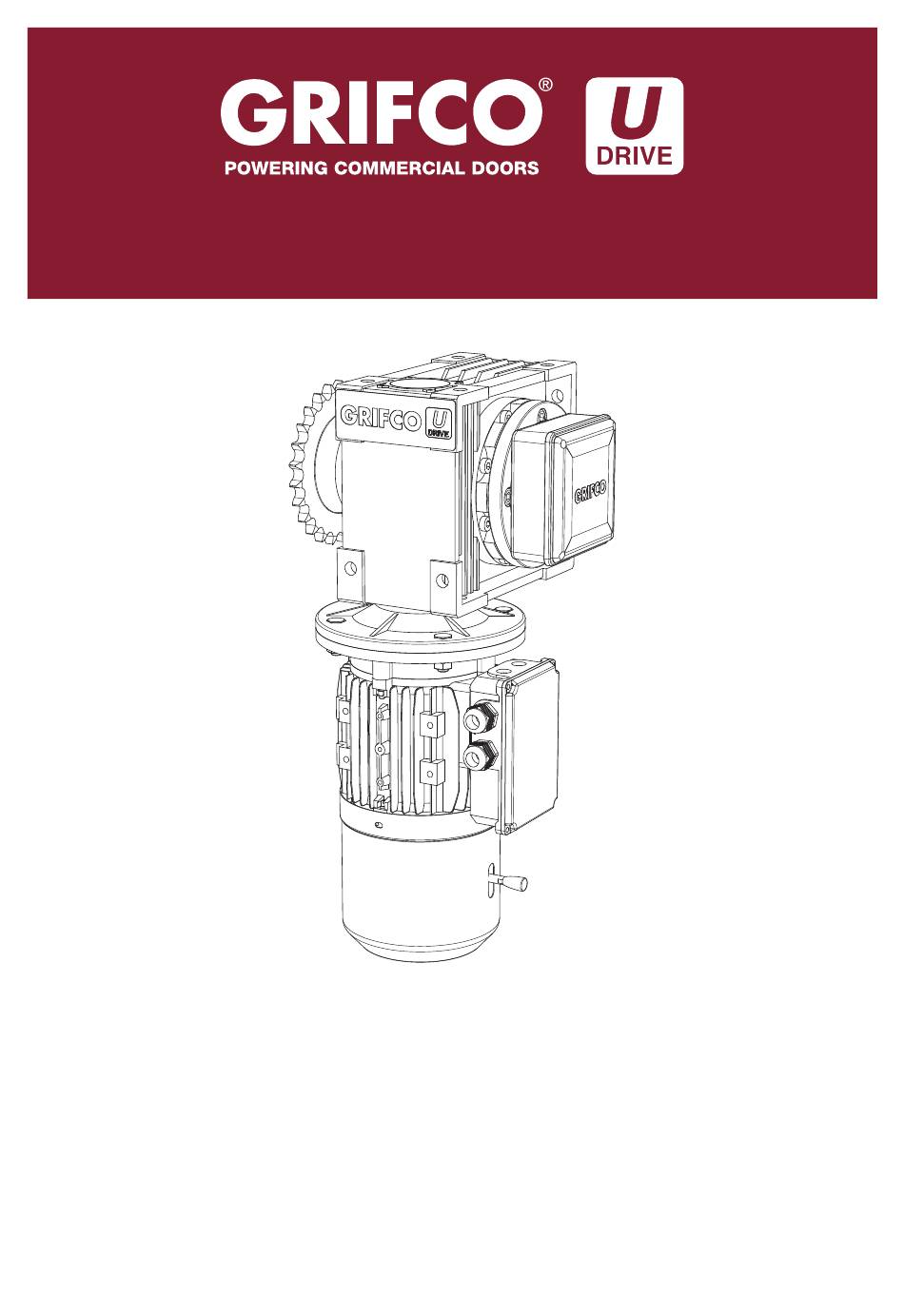

INSTRUCTION MANUAL
THIS OPERATOR IS TO BE INSTALLED AND SERVICED BY A TRAINED TECHNICIAN ONLY
Chamberlain Australia Pty Ltd
PO Box 1446, Lane Cove
NSW 1595, Australia
Phone toll free 1800 474 326
D-M-RSO-040A 06/11/18
Operator for Non Spring-Balanced
Roller Shutters
Compatible with GLMe2 eDrive +2.0 Wall Control
Chamberlain New Zealand Ltd
PO Box 100-221
North Shore 0745, New Zealand
Phone toll free 0800 653 667
U-Drive
www.grifco.com.au
www.grifco.co.nz

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the U-Drive GUDK-RSO-H053M and is the answer not in the manual?

Questions and answers

Summary of Contents for Grifco U-Drive GUDK-RSO-H053M

  • Page 1 Operator for Non Spring-Balanced Roller Shutters THIS OPERATOR IS TO BE INSTALLED AND SERVICED BY A TRAINED TECHNICIAN ONLY Compatible with GLMe2 eDrive +2.0 Wall Control www.grifco.com.au Chamberlain Australia Pty Ltd Chamberlain New Zealand Ltd PO Box 1446, Lane Cove...
  • Page 2: Safety Instructions

    Drop device to catch the door in the event a a failure of door is visible during operation . Do not allow children to the drive system., such as the GRIFCO GSB-600. operate push button(s) or remote control(s). Serious personal...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS SAFETY INSTRUCTIONS ..................... 2 TYPICAL INSTALLATION ..................... 4 SPECIFICATIONS ..................... 5-9 Specifications Table ........................5 Dimensions ...........................6 Contents ............................7 Selection Guide ........................8-9 INSTALLATION ..................... 10-17 Install Wall Brackets ........................10 Install Door Drum ........................10 Install Flange Bearing ........................10 Install Safety Brake Angle ......................11 Install Safety Brake ........................11 Select Mounting Configuration ....................12...
  • Page 4: Typical Installation

    TYPICAL INSTALLATION INSTALLATION OF GUDK-RSO-H073M SHOWN...
  • Page 5: Specifications

    SPECIFICATIONS GUD-H053M GUD-H073M GUD-MK-05 GUD-MK-07 Peak Opener Torque 180 Nm 260 Nm Peak Drum Torque 600 Nm 600 Nm Max Bracket capacity (Pair) 574 kg 800 Kg Power 0.5 Hp 0.75 Hp Full Load Current 1.8 A Volts (AC) 415 V 415V Phase Max safety brake speed...
  • Page 6: Dimensions

    SPECIFICATIONS GUD-H053M / GUD-H073M 292 MAX 180 MIN GUD-MK-05 GUD-MK-07 292 MAX 236 MAX 180 MIN 180 MIN GSB-600 FLANGE BEARING 236 MAX 180 MIN...
  • Page 7: Contents

    SPECIFICATIONS CONTENTS GUDK-RSO-H053M - COMPLETE CONTENTS GUD-H053M A. Motor and gearbox assy with limits and output shaft B. 25T sprocket C. Operator mounting plate D. Drive chain 12B (Not shown) E. Operator fastener kit (Not shown) F. Manual (Not shown) GUD-MK-05 A.
  • Page 8: Selection Guide

    SELECTION GUIDE 60% DUTY  60% DUTY GUD-H053M GUD-H073M GUD-MK-05 GUD-MK-07 Drum Diameter 168 mm 168 mm Curtain Mass 14 kg/m2 14 kg/m2 Max System Mass 574 KG 800 KG Max Door Size 20 m2 24 m2 Max Torque 180 Nm 220 Nm Max Cycle Time Door Height (Drum Axis to Floor)
  • Page 9: Selection Guide

    SELECTION GUIDE 10% DUTY 10% DUTY GUD-H053M GUD-H073M GUD-MK-05 GUD-MK-07 Drum Diameter 168 mm 168 mm Curtain Mass 14 kg/m2 14 kg/m2 Max System Mass 574 KG 800 KG Max Door Size 24 m2 34 m2 Max Torque 180 Nm 260 Nm Max Cycle Time 120s...
  • Page 10: Installation

    INSTALLATION STEP 1 INSTALL WALL BRACKETS Install wall Angle, or Wall Brackets, depending on the system. GUD-MK-05: 1. Mount Wall Brackets to building using the 3 slots provided 2. Install both sides at the same height. GUD-MK-07: 1. Mount wall Angle to building using the 4 slots provided, for flexibility of install the angle can be mounted with the slots towards or away from the opening.
  • Page 11: Install Safety Brake Angle

    INSTALLATION STEP 4 INSTALL SAFETY BRAKE ANGLE Fit the safety brake angle using M16 fasteners supplied (Torque 190Nm—210Nm) STEP 5 INSTALL SAFETY BRAKE 1. Insert 12mm x 8mm x 80mm Key and slide safety brake over shaft. 2. Install M10x40 Fasteners and tighten (Torque 40Nm—44Nm) 3.
  • Page 12: Select Mounting Configuration

    INSTALLATION STEP 6A SELECT MOUNTING CONFIGURATION U-Drive’s innovative mounting system allows for various operator mounting positions to best suit the application. This is enabled by the various Operator Mounting mounting configurations and operator mounting Plate Positions position. LEFT HAND CONFIGURATION RIGHT HAND CONFIGURATION BELOW, VERTICAL BELOW,...
  • Page 13: Select In-Board Or Out-Board Mounting Configuration

    83 GUD-MK-05 220 GUD-H053M 120 GUD-MK-07 230 GUD-H073M INSTALLATION STEP 6B SELECT IN-BOARD OR OUT-BOARD MOUNTING CONFIGURATION The operator can be mounted either inside or outside the door bracket. Consideration should be given to side room clearance requirements. OUT-BOARD MOUNTING IN-BOARD MOUNTING GUD-H053M &...
  • Page 14: Mount Operator To Wall Bracket

    INSTALLATION STEP 8 MOUNT OPERATOR TO WALL BRACKET The operator is approx. 30Kg so care should be taken when handling. Lifting Options: 1. The Operator may be lifted with a soft sling around the motor/gearbox interface 2. Use an Eye-Bolt and nut (not supplied) through one of the gearbox mounting holes (caution - certain positions may cause unbalanced load)
  • Page 15: Install Drive Chain

    INSTALLATION STEP 9 Ensure alignment INSTALL DRIVE CHAIN Install the chain ensuring the tension is correct and align the 25T sprocket with the drum sprocket. NOTE: Ensure that all moving parts are adequately guarded to prevent injury. MECHANICAL INSTALLATION COMPLETE Mechanical install is now complete! The curtain, rails and any other items specific to the door can now be installed.
  • Page 16: Electrical Installation

    ELECTRICAL INSTALLATION THE MOTOR, LIMITS AND SAFETY BRAKE MUST: • be connected via an approved electrical isolation device • be connected via a suitable circuit breaker that disconnects all live conductors • be connected in accordance with the wiring rules of the country in which it is installed •...
  • Page 17 ELECTRICAL INSTALLATION SAFETY BRAKE CONNECTION WHEN USING GLMe2 SERIES LOGIC WALL CONTROLLERS FOR MECHANICAL LIMIT OPERATORS SAFETY Connect the safety brake limit switch to the BRAKE common lead between the limit switches. This will SWITCH ensure that in event of an activation of the safety COM LINK brake, the power supply to motor will be cut and no movement will occur until the safety brake is...
  • Page 18: Commissioning

    To ensure the installation meets these requirements refer to AS/NZS 60335-2-103. When using the Grifco® Protector System as part of the Entrapment Protection System, ensure it is installed to detect a 100mm high obstacle, ie; approx 80mm from the floor, and in accordance with installation directions supplied.
  • Page 19: Manual Setting Of Door Position

    COMMISSIONING MANUAL SETTING OF DOOR POSITION The system can be manually operated for the purpose of setting limits or during the installation before power is connected. This may also be used as a service method provided the system is electrically disconnected and isolated.
  • Page 20: Maintenance

    TROUBLESHOOTING TROUBLESHOOTING WHEN USING GLMe2 LOGIC CONTROLS STATUS INDICATOR (GREEN) FLASH / PROBLEM TAB No. Flashes / Meaning Possible Causes Possible Solutions Problem Solid ON Motor running Infrared beam and/or IR beam obstructed • Clear obstruction Bump edge obstruction Bumper edge pressed •...
  • Page 21 MCB (Main Control Board) must be Check for control circuit isolating reset. Call Chamberlain switch or connection between MCB (1800 GRIFCO) for resetting procedure and controller Check for damage to control cable Make sure key is in correct position 3. POWER LIGHT ILLUMINATED ON 6.
  • Page 22 MAINTENANCE Frequently examine the installation for signs of CHECK DOOR CYCLE COUNT wear or damage. Do not use if repair or Door cycle count can only be checked if the adjustment is necessary. Power must be turned GLMe2L Logic Controller is installed. Limits must off before servicing, cleaning or adjusting the be set.
  • Page 24: Chamberlain Limited Warranty

    Chamberlain’s U-Drive Warranty problems caused by electrical faults. Chamberlain warrants to the original purchaser of the Grifco U-Drive If this Chamberlain Limited Warranty does not apply, you may have product (Operator) that: rights available to you under the Australian Consumer Law.
