Summary of Contents for ZIEHL-ABEGG Fcontrol FTET4AHMQ-L

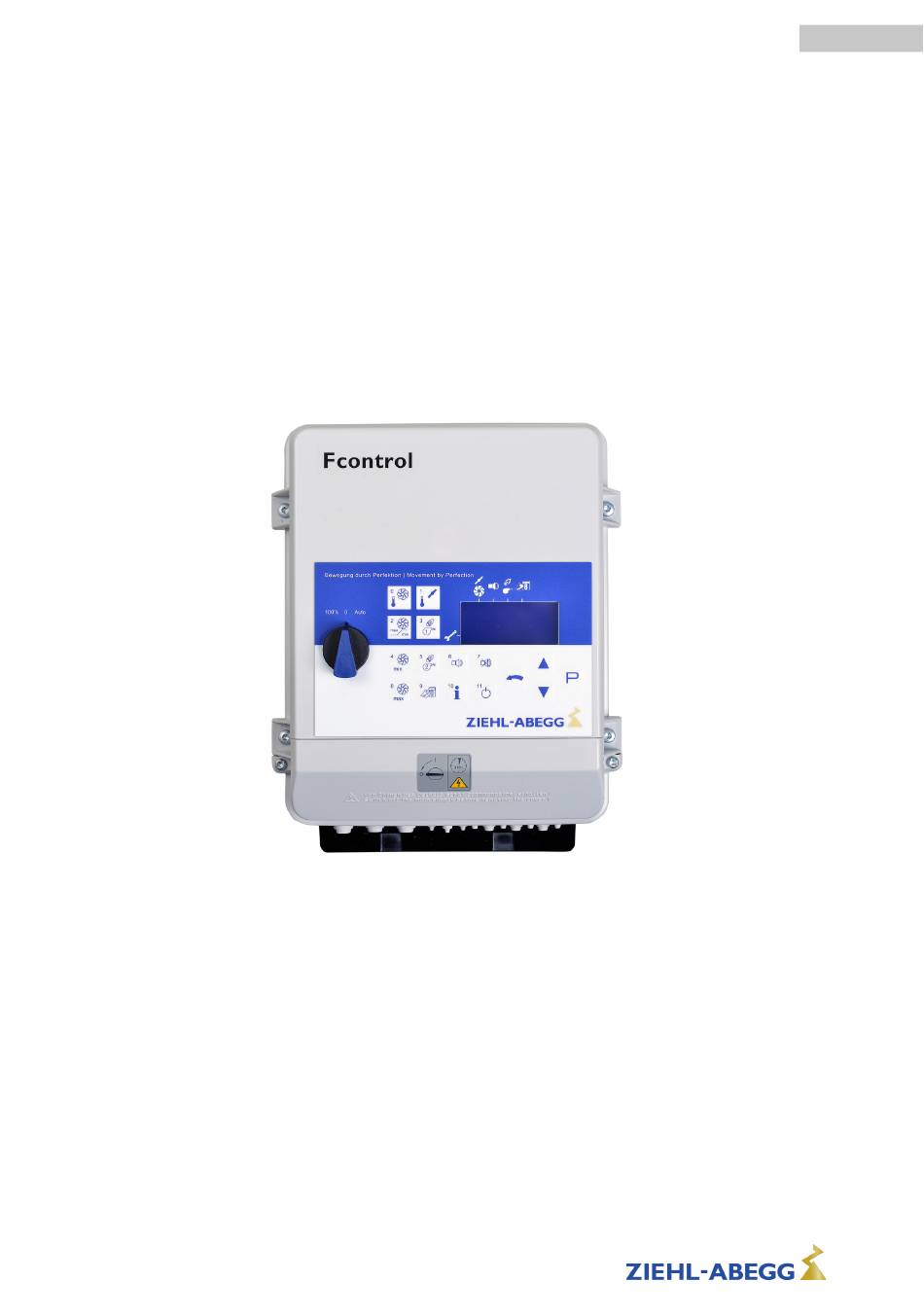

Page 1
english Fcontrol FTET4/6/10AHMQ-L Ventilation computer with frequency inverter for 1 ~ fans in agriculture Operating Instructions Keep for reference! Software version: D2512A from Version 02.00 L-BAL-E139-GB 2022/03 Index 006 Part.-No.
We do not accept any liability for possible errors or omissions in the information contained in data, illustrations or drawings provided. ZIEHL-ABEGG SE is not liable for damage due to misuse, incorrect use, improper use or as a consequence of unauthorized repairs or modifications.
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L Safety instructions Explanations of symbols Safety instructions are highlighted with warning triangles and are depicted according to the degree of hazard as follows. Attention! General hazardous area. Death or severe injury or significant property damage can occur if the corresponding precautions are not taken! Danger due to electric current Danger by dangerous, electric voltage! Death or severe injury can occur if the corresponding...
Use only genuine spare parts / genuine wearing parts / genuine accessories from ZIEHL-ABEGG.Th- ese parts were specifically designed for the device. There is no guarantee that parts from non-original sources are designed and manufactured in correspondence with load and safety requirements.
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L Product overview Employment of external personnel Maintenance and service work are frequently carried out by external employees who often do not recognize the specific situations and the thus resulting dangers.These persons must be comprehen- sively informed about the hazards in their area of activity.
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L Mounting 4 Mounting General notes Attention! The following points must be complied with during the mechanical installation to avoid causing a defect in the device due to assembly errors or environmental influences: • Before installation remove the device from the packing and check for any possible shipping damage! Start-up is not allowed in the case of transport damage! •...
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L Electrical installation Temperature influences during commissioning Avoid condensation in the controller and functional faults attributable to condensation by storing the controller at room temperature! 5 Electrical installation Safety precautions Danger due to electric current •...
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L Electrical installation Mains connection 5.3.1 Mains voltage The mains connection is made at the terminals: PE, L1 and N. In this regard, it is essential to ensure that the mains voltage lies within the allowable tolerance specifications (see technical data and rating plate affixed to the side).
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L Electrical installation Information • It is recommended that a separate motor protection unit be foreseen for each fan. • For motors with thermistors “TB” e.g. type S-ET10. 5.5.2 Disconnection between controller and motor (repair switch) Ideally, a repair switch should be installed before the controller (supply line disconnect).
Attention! • For a high interference immunity a capacitor must be connected directly to the sensor (1nF parallel). With ZIEHL-ABEGG temperature sensors type TF.. (KTY81-210) a capacitor is integrated. • Never apply line voltage to analog inputs! Control output 0 - 10 V (A1, A2, A3)
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L Electrical installation 21, 24, 22 K2 function: = Heating 1 K2 Invert: OFF 31, 34, 32 K3 Function: = Peak load ON/OFF K3 Invert: OFF Terminals “31” and “32” can be used to switch on the second fan. Activation must be performed in “Installation”...
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L Electrical installation Information • Pay attention to sufficient distance from powerlines and motor wires (min. 20 cm). • Except the data link "A (D+)", "B (D-)" and "GND"- connection may no further cable cores of the data line be used.
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L Controls and Menu 6 Controls and Menu switches Power stack (fan) is switched off Auto Power stack in operation (standard position) 100 % Ventilators are operated directly from the mains with no control. Motor protection by thermostat connection input “TB”...
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L Controls and Menu Multipurpose LC display The following display appears after switching on (Reset) or after approx. 15 minutes without pressing a key. This display shows a list of the most important values and statuses of the control functions and is the starting point (Start) for the operation.
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L Controls and Menu Direct selection keys The device is equipped with direct selection keys for simple operation. In addition to the menu-guided operation with the four keys (ESC, ▲, ▼and P) some settings can be selected directly with the symbol keys 0 -11.
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L Controls and Menu Menu operation The menu group is selected starting from the Overview display Overview display. To the right with the UP key ▲ ▲ ▲, to the left with the DOWN key ▼. ▼...
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L The Installation menu 7 The Installation menu Installation Entry Attention! The settings in the installation menu are priority basic settings that must be made during start-up operation. Make these settings only if you have an exact understanding of the device functions and system functions.
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L The Installation menu Installation Ventilation ↑ ↓ ◄ Ventilation 7.2.1 Exhaustair rate Exhaustair rate Percentage share of the stall in the total exhaust air system. In central exhaust air systems the total exhaust air is determined from the sum of the Exhaustair rate exhaust air percentages of all stalls.
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L The Installation menu 7.2.3 Peak load fans The exhaust air is controlled by the fan speed control. Another fan (peak load) can be activated additionally in appropriately large stalls. Peak load On Setting range: 10 - 100 % Factory setting: 50 % Peak load On Peak load min.
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L The Installation menu 7.2.3.2 Variant of peak load 2 and 3 Control peak load via 0 – 10 V Example: Connection Max. load over output 1 (0 - 10 V) Variant 2 A regulated fan and a regulated peak load fan with differ- PTE-6/10AHQ(X)-L PKE..
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L The Installation menu Connection humidity / temperature sensor type MFTG-100V Art. No. 384046 Including temperature sensor (replaces a TFR) Installation Shutter ↑ ↓ ◄ Shutter Shutter input 0 = Sensor on E1 = Control via offset to setpoint ventilation (factory setting) 1 = Sensor on E2 = Control independent from the ventilation nominal value Shutter input 2 = Sensor value via bus from master independently of ventilation setpoint...
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L The Installation menu Installation Heating 1 ↑ ↓ ◄ Heating1 H1 Mode OFF = Heating not active 1 = Heating works as a two-point controller via relay (factory setting) H1 Mode 2 = Heating works as a proportional controller (0 - 10 V) H1 Input 0 = Sensor on E1 = Control via offset to setpoint ventilation (factory setting) 1 = Sensor on E2 = Control independent from the ventilation nominal value...
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L The Installation menu 7.5.1 Special function for “piglet nest warm water heating” This function regulates the start-up temperature for a hot water heating plate to exactly the desired setpoint. Tips: The function is part of heating circuit 2 of the device. For this function “H2 Mode”...
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L The Installation menu Example with valve in the lead, other arrangements possible CTE / FTET / PTE..-L 0 -10V 0 - 10V 24.08.2011 v_ferkln_warmwa_hzng.VSD RL Return VL Flow MV One or three-way valve (0 - 10 V) TFA Application sensor for water temperature (measured after valve) FH Piglet nest heating TFR Room temperature sensor in stall...
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L The Installation menu Minimum extra While the set point is increased, an (adjustable) tolerance is added to the ventilation minimum (normal). Minimum extra As long as the compartment temperature is greater than the increased set point, this results in a higher ventilation minimum (summer minimum).
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L The Installation menu Installation Heatexchange ↑ ↓ ◄ Heatexchange Heatexchange Mode The heat exchanger function is switched = OFF at the factory. The heat exchanger mode must be set to to activate the heat exchanger WT Mode operation: : for reference to central exhaust air total (via bus)
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L The Installation menu Kanal duct Bypassklappe Abluft bypass shutter exhaust air Zentral Zuluft central supply air Außenluft external air Zuluftklappe Supply air shutter 18.09.2008 v_waertau_cte_pte_x.VSD 1 Exhaust air 2 Ambient air 3 Freshairshutter 4 Central supply air 5 Bypass shutter 6 Channel...
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L The Installation menu 7.10 Installation Exhaust system ↑ ↓ ◄ Exhaust system Settings in the exhaust air system are necessary in single exhaust air systems with more than one additional group (peak load function is not enough) or in central exhaust air systems. The total exhaust air is regulated by one or more 1~ fans or ETAvent fans.
Page 32
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L The Installation menu On group2 Switch-on value for Group2 Setting range: 0 - 100 % On group2 Factory setting: 50 % Minimum2 Minimum Value for Group2 Setting range: 0 - 100 % Minimum2 Factory setting: 30 % Off group3 Switch-off value for Group3...
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L The Installation menu Summer Pband Adjustment range: 1.0 - 70.0 K Factory setting: 5.0 K Summer Pband 7.10.1 Group control variants The fan groups 2 to 5 (maximum) can be distributed to the free relays of all existing devices in the system (the free group relays of the devices should be used preferably for groups 2 to 5).
Page 34
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L The Installation menu Variant 3: Two regulated groups with different amounts of air This variant provides for an increase in speed of group 100% 1 (on the regulator) up to a percentage (switch-on OFF G2: 45 % point) of the control range.
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L The Installation menu Variant 2: one controlled and three not controlled groups ON G4: OFF G4: 80 % 75 % ON G3: 60 % ON G2: OFF G3: 50 % 55 % OFF G2: 45 % G3 Min: 30% G2 Min: 0%...
Page 36
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L The Installation menu Group2(8) Setting range Address: OFF-1...31 (Factory setting: OFF) Setting range Function: K1 - K2 - K3 - PWM * - A1 - A2 - A3 Group2(8) Group3(9) Setting range Address: OFF-1...31 (Factory setting: OFF) Setting range Function: K1 - K2 - K3 - PWM - A1 - A2 - A3 - Gruppe3 (9) Group4(10)
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L The Installation menu 7.11.1 Setting of Bus addresses The addresses of the individual devices must start with “1” (= master device) and be numbered consecutively. It is recommendable to number them according to the stalls. A maximum of 32 network users can be connected to each other.
Page 38
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L The Installation menu K2 Invert. Inversion of the relay function with pre-programmed function code for heater: = (factory setting) relay “K2” attracts so that the heating is active (i.e. terminals K2 Invert. 21 - 24 bridged). = Relay “K2”...
Page 39
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L The Installation menu A2 Antiblock The automatic anti block protection is switched = To activate the anti block protection, switch to A2 Antiblock The settings for this function are made in the following menu items “FSS Interval” and “FSS Runtime”.
Page 40
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L The Installation menu Output curve P1 Output curve P2 Output curve P3 Output curve P4 Output curve P5 (18°) (36°) (54°) (72°) (90°) 04.08.2008 v_kennl_anlaog_ausg_6pkt.vsd D1 Function D1 function determines the function of the digital switching input = none Function (factory setting) D1 Function = Fault indication e.g.
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L The Installation menu 7.12.1 Factory setting allocations / possible allocations Every input or output of the device can be assigned to any (suitable) control function. The following assignments Codes are pre-programmed at the factory: Relays 1 (Terminals 11 - 14 - 12) Fault Code...
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L The Installation menu 7.13 Installation Diverse ↑ ↓ ◄ Diverse 7.13.1 Displaymode Displaymode Definition of the additional value in the standard display (right field xx_ _:) Displaymode S:20.0° xx:_ _ : right digit not assigned : SH = modulation shutter (throttle shutter) factory setting : HE = modulation heat exchanger (0 % = Bypass shutter completely open, 100 % = Bypass shutter closed)
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L The Installation menu heating in stall washing operation Washing Temperature The heating setpoint of the stall is set to 15.0 °C in wash mode at the factory. This value becomes active when the device is in the wash mode. Wash setpoint setting range: 0.0..70.0 °C Factory setting: 15.0 °C...
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L The Installation menu (GND) (GND) 11.08.2011 v_ext_schaltererw_ftet_l.vsd The switch with the switching contacts “S1-S2-S3” and diodes (e.g. 1N4148, 1N4402) optional for activation of the operating mode “Stall Wash”. 7.13.5 Set protection = PIN Lock PIN Lock The “PIN Lock”...
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L The Installation menu 7.13.7 Temperature monitoring by distance alarms (relative to nominal value) The temperature can be monitored to absolute values or alternatively to relative values in relation to the currently active nominal value (distance alarm). Distance alarm OFF = temperature monitoring to absolute values (at factory) Distance alarm...
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L The Installation menu 7.14.2 Configuration 1. Step: D1 configure function D1 Function (Menu: Installation -> IO Setup -> D1 Function) Setting: D1 Function Info: Configuration for speed measurement (pulse evaluation), menu group Measuring fan is released.
Page 47
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L The Installation menu 4. Step: Measuring fan properties Pulse per 1/min Menu: Installation -> Measuring fan -> pulse per 1/min Setting: Number of pulse per 1 rotation e.g. 4 Pulse per 1/min Info: Depending on the measuring fan type, see measuring fan data reference Speed Setting: Speed specification for a volume flow of the measuring fan Info: Depending on the measuring fan type, see measuring fan data...
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L The Installation menu 7.15 Installation Motorsetup 7.15.1 Menu “Motorsetup ” Menu group Motor Setup Motor Setup Attention! Settings for U/f characteristic may only be made when no motor modulation is present! Parameter Factory setting User Setting MotorRatedCurr.
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L The Installation menu 7.15.3 Setting motor rated voltage MotorRatedVolt. When commissioning, you must set the motor to the rated voltage stated on the rating plate. MotorRatedVolt. Caution! Make settings for U/f curve and motor rated voltage only while the motor is not being triggered.
Page 50
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L The Installation menu Uout Ustart [Hz] Fedge 16.05.2007 Foff v_u_f_kennlinie.vsd Fmax Uout Output voltage Ustart Startvoltage Foff Shutdown Freq. Fedge Edgefrequency Fmax Maximum frequency L linear Q Square (factory setting) Startvoltage The start voltage is used to apply enough torque to the motors to insure they will run at low speed.
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L The Installation menu 7.15.5 Setting for Rampup time and Rampdown time By separate menus for Rampup time and Rampdown time an adjustment is possible to individual system conditions. This function is switched behind the actual controller function. Rampup time Time setting in which the automatic controller output from 0 % to 100 % rises.
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L The Installation menu DC brake mode Setting function of DC-brake for frequency inverters. DC brake mode 0 = no brake function. 1 (factory setting) = brakes before start (before modulation is returnd) 2 = Special function, brakes before stop (as soon as modulation “0”). The motor does not run out up to stop.
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L The Installation menu 7.15.9 Suppression of speeds Suppression of up to three speed ranges. Under certain circumstances, it is possible to prevent disturbing noises that can arise at certain speeds due to resonances. Example for suppression of 2 ranges (Idealized principle diagram) 100 % 50 %...
Page 54
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L The Installation menu Max. load Control peak load Max. load Max. load K Control relay of peak load Max. load K Max. load A Control 0 - 10 V of peak load Max. load A Controller3 Control auxiliary regulator (inactive at present) Controller3...
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L Commissioning 8 Commissioning Prerequisites for commissioning Attention! 1. You must mount and connect the device in accordance with the operating instructions. 2. Double check that all connections are correct. 3. The mains voltage must match the information on the rating plate. 4.
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L Settings for operation 9 Settings for operation Menu overview for operation Overview display ▲ ▲ ▲ ▲ ▼ ▼ ▼ ▼ Ventilation Alarm Heating1 Day of program S:20.0° SH:94% ↑ ↑ ↑ ↑ ↑...
Page 57
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L Settings for operation ON: compartment control switched on OFF: compartment control switched off, no fault indications Stall on Stall Pre-heat: The automatic ventilation regulation and the temperature monitoring are switched off. The stall is pre-heated until the value set in the Installation menu under “Diverse”...
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L Settings for operation O = Operation, T = Time, C = Controller The time counting runs, as soon as mains voltage is connected (without fault). If events step on (Motor fault, External Error, etc.), the period of operation is stored at 00056:46:13 this time ( Events).
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L Settings for operation Display as long as no digital input is assigned in IO Setup: - - - - - Example of overview display for currently calculated setpoint The setpoint is set to 20.0°C (see Setpoint menu item). The moon symbol indicates the active “Setpoint 2”.
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L Settings for operation Example: Setpoint ventilation 25.0°C, Offset -5.0 K, Pband 10.0 K K [%] max. min. A [°C] S / V 19.08.2008 v_klappe_pte.vsd K Flap opening in % (without output curve) K max. Shutter Maximal Kmin.
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L Settings for operation setpoint”) (“Setpoint” in the “Ventilation” menu) (e.g. 0.1 K/h). This ensures the ventilation control always works directly at the end of the control range. If the compartment temperature sinks quickly, the ventilation function can react quickly and reduce ventilation. Information Of course, this function can result in a higher set point on warm days.
Page 62
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L Settings for operation RH setpoint Setting range: 0...100 % Factory setting: 75 % RH setpoint Humidity control range Adapting the control action to the system conditions. Narrow control range = Short control times RH pband Wide control range = Longer control times and more stable control Setting range: 0...100 %...
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L Settings for operation Setting temperature monitoring Alarm Whether or not a malfunction is present is shown for informational purposes Alarm • OFF = currently no alarm pending ↑ • ON = Alarm is pending ↓...
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L Settings for operation Alarmdifference Upon activating input 2 ( IO setup “supply air temperature”) the supply air temperature is taken into account for “Alarm Maximum” (can be verified in the “Quick Info menu”): Alarmdifference •...
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L Settings for operation 2. In the menu group overview, “Alarm” “Alarm ON” appears alternately with the pending alarm message. Alarm Overtemp. 3. For Acknowledgement press or “Alarm Off”for a few seconds (in versions with key no. 7). The fault message is switched off by the relay “K1”.
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L Settings for operation Settings for heating Heating1 The device has two heating circuits (H1 and H2) whereby each heating circuit can control either a relay (two-point) or a 0 - 10 V output (linear). “H1” is generally the stall heating and “H2”...
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L Settings for operation Positive hysteresis value = Heating function Negative hysteresis value = Cooling function A [°C] A [°C] S + V S + V 08.08.2008 08.08.2008 v_heiz_pos_hys_rel.vsd v_heiz_neg_hys_rel.vsd H Hysteresis (positive e.g. + 0.5 K) H Hysteresis (negative e.g.
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L Settings for operation 9.5.1.3 Heating H1 via the 0...10 V signal (linear) In Installation menu: “H1 mode” = for proportional controller. The “K2” heating relay is connected in parallel in order to activate, for example, a gas valve. If a proportional regulator (linear 0 - 10 V) is programmed for heating circuit 10 an assigned heating relay switches on parallel to it, e.g.
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L Settings for operation 9.5.2 Settings for heating H2 (factory setting deactivated) Example for linear control (0 - 10 V) for heating 2 (Installation - Heating2 - H2 mode = proportional controller) (Example for piglet nest warm water heating see installation menu heating 2) Heating offset Example for 0...10 V control based on the ventilation setpoint (In installation menu: “H2 input”...
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L Settings for operation Increase program Day of program The current program day and the hour are displayed here additionally for information. Day of program ↑ ↓ 9.6.1 Set the trajectory of the growth curve Actual day Setting the program day Also serves to reset the program to the beginning (day =0) Setting range: 0...360 day...
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L Settings for operation 9.6.2 Curve for Setpoint compartment temperature Setpoint curve Factory setting setpoint curve active = ON, if curve program is switched This curve can be deactivated = OFF if necessary Setpoint curve Increase program Setpoint Setpoint start setting range: 0.0..40.0 °C...
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L Settings for operation 9.6.4 Curve for Maximum Ventilation Maximum curve Factory setting max. curve active = ON, if curve program is switched on. This curve can be deactivated = OFF if necessary Maximum curve Increase program Maximum Max.
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L Menu tables Increase program Heating2 Heating2 start Setting range: [°C] -10.0...+60 °C Start Knickpunkt1 Heating2 start Break-point1 Factory setting: 24.0 °C Heating2knick1 Knickpunkt2 Break-point2 Setting range: Endpunkt Final day -10.0...+60 °C Heating2knick1 Factory setting: 23.0 °C Heating2knick2 Setting range: -10.0...+60 °C...
Page 74
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L Menu tables Parameter Factory set- Cot 1 Cot 2 Cot 3 Cot 4 Cot 5 Information ting Shutter Pband 2.5 K Shutter Min. Shutter max. 100 % Setp. Derating RH setpoint - - - - RH pband - - - - RH minimum...
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L Malfunctions / trouble shooting 10.3 Programmed outputs and inputs of a system Enter the individual settings here for tracing! Function controller Relays Relays Relays U1/U2 A3 GND E3 GND factory setting Fault Max. Heating Ventila- Ventila- Shutter Heat-...
Page 81
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L Malfunctions / trouble shooting Display Cause Reaction of Controller Remedial measures Short-circuit or interruption in the sensor lead to The fault relay “K1”responds. input “E3” Check the sensor lead and connection. (Message Short-circuit E2 actual value = -50.0 °C, interrup- only if activated as the supply air temperature tion: E2 actual value = 149.9 °C sensor or as a separate sensor for heating or...
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L Malfunctions / trouble shooting Display Cause Reaction of Controller Remedial measures Shortcut earth, that means Shortcut between one The unit cuts out and does not switch on again. motor wire and PE Disconnect the device from mains. Check motor wires.
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L Enclosure Output A1 and A2: 0 - 10 V per 6 mA (short-circuit-proof) Output A3: 0 - 10 V per 10 mA (short-circuit-proof) Max. contact rating of the internal relay 2 A / 250 V AC Max.
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L Enclosure 12.4 Application examples 12.4.1 FTET6/10AHMQ-L: Single exhaust system with 1~ fans K 0...10 V K 0...10 V 1~ Asyn 1~ Asyn 0...100 % 0...100 % ON/OFF ZL_TFR ON/OFF FTET6AHMQ-L FTET6AHMQ-L FTET6AHMQ-L ON/OFF S-ET10 1~ Asyn 0...100 %...
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L Enclosure 12.4.2 FTET6/10AHMQ-L: Central exhaust air with activation of group 2 ZL_TFR ON/OFF K 0...10 V K 0...10 V K 0...10 V 1~ Asyn 0...100 % CTE/AH(X)-L CTE/AH(X)-L FTET6AHMQ-L S-ET10 CTE/AH(X)-L CTE/AH(X)-L CTE/AH(X)-L 1~ Asyn ON/OFF K 0...10 V...
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L Enclosure 12.4.3 FTET6/10AHMQ-L and CTE/AHQ(X)-L: with activation of groups for central exhaust air ZL_TFR 1. G 1~ Asyn ON/OFF 0...100 % S-ET10 K 0...10 V K 0...10 V K 0...10 V 2. G 1~ Asyn S-ET10 CTE/AH(X)-L CTE/AH(X)-L...
Page 90
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L Enclosure Address - - - - - - - stands automatically for address 1 of the master Number slaves - - - - Number of connected Slave controllers Group3(9) Controller2 / Connection Group 3 via bus of device 2 relay K3 Group4(10) Controller3 /...
Operating Instructions Fcontrol – model series FTET4/6/10AHMQ-L Enclosure 12.5 Index linear characteristic Stand-Alone lowest temperature start voltage Acknowledgement start-up temperature Address summer minimum alarm list supply air shutter alarm message mains connection Suppression an absolute temperature master 31, 35 Switch mode maximum Max.
Manufacturer reference Our products are manufactured in accordance with the relevant international regulations. If you have any questions concerning the use of our products or plan special uses, please contact: ZIEHL-ABEGG SE Heinz-Ziehl-Straße 74653 Künzelsau phone: +49 (0) 7940 16-0 info@ziehl-abegg.de...
