Vivint KF01 Quick Reference

PR INT INSTRUCTIONS:
REF ERENCE SHEET FOR VS-SKEY2-345, P/N 77-600051-001 REV 1.0 |
INK: BLACK | MATERIAL: 20 LB MEAD BOND | SIZE: 5.50" X 8.50" SCALE 1:1 |
FOLDS: TRI-FOLD VERTICAL, TRI-FOLD HORIZONTAL (TO FIT IN BOX)

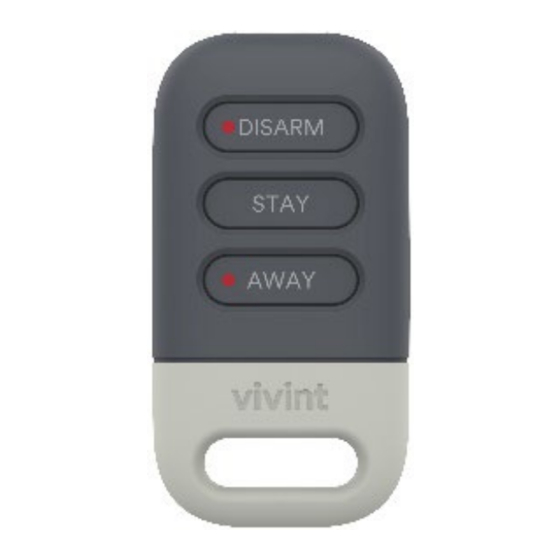

Key Fob
(VS-SKEY2-345)
Quick Reference (User Manual)
The Vivint Key Fob (SKEY2) works with any Vivint Smart Home system, letting users control
their system with the touch of a button. Combining style and convenience, the key fob
allows you to arm (Stay or Away) and disarm your system anywhere within transmission
range of the panel. Users can disarm their system as they pull up to their house or arm it
on their way out the door. A total of 20 key fobs can be added to a system with a
maximum of 4 in Secure Mode (see below).
The SKEY2 also provides added protection by letting you send an encrypted panic signal to
the panel when the first and third buttons are held down.

Programming Instructions

Use these instructions to add an SKEY2 device to the Vivint system and program its operating mode.

OPERATING MODE PROGRAMMING:

When programming an SKEY2 key fob in Secure Mode (IMPORTANT: up to 4 devices can be in Secure Mode), it
must be within 5 feet/1.5 m of the panel and kept there until the LED stops flashing (about 10-15 seconds).
• Open the SKEY2 device, insert the battery, and close the device tightly.
• Within 60 seconds of inserting the battery, press one of the buttons (described below) for 10 seconds.
• Disarm Button (1) — Legacy Mode (the LED blinks once to indicate successful mode selection)
• Stay Button (2) — Legacy Mode + GDR1 (the LED blinks twice to indicate this mode)
• Away Button (3) — Secure Mode (the LED blinks three times to indicate this mode)
Secure Mode should always be used if possible. Once the key fob is programmed in Secure Mode it cannot be
changed to either of the Legacy Modes (1 or 2).
IMPORTANT: If the panel is replaced when a key fob is using Secure Mode,
the device's operating mode must be reprogrammed with the new panel.

Button Functionality

Disarm: Press until the red LED illuminates to disarm the system.
Stay: Press until the red LED illuminates to arm in stay mode.
Away: Press until the red LED illuminates to arm in away mode.
Panic (Disarm + Away): Hold down both buttons until the red LED begins
blinking rapidly (for about 4 seconds) to send a panic signal.

Installer / User Test

Test each button's functionality by holding it down separately (for approximately 2 seconds) until the red LED
flashes. (IMPORTANT: If the panel is NOT in Test Mode, the signals will activate the actual designated event.)

Technical / Hardware Specifications

Vivint Part Number (P/N) V-SKEY2-345
Model Number (M/N)
Wireless Signal Range
Battery
Battery Life
Transmitter Frequency
Code Outputs
Supervisory Interval
Operating Temperature.
Limits
Relative Humidity
Standards Certifications & Listings
UL 1023
KF01
CAN/ULC-S304 Standard for Control Units,
300 ft. (91.4 m), open air
Panasonic CR2032 or
equivalent lithium battery
FCC ID:
3-5 years (normal usage)
IC:
345 MHz
Arm Away, Arm Stay,
Disarm, Panic, Auxiliary
*For complete regulatory compliance
Not applicable
information, go to: vivint.com/fcc.
32° to 120°F (0° to 49°C)
5-95% Non-Condensing
4931 N 300 W Provo, UT 84604
Standard for Household Burglar-
Alarm System Units
Accessories and Receiving Equipment
for Intrusion Alarm System
2AAAS-KF01
10941A-KF01
