OPERATION
OPERATION
M A N U A L
M A N U A L
PA Amplifier + Digital Player
80W RMS / 90W Max.
MMC
USB
CARD
CARD
REMOTE
PLAYER
READER
READER
READER
CONTROL
MODEL No.
RSA-80DP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RSA-80DP and is the answer not in the manual?

Questions and answers

Related Manuals for Roxy RSA-80DP

Summary of Contents for Roxy RSA-80DP

  • Page 1 OPERATION OPERATION M A N U A L M A N U A L PA Amplifier + Digital Player 80W RMS / 90W Max. CARD CARD REMOTE PLAYER READER READER READER CONTROL MODEL No. RSA-80DP...

  • Page 2: Safety Instructions

    SAFETY INSTRUCTIONS...

  • Page 3: Features Of Product

    RSA-80DP is a 80W power output Amplifier with 5-MIC & 1-AUX inputs with a built-in MP3 Digital Player. • RSA-80DP has a line output for connecting to a Booster Amplifier and Pre-Amplifier output for recording purpose. • 5-LED array display is provided to track speaker output level.

  • Page 4: Front Panel Controls & Features

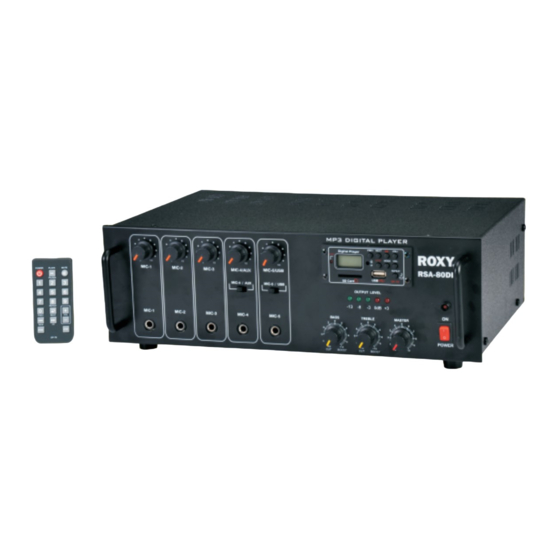

    FRONT PANEL CONTROLS & FEATURES MP3 DIGITAL PLAYER RSA-80DP MIC-5/USB MIC-1 MIC-2 MIC-3 MIC-4/AUX MIC-4 / AUX MIC-5 / USB OUTPUT LEVEL -3 0dB +3 BASS TREBLE MASTER MIC-1 MIC-2 MIC-3 MIC-4 MIC-5 POWER BOOST BOOST MIC-1 INPUT JACK SOCKET 11.

  • Page 5: Rear Panel Controls & Features

    CAUTION NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL ONLY. THIS EQUIPMENT MUST BE RSA-80DP EARTHED. DISCONNECT POWER SUPPLY CORD BEFORE CHANGING FUSE OR REMOVING COVER. TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.
  • Page 6 MP3 DIGITAL PLAYER: CONTROLS & FEATURES POWER PLAY MUTE PAUSE PREV NEXT VOL + DIGITAL PLAYER STOP MODE VOL - REPEAT REPEAT PREV NEXT SD CARD DP-79 MODE STOP DP-79 -: MP3 DIGITAL PLAYER :- PREV: Press PREV to Select the previous track. Pressing PREV repeatedly will move the system to A.
  • Page 7 NOTES:...

  • Page 8: Specifications

    SPECIFICATIONS Model No. RSA-80DP POWER REQUIREMENT AC: 220-240V 50/60Hz, DC: 12V Car Battery R.M.S POWER OUTPUT: MAXIMUM 92 Watts At 10% THD 82 Watts At 5% THD 75 Watts At 2% THD 65 Watts INPUT CHANNELS 5 x Mic 0.65mV/ 4.7K? ,...
