Roxy RSA-45M Operation Manual

SPECIFICATIONS
Model No. RSA-45M/ RSA-45DP
POWER REQUIREMENT AC: 220-240V 50/60Hz,
DC: 12V Car Battery
R.M.S POWER OUTPUT:
MAXIMUM 50 Watts
At 10% THD 33 Watts
At 5% THD 30 Watts
INPUT CHANNELS 3 x Mic 0.5mV/ 4.7K? ,
2-AUX:
AUX-1 50mV/470K? ,
AUX-2 150mV/470K? ,
DIGITAL PLAYER* MP3 Player with USB, SD, MMC Card Reader,
Bluetooth, FM & Remote Control
FREQUENCY RESPONSE 100Hz-13KHz ± 3dB
TONE CONTROLS BASS: ±10dB at 100Hz (Cut-Boost Type)
TREBLE: ±10dB at 10KHz (Cut-Boost Type)
S/N RATIO 60dB
OUTPUT TAPS FOR SPEAKERS 4? , 8? & 16? & 100V Line
PROTECTION 6AC Fuse, AMPLIFIER IS PROTECTED AGAINST
WRONG BATTERY POLARITY
DIMENSION 285W x 280D x 120H mm
WEIGHT 5.100 KG
* Not available in RSA-45M
MADE IN INDIA
• Design and Specifications are subject to change without notice.
• Technical specifications are estimates only 07/19.
www.roxy.in www.roxy.in
www.roxy.in
OPERATION OPERATION
M A N U A L M A N U A L
PA Mixer Amplifier
45W RMS / 50W Max.
MODEL No.
RSA-45M

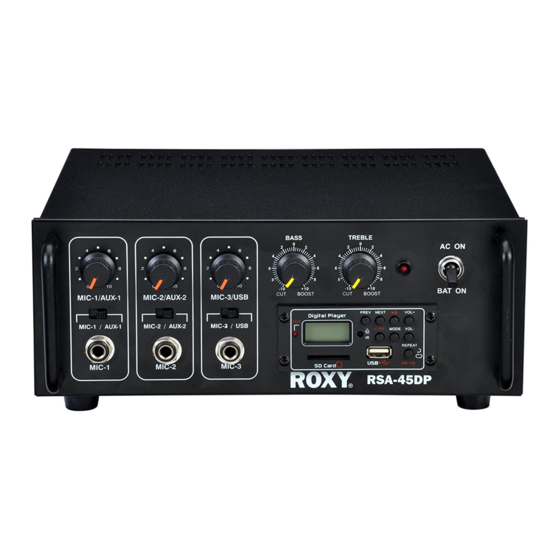

PA Mixer Amplifier + Digital Player
45W RMS / 50W Max.
PLAYER
MODEL No.
facebook.com/roxypasystem
RSA-45DP
twitter.com/roxypasystem
MMC
USB
CARD CARD REMOTE
READER READER READER BLUETOOTH CONTROL
RSA-45M
