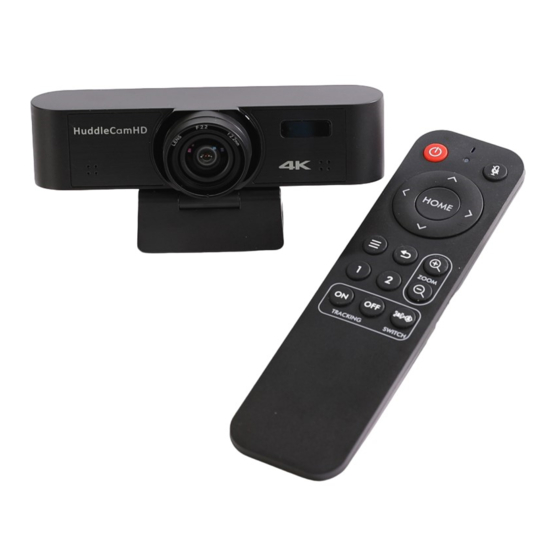

- Page 1 MiniTrack 4K Pro User Manual Model No. HC-MT-4KPRO V1.0 (English) Please check huddlecamhd.com for the most up to date version of this document. Rev 1 6/22...
-
Page 2: Table Of Contents
Table of Contents Preface ............Precautions . -
Page 3: Preface
HD camera. Prior to installation and usage, please read the manual thoroughly. Precautions To avoid any damage to the unit, please take these precautions when using your MiniTrack 4K Pro. • Please read this manual carefully before using the camera. -
Page 4: Warranty
Copyright Notice The entire contents of this manual / guide, whose copyright belongs to HuddleCamHD, may not be cloned, copied, or translated in any way without the explicit permission of the company. The product specifications referred to in this document are for reference only and as such are subject to updating at any time without prior notice. -
Page 5: Connection Guide
Connection Guide When the monitor thickness is less than or equal to 45mm, you can mount the conference camera onto the monitor as shown: Dimensional Drawings (mm) Rev 1 6/22... -
Page 6: Features
• Convenient Operation The MiniTrack 4K Pro features infrared remote control, exclusive control software, one-button automatic frame selection, and auto-tracking to suit any workflow. It allows you to set preset positions, ePTZ, image parameters, and more. -
Page 7: Technical Specifications
Technical Specifications Model HC-MT-4KPRO Type HuddleCamHD MiniTrack 4K Pro Camera & Lens Specifications Sensor 1/2.8” CMOS, 8.29M Effective Pixels Zoom 8X Digital Zoom Field of View Horizontal: 20° (Tele) ~ 108° (Wide), Vertical: 11° (Tele) ~ 68° (Wide), Shutter 1/1 ~ 1/10000 Minimal Illumination 0.5 Lux @ F1.8 (AGC ON) -
Page 8: Ir Remote Control
IR Remote Controller 1. Standby Button Enter / Exit Standby Mode 2. Direction Button Electronic pan / tilt Traverse the on screen display menu. 3. Return Button Return to the previous on screen display menu position 4. Menu Button Open / Close the on screen display menu. 5. -
Page 9: Maintenance And Troubleshooting
Maintenance and Troubleshooting Camera Maintenance • If the camera will not be used for a long time, please disconnect it from the PC. • Use a soft cloth or cotton paper to remove dust from the camera housing. • Use a soft dry lint-free cloth to clean the lens. If the camera is very dirty, clean it with a diluted neutral detergent.
