H
H
SOUTH WALSHAM ROAD, ACLE, NORWICH, NORFOLK, NR13 3ES
TEL: 01493 750072 - FAX: 01493 751854 - www.hughcrane.co.uk
OPERATOR INSTRUCTION MANUAL
For Sales, Service and Spare Parts contact:
TEL: 01493 750072 FAX: 01493 751854 Email:sales@hughcrane.co.uk
U
G
H
U
G
H
Cleaning Equipment Limited
COMMANDO
COMMANDO
COMMANDO
COMMANDO
HUGH CRANE (Cleaning Equipment) Ltd
SOUTH WALSHAM ROAD, ACLE, NORWICH NR13 3ES
C
R
A
N
C
R
A
®
4000
E
N
E
FS0962
FS0962
Advertisement
Table of Contents
Related Manuals for Hugh Crane COMMANDO 4000
Summary of Contents for Hugh Crane COMMANDO 4000
- Page 1 TEL: 01493 750072 - FAX: 01493 751854 - www.hughcrane.co.uk OPERATOR INSTRUCTION MANUAL ® 4000 COMMANDO COMMANDO COMMANDO COMMANDO For Sales, Service and Spare Parts contact: HUGH CRANE (Cleaning Equipment) Ltd SOUTH WALSHAM ROAD, ACLE, NORWICH NR13 3ES TEL: 01493 750072 FAX: 01493 751854 Email:sales@hughcrane.co.uk...
- Page 2 ® HUGH CRANE (Cleaning Equipment) Ltd – COMMANDO 4000 Page 2 IMPORTANT THIS HANDBOOK SHOULD BE READ AND UNDERSTOOD BY THE ® OPERATOR BEFORE USING THE COMMANDO 4000 PRESSURE WASHER AND SHOULD BE KEPT WITH THE EQUIPMENT AND MADE AVAILABLE TO ANYBODY WHO IS INTENDING TO USE OR MAINTAIN IT.
-
Page 3: Unloader Valve

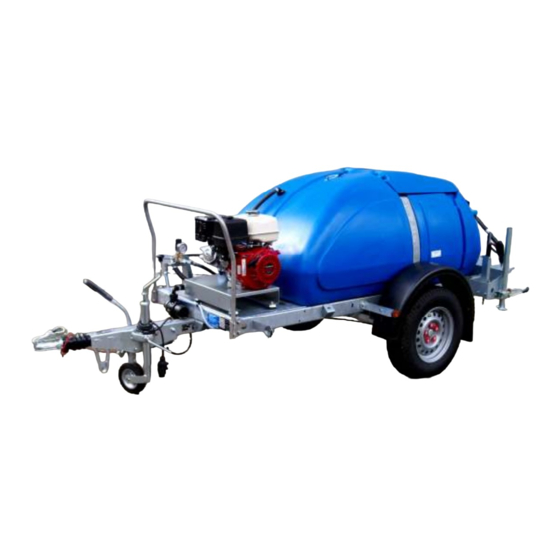

The units are supplied with manual rewind hose reels as standard complete with high- pressure hoses, guns and lances. The COMMANDO 4000 is mounted on a single axle road going trailer with a poly water tank. The COMMANDO 4000 is a versatile machine used in agriculture, hire, construction and civil engineering. - Page 4 ® HUGH CRANE (Cleaning Equipment) Ltd – COMMANDO 4000 Page 4 GENERAL HEALTH & SAFETY DATA RESPONSIBILITIES OF EMPLOYERS: 1. It is the responsibility of all employers and employees to work within the requirements of the Health and Safety at Work Act 1974.
-
Page 5: Operational Procedures
Page 5 BEFORE MOVING ONTO THE PUBLIC HIGHWAY Ensure that towing vehicle is of suitable capacity to tow the COMMANDO 4000. Check tyres for condition and correct inflation pressure. Ensure that ball hitch is fully engaged on towing vehicle and that breakaway cable is securely attached to an anchor point on the vehicle. - Page 6 4000 operators should have undergone basic training in the safe use of high pressure washing equipment. Training courses are available from Hugh Crane (Cleaning Equipment) Ltd. if required. Suitable protective clothing should be provided and worn by all operators. High-pressure jets are dangerous if subjected to misuse.
-
Page 7: Preparing The Machine For Use
® HUGH CRANE (Cleaning Equipment) Ltd – COMMANDO 4000 Page 7 PREPARING THE MACHINE FOR USE: BEFORE TOWING - DAILY Check condition of tyres for sufficient tread depth, cuts, bulges and check inflation pressure. Check wheel nuts for tightness. Check tow coupling for security and remove key from the lock. -
Page 8: Before Starting Work
If the oil is low top up to the correct level through the red filler cap set in the top of the pump (use Hugh Crane Cleaning Equipment Ltd. pump oil) Fill fuel tank with clean petrol... -
Page 9: During Work
® HUGH CRANE (Cleaning Equipment) Ltd – COMMANDO 4000 Page 9 DURING WORK: ® Do not leave the COMMANDO 4000 idling as re-circulating water heats up rapidly and will eventually boil causing severe damage to the pump. Should any vibration, fluctuation of pressure or any other abnormal symptoms occur during operation, this should be investigated immediately. -
Page 10: Regular Maintenance
® HUGH CRANE (Cleaning Equipment) Ltd – COMMANDO 4000 Page 10 REGULAR MAINTENANCE CHECK LIST ENGINE: Refer to the Honda Daily First 20 Instruction Book hours hours hours hours Oil level Oil Change Check air cleaner Clean air cleaner Replace air cleaner... -
Page 11: Service Item
® HUGH CRANE (Cleaning Equipment) Ltd – COMMANDO 4000 Page 11 TRAILER SERVICE CHECK LIST SERVICE ITEM FIRST 100 MILES EVERY 1000 MILES EVERY 3000 MILES (MONTHLY) (3 MONTHLY) Tyres Wheel nuts Coupling Bolts Coupling Lubrication Jockey Wheel Bolts Jockey Wheel... -
Page 12: Frost Protection
® HUGH CRANE (Cleaning Equipment) Ltd – COMMANDO 4000 Page 12 FROST PROTECTION It is essential to protect the unit from damage by frost. The following instructions will be adequate to protect the unit to temperatures down to - 5°C. During winter months it is strongly recommended to store the unit inside whenever possible. - Page 13 ® HUGH CRANE (Cleaning Equipment) Ltd – COMMANDO 4000 Page 13 REPLACEABLE ITEMS LIST See the following illustrations for reference numbers Ref. Description Part Number PUMP MC 20/20S HC52011 GEARBOX RM122 1” HC52012 HONDA GX390 ENGINE HC01602 RAB MOUNTS HCOB/024 ADAPTER 3/8”...
- Page 14 ® HUGH CRANE (Cleaning Equipment) Ltd – COMMANDO 4000 Page 14...
- Page 15 ® HUGH CRANE (Cleaning Equipment) Ltd – COMMANDO 4000 Page 15...
-
Page 16: Troubleshooting
® HUGH CRANE (Cleaning Equipment) Ltd – COMMANDO 4000 Page 16 TROUBLE SHOOTING CAUSE ACTION FAULT 1. Knocking noise from Water starvation. Ensure that there is sufficient water supply. pump. Check suction tank level or pressurised. Pump sucking in air. - Page 17 ® HUGH CRANE (Cleaning Equipment) Ltd – COMMANDO 4000 Page 17 MANUFACTURERS’ LITERATURE UDOR MC20/20 PUMP...
- Page 18 ® HUGH CRANE (Cleaning Equipment) Ltd – COMMANDO 4000 Page 18...
-
Page 19: Manufacturers' Literature
® HUGH CRANE (Cleaning Equipment) Ltd – COMMANDO 4000 Page 19 MANUFACTURERS’ LITERATURE UDOR RM122 GEARBOX... - Page 20 ® HUGH CRANE (Cleaning Equipment) Ltd – COMMANDO 4000 Page 20...
- Page 21 ® HUGH CRANE (Cleaning Equipment) Ltd – COMMANDO 4000 Page 21 MANUFACTURERS’ LITERATURE HONDA GX390 ENGINE...
- Page 22 ® HUGH CRANE (Cleaning Equipment) Ltd – COMMANDO 4000 Page 22...
