User Manual
Model:YX-700
Alarm System

Advertisement

Table of Contents
loading

Summary of Contents for YISEELE YX-700

  • Page 1 User Manual Model:YX-700 Alarm System...

  • Page 2: Table Of Contents

    Contents Preface ............................2 1. Parts ............................4 1.1 HUB .............................4 1.2 Remote Control ........................4 1.3 Door/Window Detector .....................5 2. Connect to the Wi-Fi ........................6 2.1 The first type: Bluetooth Connection ................6 2.2 The second type: Hotspot connection method ............6 3. Installation steps ........................9 4.

  • Page 3: Preface

    Preface: First of all, thank you for choosing our wireless intelligent security burglar alarm system! This wireless intelligent security burglar alarm system will provide round-the- clock protection for your house and property all year. The reliable wireless electronic burglar alarm uses the most advanced Israel digital security technology with a low false alarm rate.

  • Page 4: Parts

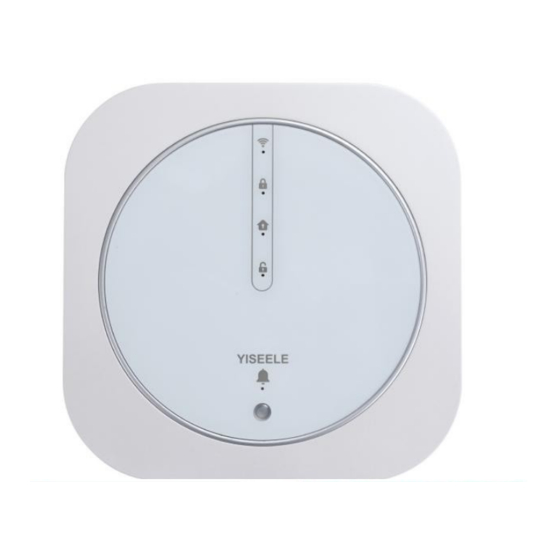

    1. Parts 1.1 HUB...

  • Page 5: Remote Control

    1.2 Remote Control 1.3 Door/Window Detector:...

  • Page 6: Connect To The Wi-Fi

    2. Connect to the Wi-Fi (Choose one of the following methods) 2.1 The first type: Bluetooth Connection You can search "YISEELE Smart Alarm System (English) - How to connect Wi-Fi to APP" on YouTube to view the connection video). Step 1: Adjust the Wi-Fi indicator light to blinking state;...

  • Page 7: The Second Type: Hotspot Connection Method

    and wait for the connection to succeed. 2.2 The second type: Hotspot connection method When your mobile phone does not have Bluetooth function, or the connection interface cannot automatically pop up, please use this method . Step 1: Adjust the Wi-Fi indicator light to blinking (Method: Press and hold the reset button until the HUB displays a "prompt tone"...

  • Page 9: Installation Steps

    3. Installation steps Step 1: Plug in the power, and insert the wired siren and turn on the switch YX-700 is not equipped with wired siren, need to purchase separately ; Step 2: Refer to “Connect to the Wi-Fi”. Connect the alarm system to Wi-Fi. After the connection is successful, the Wi-Fi Indicator is always on.
  • Page 10 1) . Open the back of the door/window detector, and then turn on the switch on the HUB (switch to the "ON"); 2) . Paste the double-side adhesive tape to the wireless transmitter and magnetic block. 3) . According to the mounting diagram, mount the door/window detector on the position of the door, window, counter, safe box or drawer, etc.
  • Page 11 The wireless transmitter is mounted on wireless transmitter the door frame and the magnetic block mounted on the window frame and is mounted on the door. In this way, the magnetic block is mounted on when the user opens the door, the door the window.

  • Page 12: Add

    4. Add 4.1 Add Detector and Remote control: Enter the control interface of the alarm system, select "Accessories", and click the upper right corner "+", enter the countdown and then trigger the detector or the remote control (the indicator light is on, indicating that the trigger is successful), the addition is successful.

  • Page 13: App Menu Explanation

    5. APP menu explanation First-level Second-level Three-level Features Menu Menu menu Including detectors, remote controls and other Accessories accessories are edited in this category. Detectors include Door/window detector, Motion Detectors, smoke Detectors, water Detectors, Detector emergency buttons, etc. One alarm system can add up to 100 Detectors.
  • Page 14 Turn on/off the alarm light on the panel of the HUB. After it is turned on, when the alarm system Alarm sounds an alarm, the red indicator light on the indicator panel of the HUB will flash. Turn on/off push messages for arming/disarming the alarm system.

  • Page 15: Maintenance And Troubleshooting

    6. Maintenance and Troubleshooting  Keep this product and accessories out of children's reach.  Keep the product and accessories dry. Rainwater, moisture and liquids are likely to contain minerals that will corrode electronic circuits.  Do not use or store the system in dusty or dirty places, other wise it may damage the electronic components.

  • Page 16: Appendix Of Technical Parameters

    b) .Reset the hub and try it again. 7. Appendix of Technical Parameters: 7.1 Hub: Backup Battery Power Supply Consumption Siren Output Micro USB 110/220VAC 3.7V, 500mAh Rechar- <55mA@normal <500mA to 5V, 1000mA geable Battery Operation WiFi Standard Radio Frequency Alarm loudness Temperatur 2.4GHz...
  • Page 17 FCC Warning radiate radio frequency energy and, if not installed and used in accordance This device complies with part 15 of the with instructions, cause FCC Rules. Operation is subject to the harmful interference radio following two conditions:(1) This device communications.
  • Page 18 Consult the dealer or an experienced radio/TV technician for help. FCC RF exposure statement: The equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance between 20cm the radiator your body.
