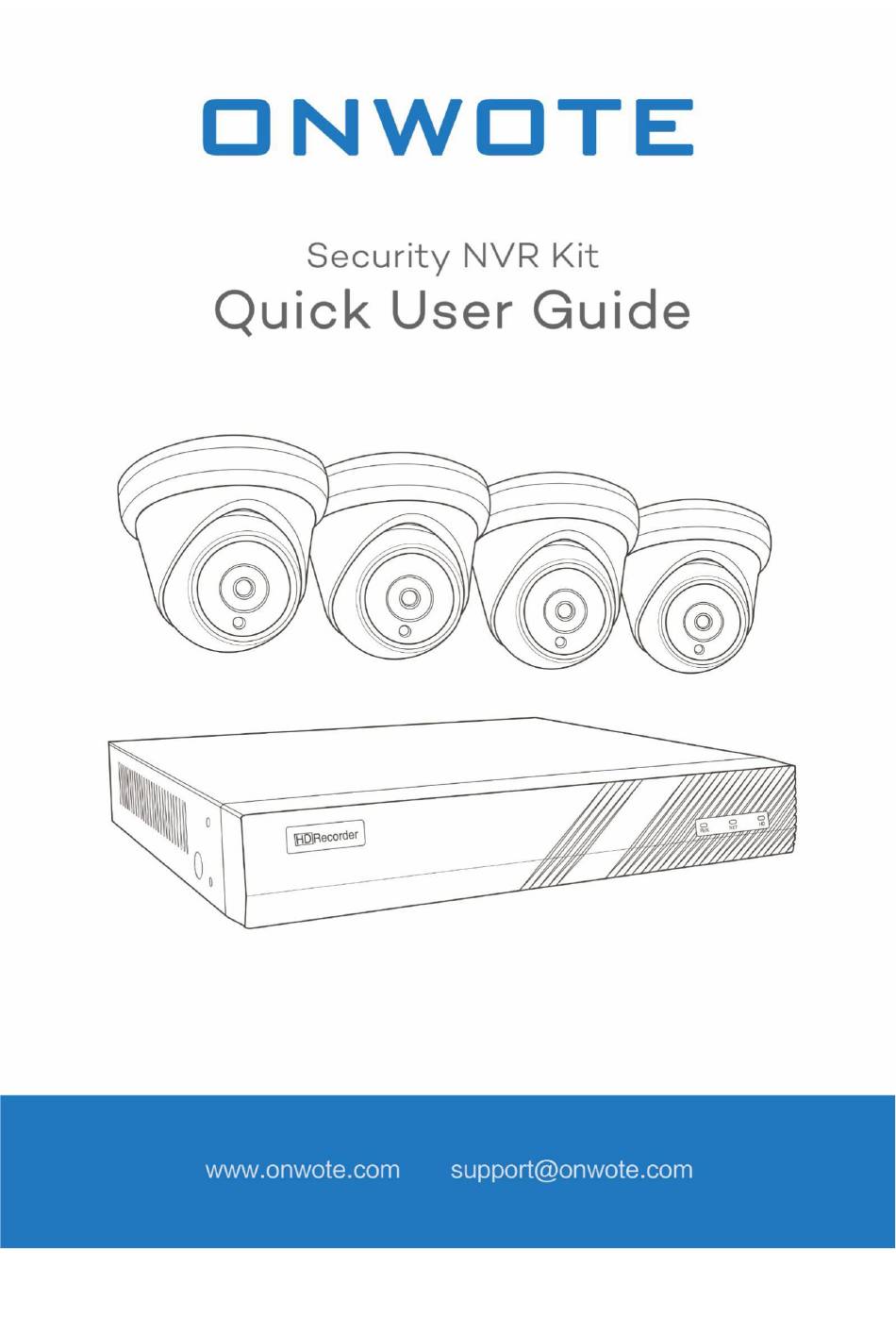

ONWOTE Security NVR Kit Quick User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Security NVR Kit and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ONWOTE Security NVR Kit

Summary of Contents for ONWOTE Security NVR Kit

  • Page 2: Table Of Contents

    1. Safety Caution 2. NVR Connection Diagram 3. Wizard Setup 4. Play Audio & Name Camera How to Play Audio Name Your Cameras 5. Access System Using Mobile Device 6. Access System Using PC Client Software 7. Access System Using Internet Explorer 8.

  • Page 3: Safety Caution

    Safety Caution  Please read this user manual carefully to ensure that you can use the device correctly and safely. This manual is suitable for many models.  All examples and pictures used in the manual are from one of the models for reference purpose. ...

  • Page 4: Nvr Connection Diagram

    Hook up a monitor to the NVR to setup the system. (For audio system, the NVR comes with HDMI port to output audio, hook a HD TV or HDMI monitor with speaker) 8 Channel NVR Back Panel: 16 Channel NVR Back Panel:...

  • Page 5: Wizard Setup

    Wizard Setup 1. Select language. 2. Login system with default account (User name: admin Password: 123456). Tips: To prevent your system from being hacked, please set up a new password for system include letters, numbers and symbols.
  • Page 6 3. Set a Pattern to unlock your system (skip if you don’t need). 4. Click Next to setup time zone. 5. TCP/IP setup (network configuration). Please check in Enable DHCP.

  • Page 7: Play Audio & Name Camera

    1. If your monitor does not come with a speaker, or does not support audio input via HDMI, it may fail to output audio. 2. Some ONWOTE cameras do not support audio. Name Your Cameras Click on the channel to select camera, click OSD to edit camera name.

  • Page 8: Access System Using Mobile Device

    Please make sure connected NVR to the router directly with an Ethernet cable to get internet. 1. Download “Guard Viewer” on your mobile phone from Apple App Store or Google play. You can also scan the QR code below to download the mobile app. Guard Viewer For iPhone For Android...
  • Page 9 7. Set a password for your account and check in I have read and agree to<<Service Agreement>>. Click Sign Up to register account. 8. Click on the top left and choose Devices...
  • Page 10 9. Click +Add and Scan to scan the QR code on the NVR monitor (Right click on NVR monitor and choose Menu--> Network--> Basic--> P2P to get the QR code). 10. Type in a name for your device and click Start Live View on the bottom to view live video.
  • Page 11 11. Select one camera and click to enable audio 12. Select one channel and rotate the phone to horizontal orientation to view video in full screen (Turn off the portrait orientation lock of your phone.). -->-->--> 13. Click Playback on the bottom of the page to playback video.

  • Page 12: Access System Using Pc Client Software

    Please download the PC client software at:  For Windows PC: http://www.onwote.com/download.php?id=48  For MAC: http://www.onwote.com/download.php?id=47 Download the PC client software on Windows PC or MAC, install Guard Station. Tips: If your MAC doesn’t allow to install the software, go to System Preference, choose...
  • Page 13 Windows PC a. Launch Guard Station and login (User name: admin Password: 123456), go to Control Panel. Click Device Management to add device b. Click Cloud Device and Register to register a cloud account (If you’ve already registered an account on your mobile app- Guard Viewer, login with that account directly).
  • Page 14 c. Type in user name, password, email address and the verification code, click Sign up to sign up an account. d. Click +Add Device to add device.
  • Page 15 e. Input the Register Code and set a name for your device. Click Add to add device. (How to get Register Code? - Right click on NVR monitor, choose Menu-> Network-> Basic-> P2P to get the register code) f. Go back to your PC client software- Guard Station, login with the account you registered. g.
  • Page 16 For audio cameras, move mouse to the channel to show up menu, click to play audio.
  • Page 17 MAC PC a. Launch Guard Station, login with default account. User name: admin Password: 123456) b. Click Device Management to add device c. Click Cloud Device and Register to register a cloud account (If you’ve already registered an account on your mobile app- Guard Viewer, login with that account directly).
  • Page 18 d. Type in user name, password, email address and the verification code, click Sign up to sign up an account. e. Click +Add Device to add device. f. Input the Register Code and set a name for your device. Click Add. (How to get Register Code? -Right click on NVR monitor, choose Menu->...
  • Page 19 g. Go back to your PC client software- Guard Station, login with the account you registered. h. Click Menu on the top left and choose Live View...
  • Page 20 i. Double click device to view live video. For audio cameras, move mouse to the channel to show up menu, click , uncheck Silent to play audio.

  • Page 21: Access System Using Internet Explorer

    1. Find the Register Code of your device: Right click on NVR monitor--> Menu--> Network- -> P2P. 2. Type www.star4live.com in your IE browser bar. 3. Login with the account you registered on mobile app- Guard Viewer or PC client software- Guard Station.
  • Page 22 4. Download web plugin, close your browser, install the web plugin. 5. Go back to www.star4live.com and login again. Click Access to go to the live view page. 6. Download another web plugin and refresh the page.

  • Page 23: Recording Setup

    7. Drag cameras one by one to the windows on the right to view video Set Motion Area 1. Right click on NVR monitor, choose Menu--> Alarm--> Motion. 2. Select a camera and click Clear All, press the left button of mouse, drag on the image to select motion areas.

  • Page 24: Normal Recording

    3. Click Apply to save changes. Right click mouse on NVR monitor, choose Menu-> Storage-> Recording to set up recording. a) Normal Recording (24*7 Full Time Recording + Motion Recording) The default record mode. Record continuously, but highlight the motion detection records in a different color.

  • Page 25: Scheduled Recording

    c) Scheduled Recording 1. Click Edit on the right side. 2. Select a day. 3. Uncheck All Day. 4. Manually set time period, choose recording mode for each time period. 5. Click OK to save changes.

  • Page 26: Video Playback

    a) Playback on NVR Right click on NVR monitor, choose Playback. Select cameras and date, change HD to SD (lower right corner) to view more cameras simultaneously. Click the to playback. b) Playback via IE Browser (IE: Internet Explorer, Microsoft Edge doesn’t work) Type www.star4live.com in IE browser bar.
  • Page 27 c) Playback via PC client software- Guard Station 1. Open PC client software, go to Control Panel and click Playback. 2. Select Recording Playback mode (default is Normal Recording Playback). 3. Check in device and select date, click Search to playback.

  • Page 28: Video Backup

    Attention: Use “VLC” player to play backup files. a) Backup on NVR 1. Insert a USB disk into the NVR USB port. Right click mouse on NVR monitor, choose Menu--> Backup; select camera, date and time, then click Search.
  • Page 29 2. Then a window will pop up, click Backup to continue. 3. Choose USB disk, select a folder, click Backup to back up video.
  • Page 30 b) Backup via IE browser (IE: Internet Explorer, Microsoft Edge doesn’t work) Run Internet Explorer as administrator. 2. Type www.star4live.com in your IE browser bar. 3. Login in with your account. Tips: If you haven’t registered an account, click Sign up, follow the Step-c to Step-e on page 13 to register an account and add device) 4.
  • Page 31 c) Backup via PC Software- Guard Station 1. Open PC client software, go to Control Panel and click Playback. 2. Click on the lower left corner.
  • Page 32 3. Click on By File, check in device, select time and click on Search. 4. Select files and click Download to back up video.
  • Page 33 5. Click on on the lower left corner to check the downloading process. 6. Click on to open the folder and find the files you downloaded.

  • Page 34: Mobile App & E-Mail Notification

    Mobile App alarm 1. Open mobile App- Guard Viewer, click , choose Alarm Notifications, turn on Allow Notification. Set Alarm Schedule for App Alerts (default is 24*7 for all the cameras, all type of alerts)  Click on Advanced Settings--> Channel to select camera. ...
  • Page 35 3. Turn on Allow Notifications in the settings of your mobile phone. a. iPhone: Settings--> Notifications--> Allow Notifications.
  • Page 36 b. Android phone: Settings--> Notifications--> Allow Notifications. E-mail Notification 1. Right click on NVR monitor, choose Menu--> Network--> Basic--> Email. 2. Type in the sender and recipient information and click Apply.
  • Page 37 (The information on the picture above is just an example) 3. Click Test to verify the email settings. (please check with your email supplier if you have troubles in email SMTP configuration) Set Alarm Schedule for Email Alert (default is 24*7 full time). Click behind Arming Schedule;...
  • Page 38 5. Click Alarm--> Motion, select camera and click behind Trigger Actions. 6. Check in Send Email, click Apply and OK. Tips: You just enabled Send Email for the selected camera, please select other cameras and do the same steps to enable Send Email for them.

  • Page 39: Human Body Detection Alter & Record

    Attention: Some ONWOTE camera systems do not support Human Body Detection. Enable Human Body Detection 1. Right click on the NVR monitor, choose Menu Alarm Human Body Detection. Select --> --> a camera and check in Enable. 2. Please select other cameras and do the same steps to enable Human Detection for them.
  • Page 40 (The information on the picture above is just an example) 2. Click Test to verify the email settings. (please check with your email supplier if you have troubles in email SMTP configuration) Set Alarm Schedule for Email Alert (default is 24*7 full time) 4.
  • Page 41 5. Click on Alarm--> Human Body detection, select a camera and click behind Trigger Actions. 6. Check in Send Email, click Apply and OK. Tips: You just enabled Send Email for the selected camera, please select other cameras and do the same steps to enable Send Email for them. Enable Mobile App Alarm &...
  • Page 42 Human Body Detection Record 1. Right click on NVR monitor, choose Menu--> Alarm--> Human Body Detection. Select camera and click behind Trigger Actions. 2. Click Recording, select specific cameras to start recording when human body detected by the camera. 3. Click Apply and OK to save the changes. 4.

  • Page 43: Reset Password

    1. Click Forget Password 2. Take a photo of the page and email it to support@onwote.com to get security code to reset your password.
